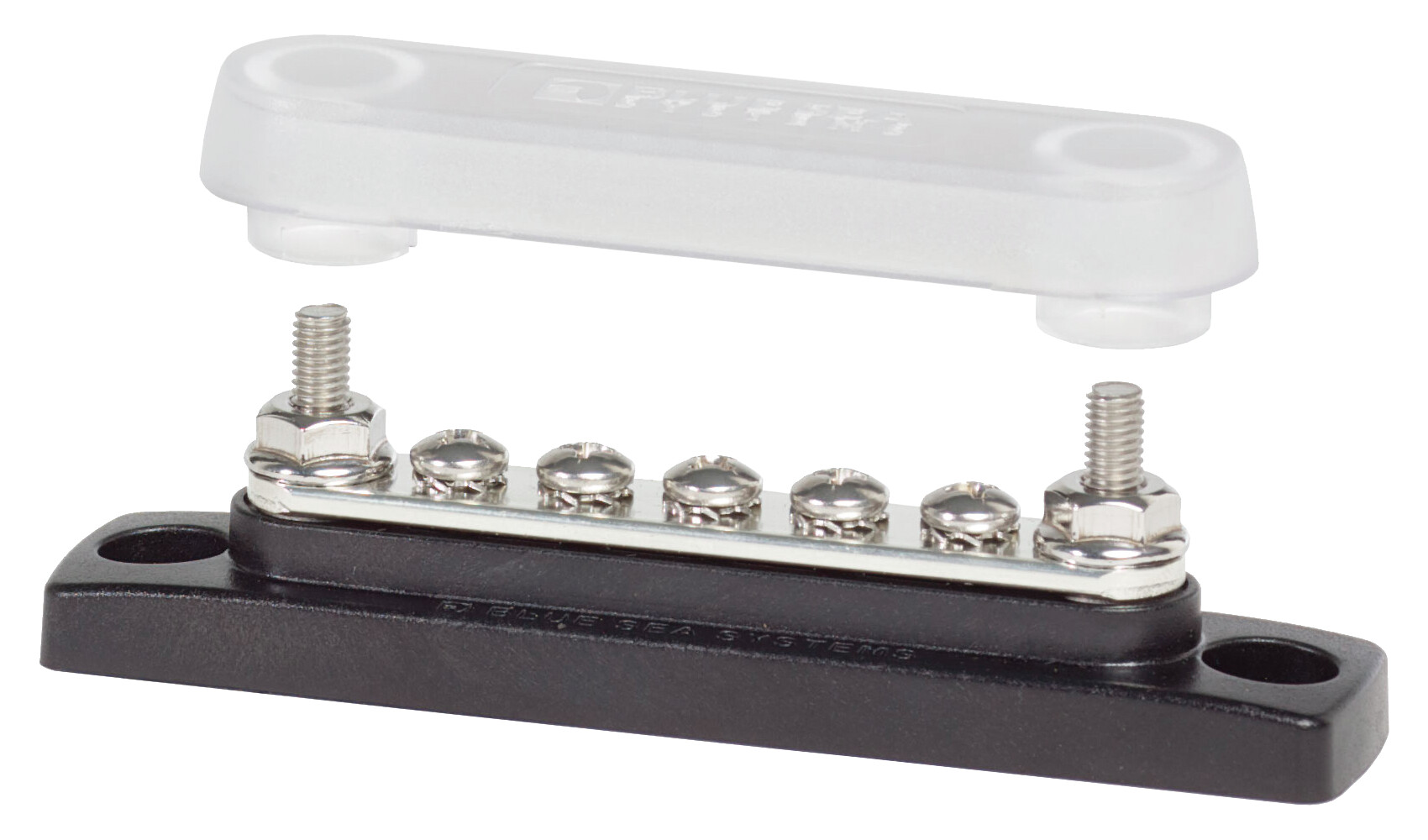

Features:
• 5 screw terminals (#8-32 screws)
• 2 threaded studs (#10-32)
• Continuous current rating: 100A
• Maximum operating voltage: 300V AC / 48V DC
• Durable body material: fiberglass reinforced thermoplastic (UL 94-V0)
• Busbar material: Tin-plated copper (CDA 110 / UNS11000)
• Transparent cover: impact-resistant polycarbonate
• Screw terminal torque recommendation: 1.69 Nm (15 in-lb)
• Thread stud torque recommendation: 2.03 Nm (18 in-lb)

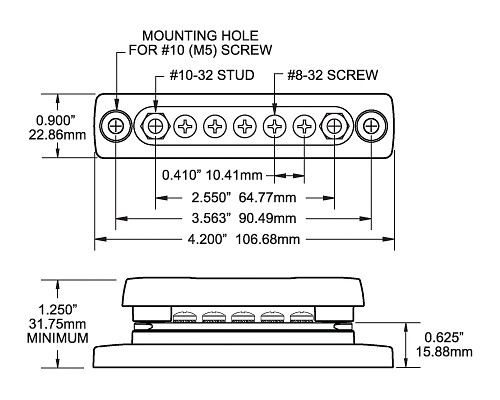

| Dimensijas | 107 × 23 mm |
|---|---|
| Technical name | 2314-BSS |
