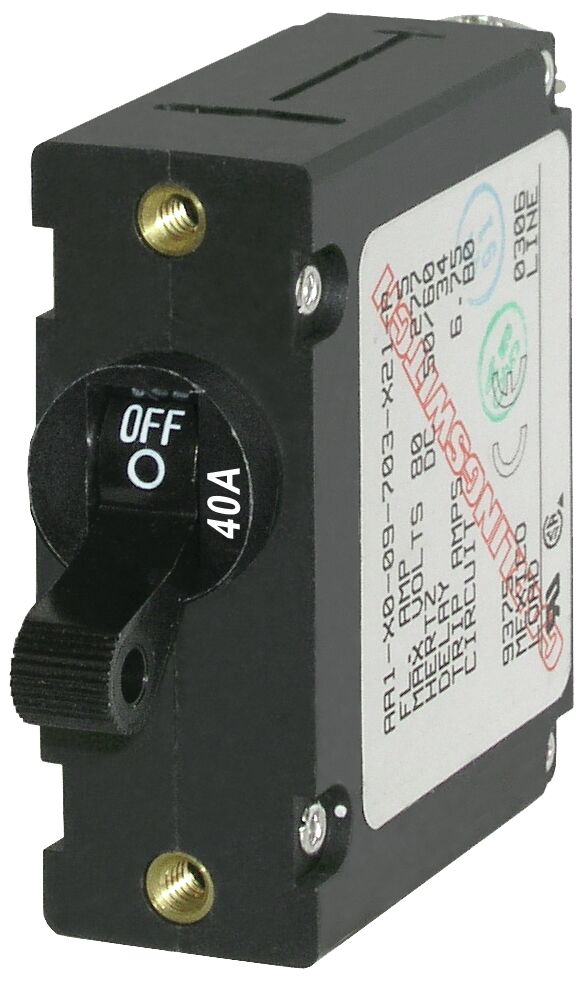

A-SERIES AUTOMATIC FUSE 1-POLE 40A BLACK
23,23 €
• Meets ABYC (American Boat and Yacht Council) standards
• Industry standard circuit breaker for Blue Sea Systems electrical panels
• Switching and circuit protection in one device
• ‘Trip Free’ implementation, prevents holding in ‘ON’ state during fault current conditions
TECHNICAL DATA:
Current rating: 40A AC | 40A DC
Color: Black
Actuator type: Lever
Number of poles: 1
Maximum voltage: 240V AC | 65V DC
Circuit breaker type: Magnetic/hydraulic – trip-free
Breaking capacity: 3000A @ 120V AC | 1500A @ 250V AC [TUV] | 3000A @ 250V AC [UL 1077] | 7500A @ 65V DC
Minimum operating temperature: -40° C
Maximum operating temperature: +85° C
Mounting screws: #6-32 RST
Mounting screw torque: 0.68 Nm
Terminal terminal fastening torque: 1.58 Nm
Number of switching cycles: 10000
Terminal screw: #10-32 RST
Weight: 0.08 kg
| Svars | 0,08 kg |
|---|---|
| Technical name | BLUE SEA 7224-BSS |
