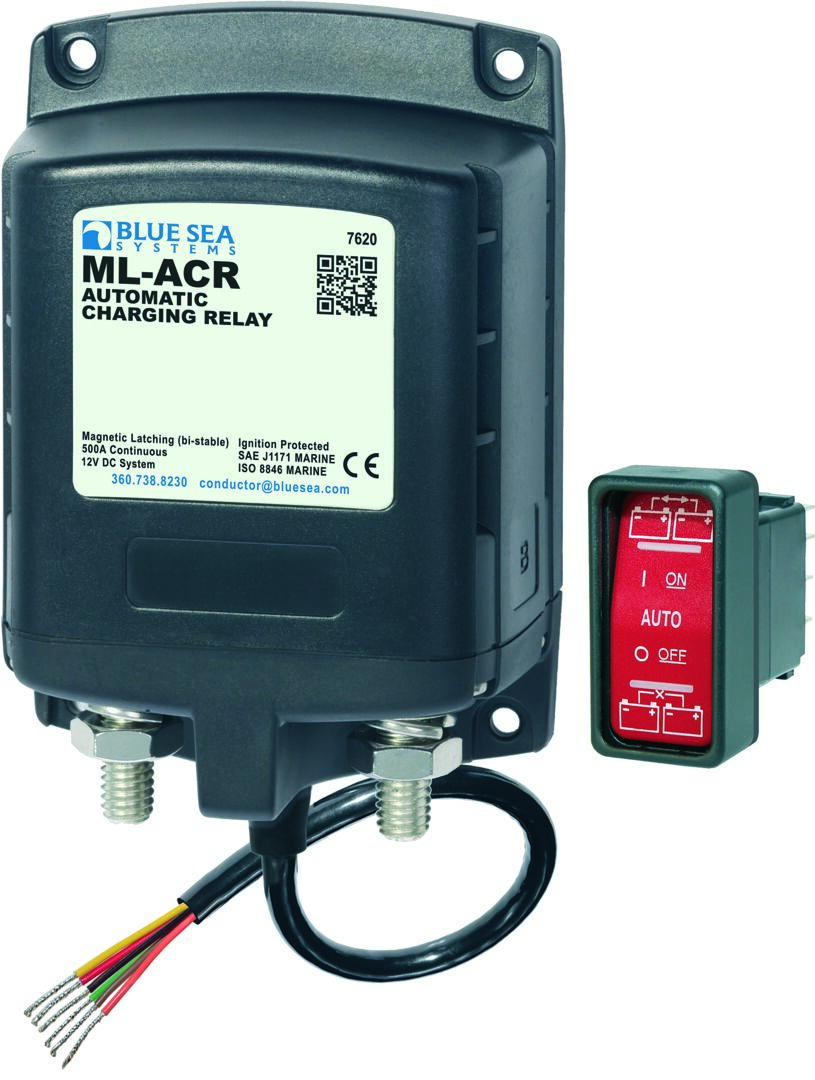

ACR CHARGING SOLENOID 500A, 12V

ML-ACR series charging relay (magnet latch). Charging currents are controlled using the solenoid principle.
The relay is controlled remotely, with a separate electrical
operating switch included. There is a manual control switch at the end of relay 7622 and 7623 in case of fault
. The relay can be programmed so that the relay does not connect the batteries during start-up
. The relay outputs an LED signal from which information about the relay status can be obtained.

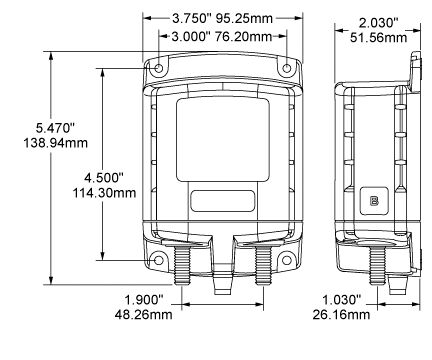

Housing dimensions: l.95 x h.139 x d.52 mm
Loads: continuous/ momentary (5min)/ breakdown load (1min)/ breakdown load (10sec).
