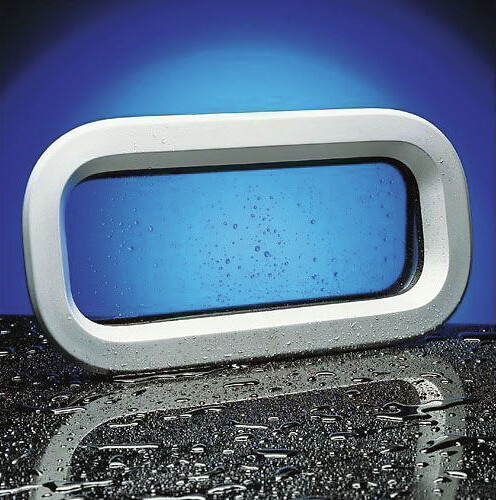

ACRYLIC GLASS FOR ATLANTIC WINDOW, SIZE 30

The window’s inner and outer frames are made of aluminum alloy, with an anodized surface for maximum corrosion resistance. The quick-release handles apply pressure evenly to the seal in the closed position. The handles will not open when shaken.

Drainage
The outer frame of the window is designed to allow water to drain away even when the window is installed on a sloping surface. This prevents water from entering the boat when the window is opened.

Friction hinges
Lewmar hinges and other moving parts are corrosion resistant.

Mosquito screen
The mosquito screen is made of nylon mesh and has a shaped frame that attaches to the outer frame of the window. It can be left in place when the window is closed. Supplied as standard.

Installation instructions
The window must be installed on a flat surface with a tolerance of +/- 1 mm. The window opens to a limited extent in very thick frames. The opening angle with a frame thickness of 21 mm is 165º.

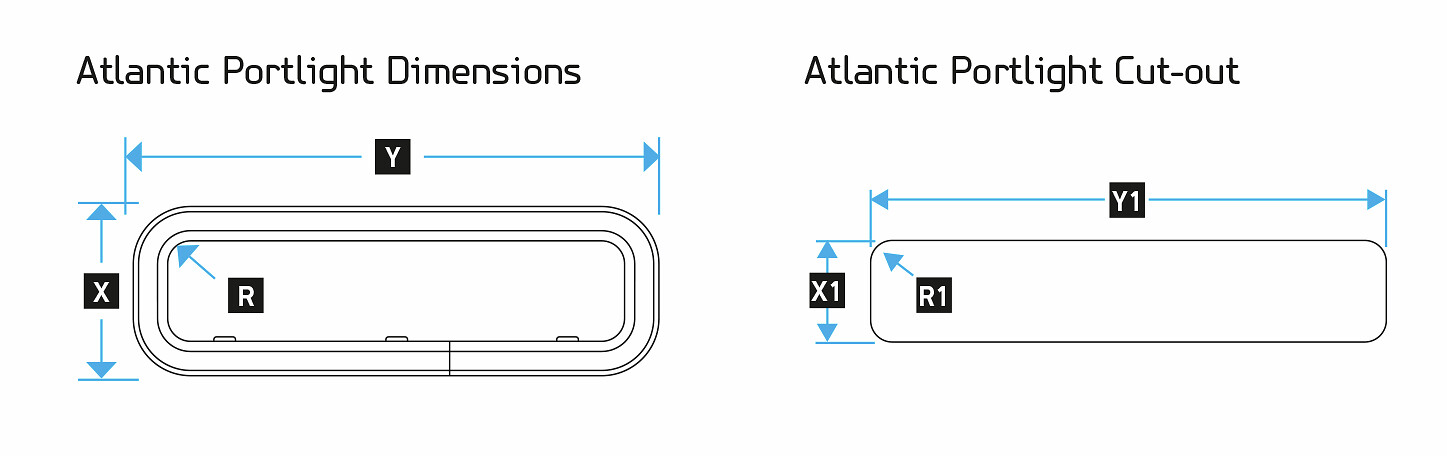

Overall dimensions: width 400 mm (X), height 200 mm (Y), depth 6 mm (Z), corner radius 71 mm (R). Dimensions of the opening to be cut: width: (X1) 380, height 180 mm (Y1), corner radius 61 mm (R1). Acrylic window thickness 8 mm.
