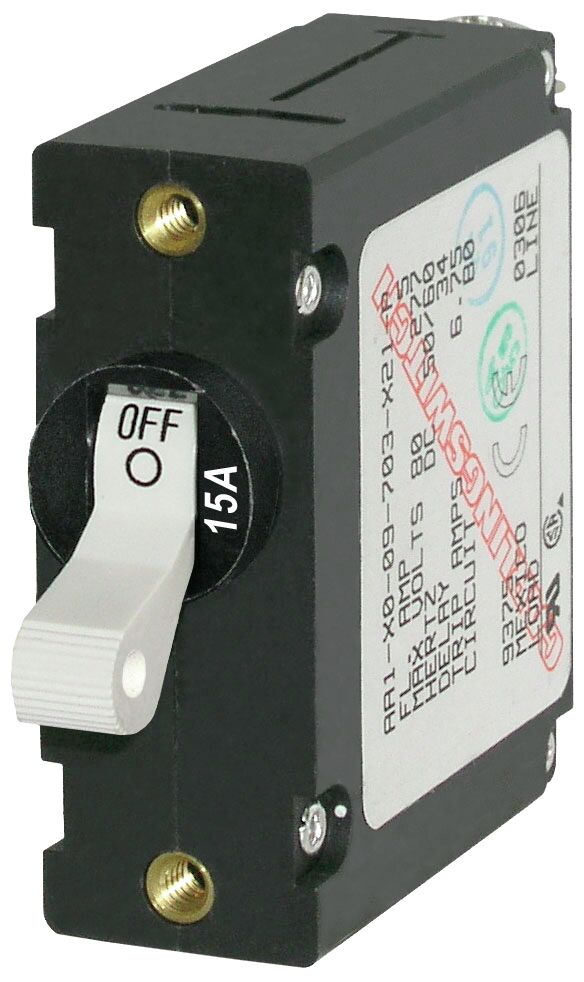

AUTOMATIC FUSE 15A WHITE
24,59 €
• Meets ABYC (American Boat and Yacht Council) standards
• Industry standard position circuit breaker for Blue Sea Systems electrical panels
• Combines switching and circuit protection in one and the same unit
• ‘Trip-free’ design that cannot remain ‘ON’ in a fault current condition
TECHNICAL DATA:
Current: 15 AAC | 15 ADC
Color: White
Actuator type: Lever
Number of poles: 1
Maximum voltage: 240 VAC | 65 VDC
Circuit Breaker Type: Magnetic Hydraulic – Trip Free
Switching Capacity:
3000A @ 120 VAC
1500A @ 240 VAC [TUV]3000A @ 240 VAC [UL 1077]7500A @ 65 VDC
Minimum Operating Temperature: -40°C
Maximum Operating Temperature: 85°C
Mounting Screw: #6-32 Stainless Steel
Mounting Screw Torque: 0.68 Nm (6 in-lb)
Terminal Terminal Screw Torque: 1.58 Nm (14 in-lb)
Number of switching cycles: 10000
Terminal screw: #10-32 stainless steel
Weight: 0.08 kg (0.17 lb)
| Svars | 0,077 kg |
|---|---|
| Technical name | 7210-BSS |
