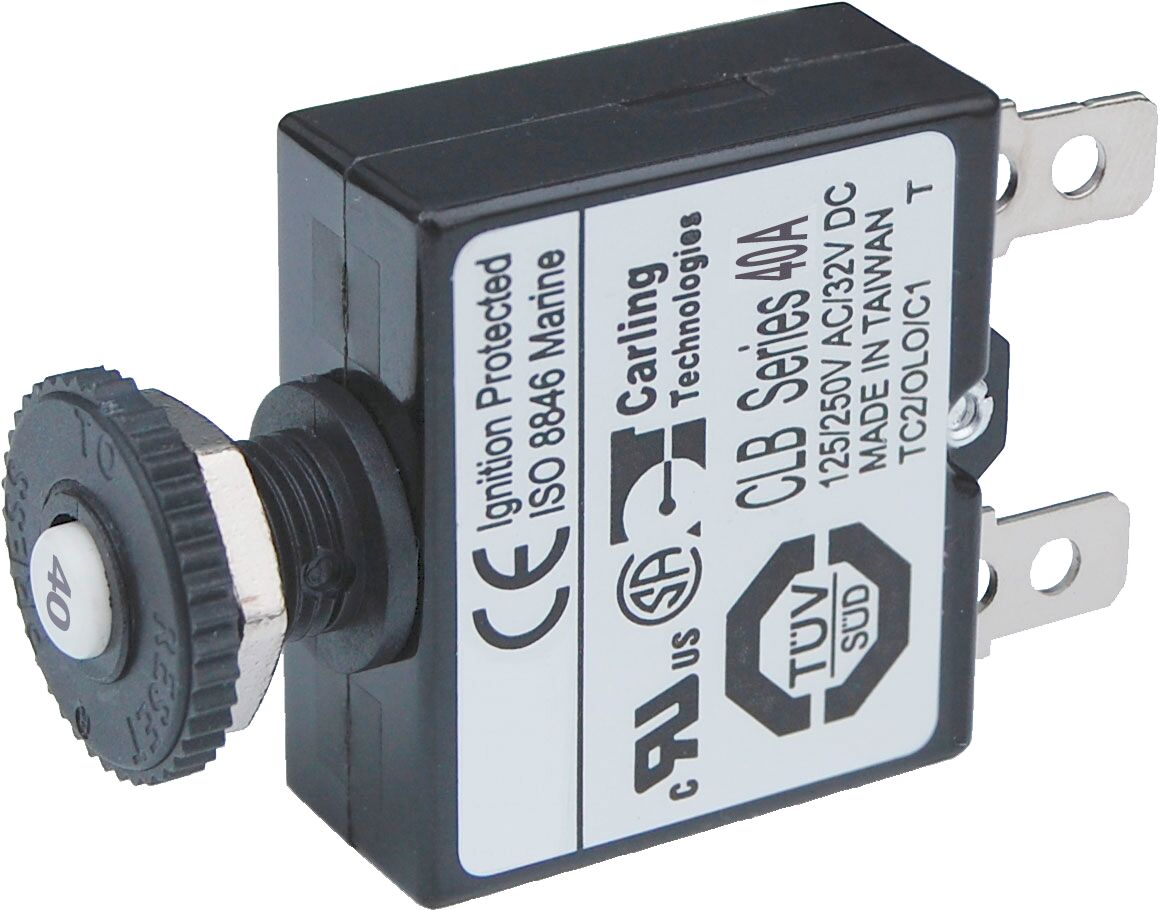

AUTOMATIC FUSE 40A
9,55 €
compact, push-button resettable circuit breaker that is ideal for protecting individual circuits and can also be used in installations requiring continuous 24-hour protection.
The circuit breaker is equipped with flat terminals and is used in Blue Sea Systems’ WeatherDeck waterproof circuit breaker panels, dual battery bank distribution panels and 360 distribution panels.
The structure is designed for tight installation, and the push-button reset mechanism is of the ‘Trip Free’ type, meaning the fuse cannot be kept on during a fault current.
The fuse is ignition protected, so it can also be installed in petrol-powered boats.
TECHNICAL DATA:
Current: 40 A
Maximum voltage: 32 V DC
Mounting: Panel mount, 3/8-27 UNS
Fuse type: Thermal circuit breaker, manual reset with push button
Connector type: 1/4′ male blade terminal
Breaking capacity:
– 3000 A @ 14.7 V
– 2500 A @ 28 V
Operating temperature (minimum): –10 °C
Operating temperature (maximum): 60 °C
Screw connection tightening torque: 6 in-lb (0.68 Nm)+M9
| Svars | 0,027 kg |
|---|---|
| Technical name | 7061-BSS |
