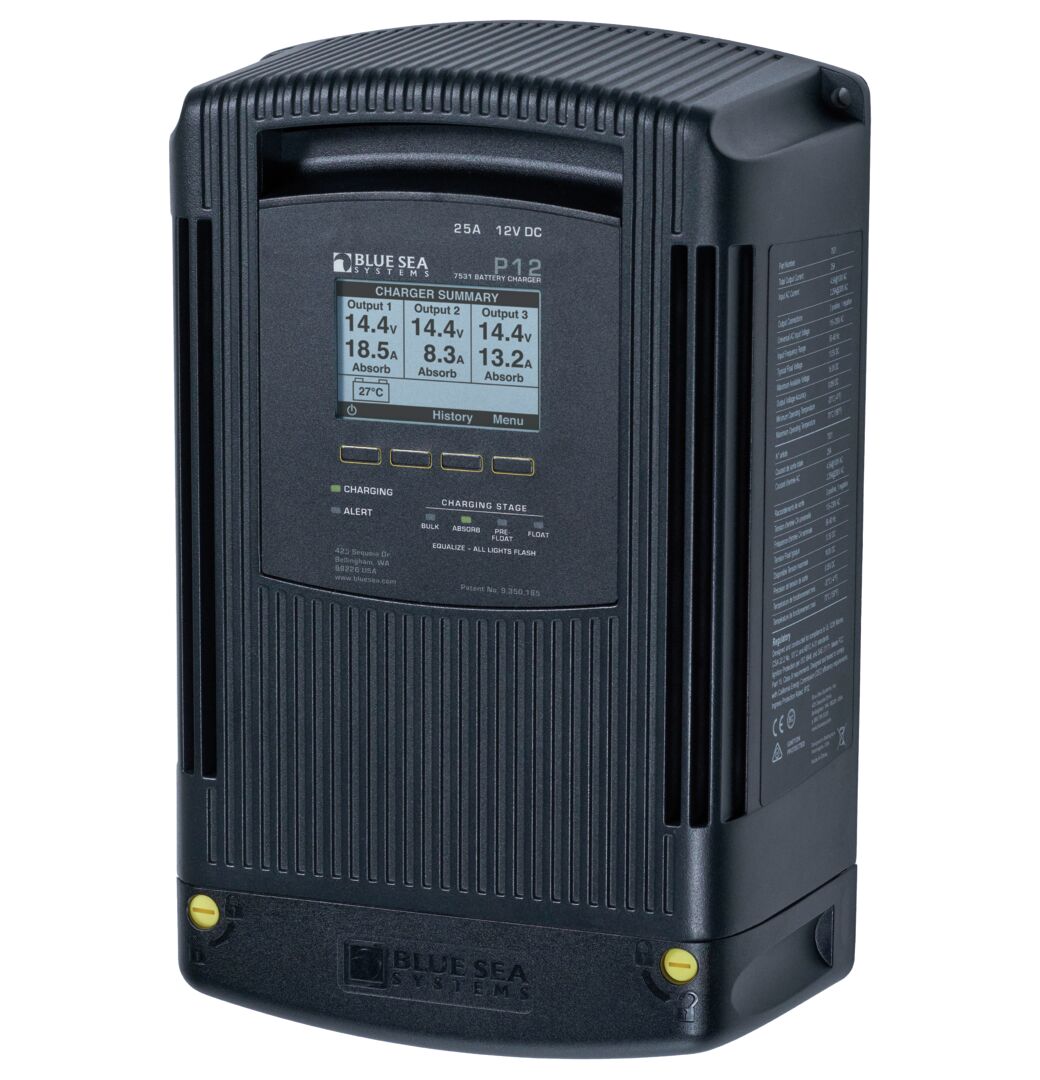

BATTERY CHARGER BLUESEA P12 25A – 12V
922,69 €
The battery charger has a 4-stage charging process and three outputs. Dry installation, suitable for use in the most demanding environments.
• Durable finned aluminum housing
• PreFloat™ charging phase prevents overcharging
• Power factor correction improves AC operation
• Intuitive diagnostic display
• User selectable charging profiles and customizable settings
• Allows charging of up to three batteries
• Large, bright display
• Multilingual menu: English, French, German, Italian, Spanish
• Charge coordination with Blue Sea Systems Automatic Charging Relays (ACR), ACR ensures appropriate float charging for each battery
• Battery temperature compensation – adjusts charging voltage to battery temperature based on
• AC over- and undervoltage conditions cause shutdown and automatic restart
• Battery over- and undertemperature protection – charging will not start if the battery temperature rises or falls below the set values
• DC overvoltage and reverse polarity protection functions
• Inrush current and short circuit protection functions
TECHNICAL DATA:
Total Output Current: 25 A
Input Current AC: 4.5 A @ 100 VAC / 2.25 A @ 200 VAC
Maximum Output Voltage: 16 VDC
Rated Voltage: 12 VDC
Start Protection: Yes
Number of Outputs: 1 Negative / 3 Positive
General Purpose AC Input Voltage Range: 115 – 230 VAC
AC Input Voltage Frequency: 45 – 65 Hz
Output Voltage Accuracy: 0.05 V
Typical Float Voltage: 13.5 VDC
Minimum operating temperature: -20°C
Maximum operating temperature: 70°C
Minimum storage temperature: -30°C
Maximum storage temperature: 80°C
Battery types: AGM Wet lead acid Gel / TPPL (Thin Plate Pure Lead)
Recommended battery capacities: 330 Ah maximum / 60 Ah minimum
| Svars | 5,9 kg |
|---|---|
| Technical name | 7531-BSS |
