BILGE PUMP VIKING COMPACT
95,44 €

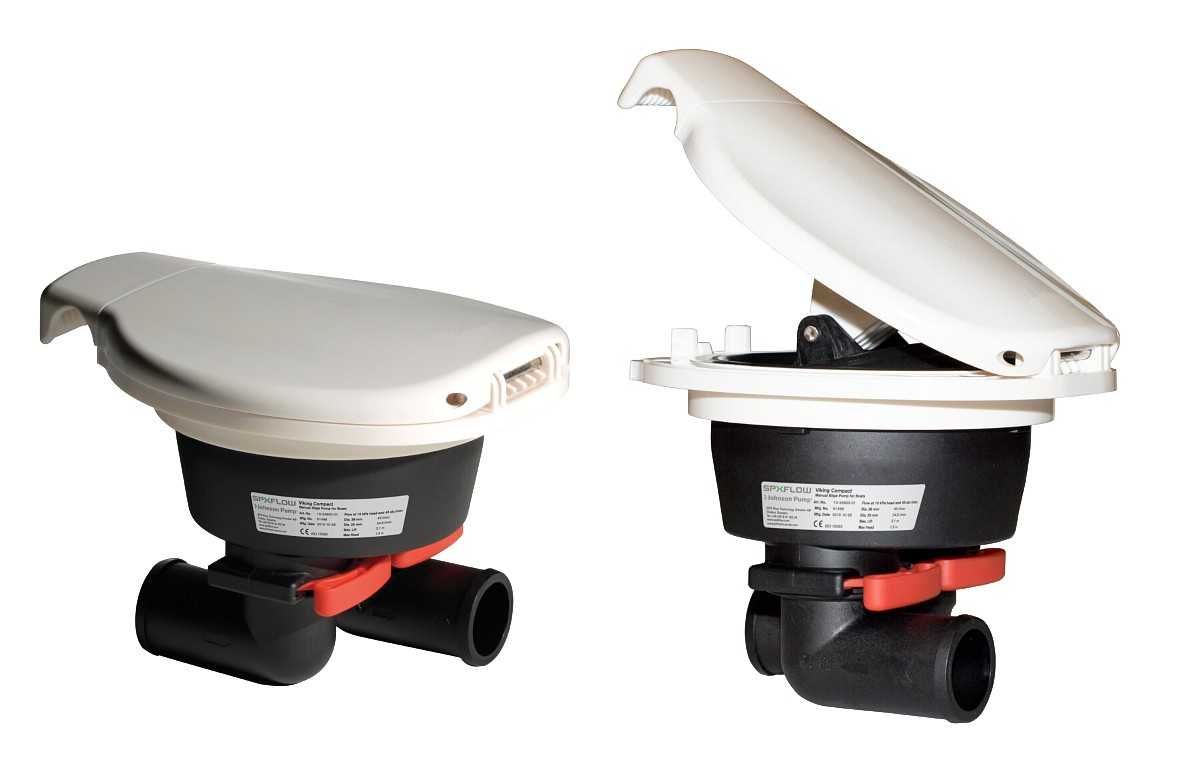

Viking Compact is a full-capacity manual bilge pump, specially designed for tight installation spaces. The single-chamber diaphragm pump combines a sturdy construction and neat design with efficient performance. Installation is easy from one side of the bulkhead – just four screws are required, and a watertight seal ensures a tight fit.
The pump body is hidden behind the bulkhead, leaving only the sturdy handle visible from the cabin or cockpit. The inlet and outlet ports can be rotated 360 degrees, and two different sizes of connectors are supplied: Ø 25 mm (1”) and Ø 38 mm (1½”). The KlickTite quick connectors supplied as standard make connecting hoses much easier.
Features:
• Flow capacity with Ø 25 mm connection 34.5 l/min (9.1 US gal/min)
• Flow capacity with Ø 38 mm connection 45 l/min (11.9 US gal/min)
• Maximum lift: 2.1 m
• Maximum pressure: 1.2 m
• Total lift height: 3.3 m
• Maximum liquid temperature: +60 °C
• KlickTite™ quick couplings for Ø 25 mm and Ø 38 mm hoses
• Easy to install on one side of the partition
• Fits into industry standard openings – even in tight spaces
• Durable handle and lid form uniform structure
• Self-priming structure ensures immediate operation
• Easy to maintain, low maintenance costs
• Tight installation with watertight seal
• Vibration-free structure
Construction and material data:
• Body: Polypropylene
• Cover: ABS plastic
• Diaphragm: Nitrile rubber
• Valves: Nitrile rubber (1 butterfly valve and 1 tricuspid valve)
• Wetted parts: Polypropylene, PA66GF30 plastic and nitrile rubber
• All metal parts made of stainless steel
• Complies with ISO 15083 -standard requirements
| Technical name | 10-24800-01 |
|---|
