Can be combined with Båtsystem ladders and consoles to maximize usability and safety. Suitable for most motorboats and for installation on top of anchor holders.
Mounted with mounting arms and two adjustable universal brackets that can be twisted and turned to fit all round, inclined and angled surfaces on the bow. Universal brackets (P1074, P1091) are used for installation on the anchor holder. This way, the strength of the anchor holder is utilized and the bow platform does not need to be attached with additional mounting arms. Straight extensions (P1010) are available as accessories if the bow platform needs to be raised or angle extensions (P1085) for vertical adjustment of the universal brackets.
Made of acid-resistant AISI316 stainless steel and high-quality teak. The product is also available in a Blackline model, which is maintenance-free and has an industrially treated laminate surface.

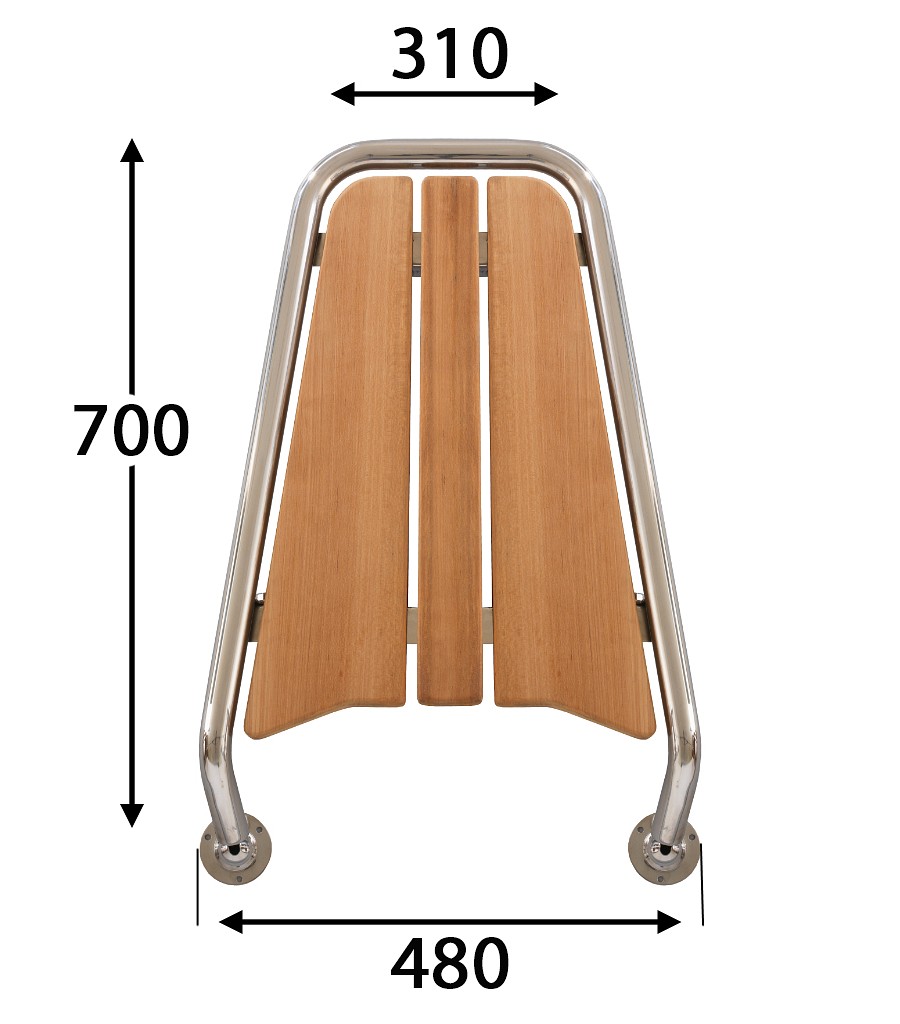

Length: 700 mm
Width: 480 mm
Height: 51 mm
Tube dimensions: 32 mm
Fixtures: Universal fasteners
Mounting on anchor holder: yes
Ladder in housing: yes
Hook ladder: yes
| Svars | 9,7 kg |
|---|---|
| Dimensijas | 700 × 480 mm |
| Technical name | MP750TE-1 |
