CABLE GLAND 8/17/47MM
37,61 €
SIDE CABLE ENTRY WITH STAINLESS STEEL COVER 0.68′

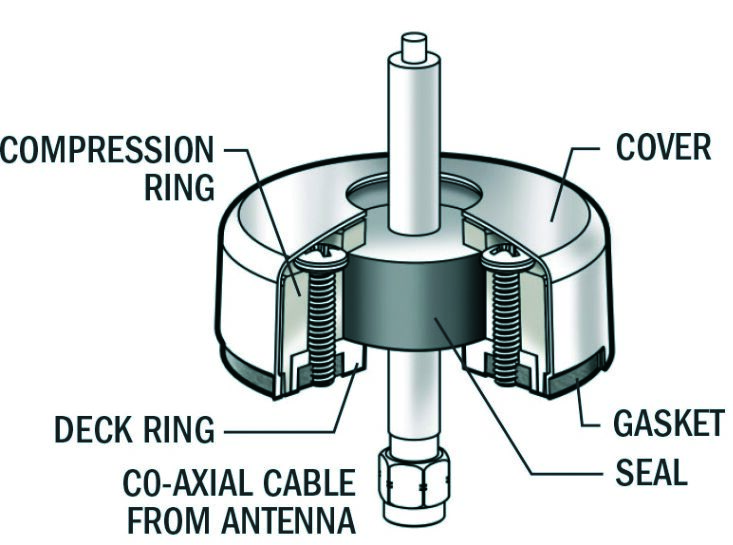

Ensures a watertight side entry for antenna cables without the need to remove factory-installed connectors on the antenna cables.

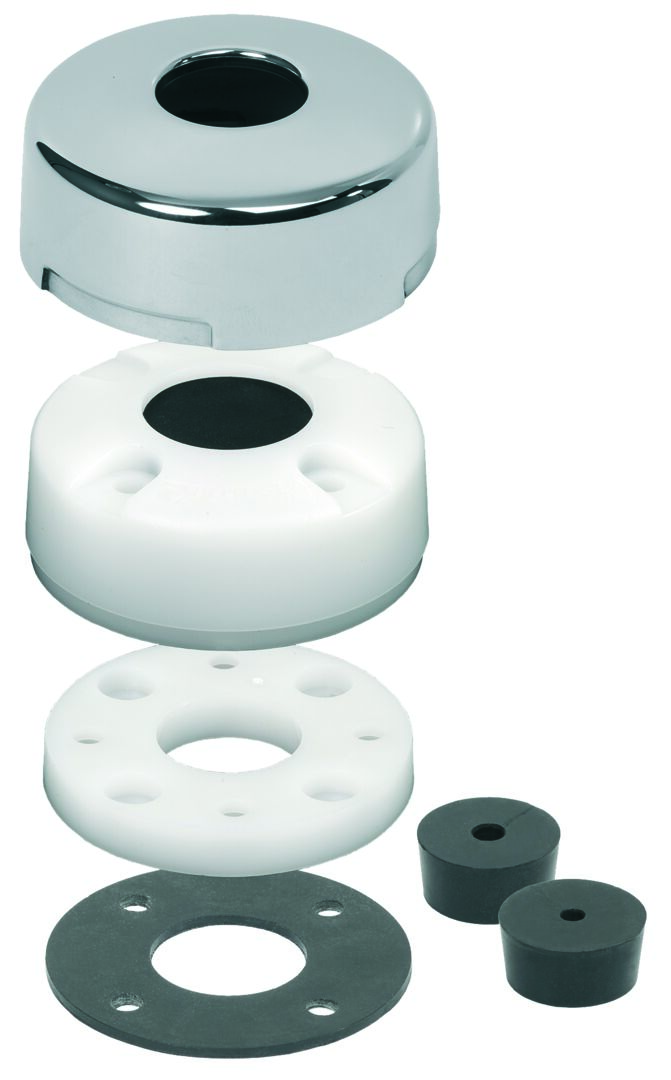

• Pre-drilled and split rubber seals ensure easy installation.
• Low profile, shaped edges reduce the risk of snagging cables
• Polished stainless steel cover covers the screw heads and protects against UV radiation
• All mounting hardware (Stainless Steel) included
• Suitable for use above the waterline only
TECHNICAL DATA
Base diameter: 47 mm
Cable diameter: 8 mm
Connector diameter: 17 mm
Protective cover material: 316 RST
Mounting hole: Fits #6 x 7/8′ screws
Ring part material: UV-stabilized thermoplastic
Sealing hole diameter: 4.19 mm (.165′) | 5.59 mm (.220′)
Sealing material: UV-stabilized Buna-N rubber
Weight: 0.2 kg (0.44 lbs)
| Svars | 0,204 kg |
|---|---|
| Technical name | 1001100-BSS |
