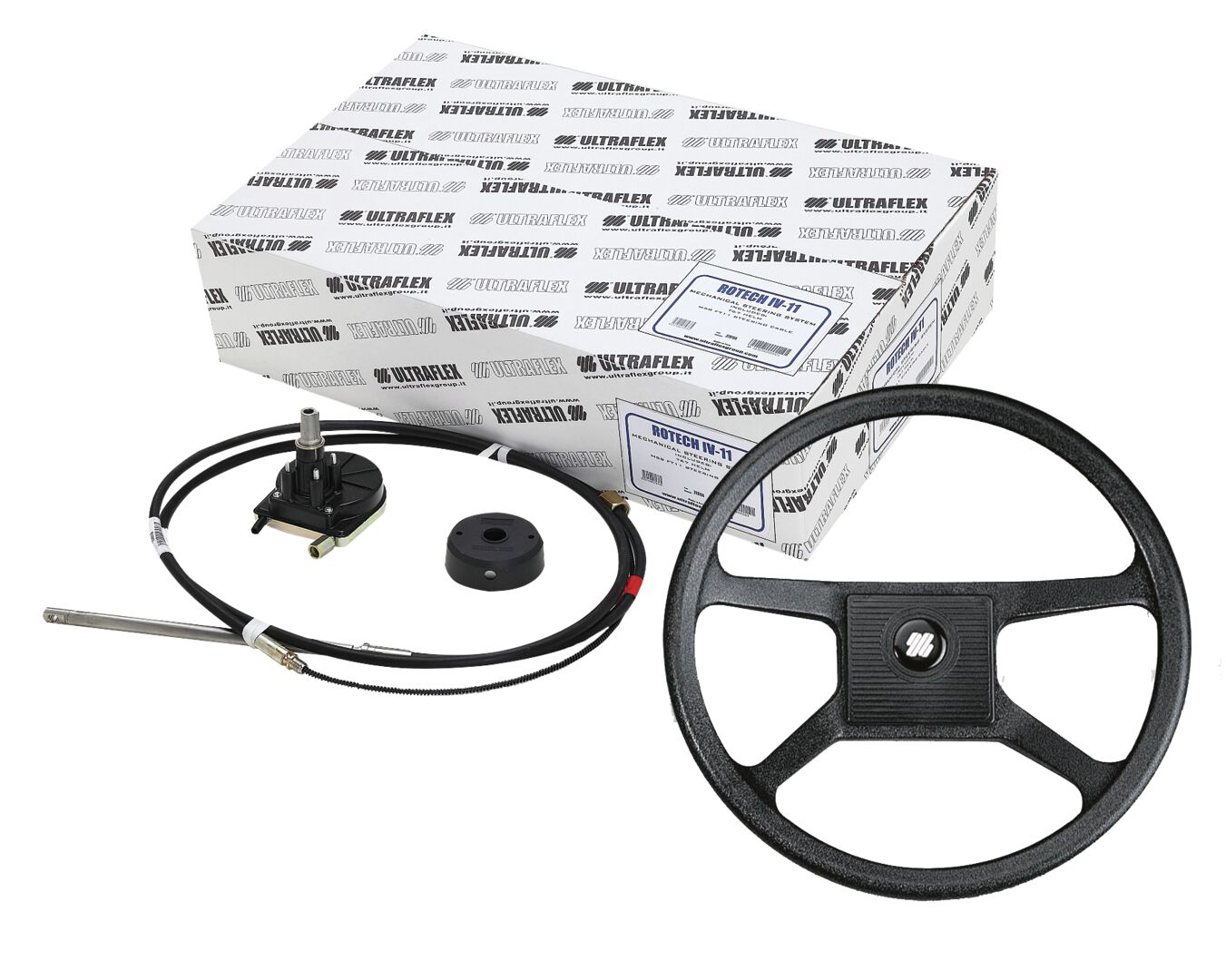

CABLE MANAGEMENT PACKAGE 12′

STEERING DRUM T67 | 9513025130

The steering housing made of impact-resistant plastic and the steering gear made of die-casting ensure precise and safe steering. The flexible multi-strand cable makes installation easier. Suitable for 2-stroke outboard motors under 55 hp and small outboard boats.

• minimum cable bending radius 200 mm
• steering wheel rotation 2.5 turns
• travel 230 mm
• thrust 120 kg, 1200 N, up to 40 kW
• steering wheel diameter max 380 mm
• EN 29775 Safety standards, Norske Veritas approved T-67 steering housing (black)

STEERING CABLE M58 | 9513025142

Flexible, multi-stranded steering cable with a minimum bending radius of 200 mm. Shell Ø 15 mm, inner cable Ø 5 mm, outer cable Ø 7.5 mm. length 3.6 m.

STEERING WHEEL V32 | 9513024047

Thermoplast plastic, black, diameter 340 mm.
