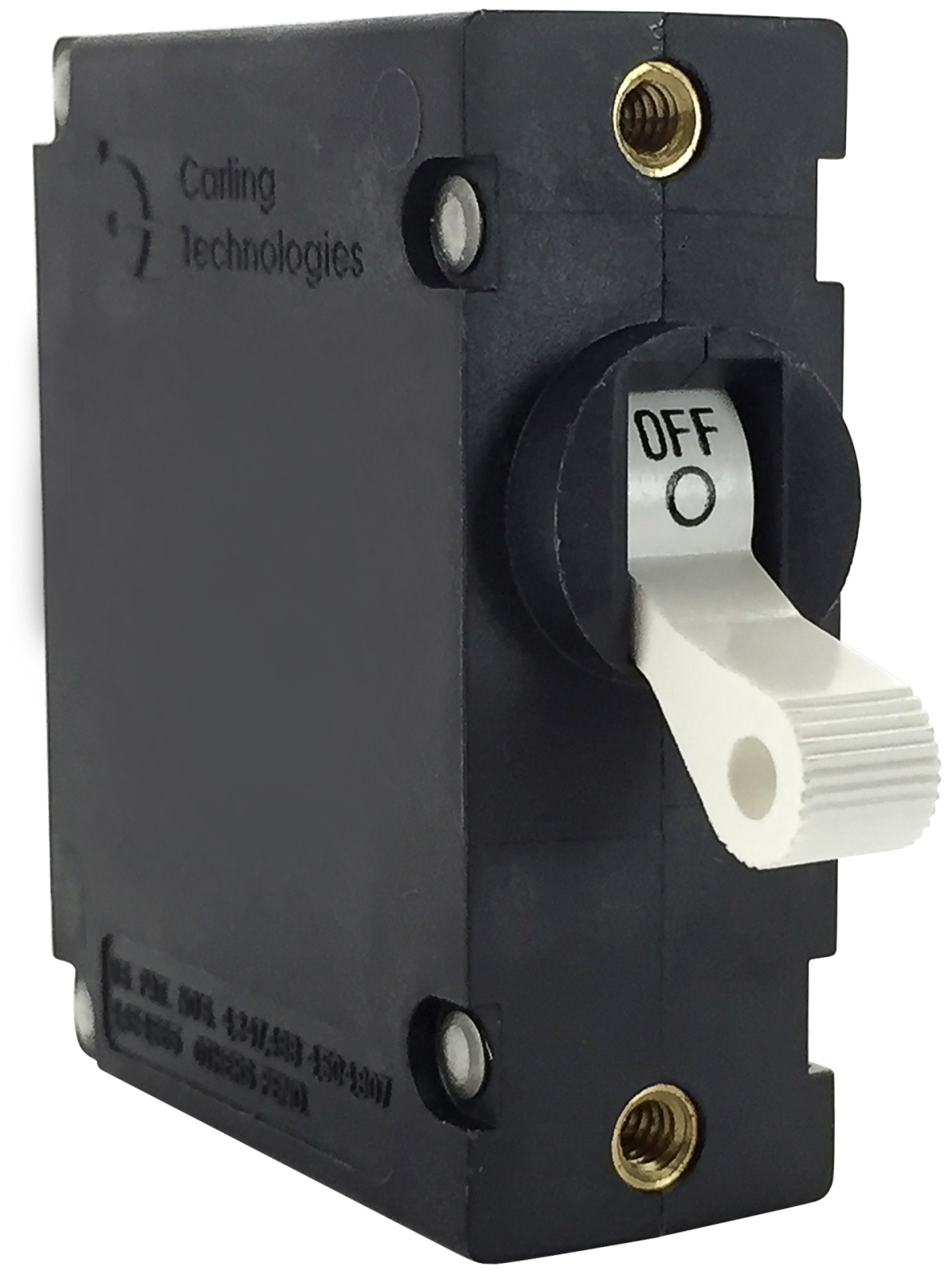

CARLING Circuit Breaker A-Series 12/24/230V 8A

43,41 €

SKU: CAA11008 Kategorijas: CARLING circuit breaker, Lights and electric, Lindemann, Switch

Apraksts
Papildu informācija

Circuit breakers with hydraulic-magnetic tripping offer highly precise, reliable and cost-effective solutions for maritime applications. They are temperature-stable in the range -40°/+85°C and are not affected by fluctuations in ambient temperature, as is the case, for example, with the widely used circuit breakers with thermal (bimetal) tripping. The precise switching mechanism of the CARLING circuit breakers ensures uninfluenced free tripping and reliable disconnection even at the smallest overcurrents.

Technical Data
Nom Voltage	AC 125 / 250 V (50/60 Hz) DC 12-32 V Medium delay
Rated current	2.5 to 50 A
Poles	single pole
Colour	Housing black, with white rocker switch
Mounting	M3 threaded bolts
Electrical connections	UNF-threaded bolt (approx. 6 mm)
Sizes without connectors and switch	height: 50.8 mm width: 19.2 mm deapth: 41.6 mm
Approvals	UL1077, UL508, UL1500, UL489A and CSA TÜV certified to EN 60934

Svars	0,064 kg
Dimensijas	60 × 50 × 15 mm
Volume (L)	0.05
Strap measure (mm)	190
