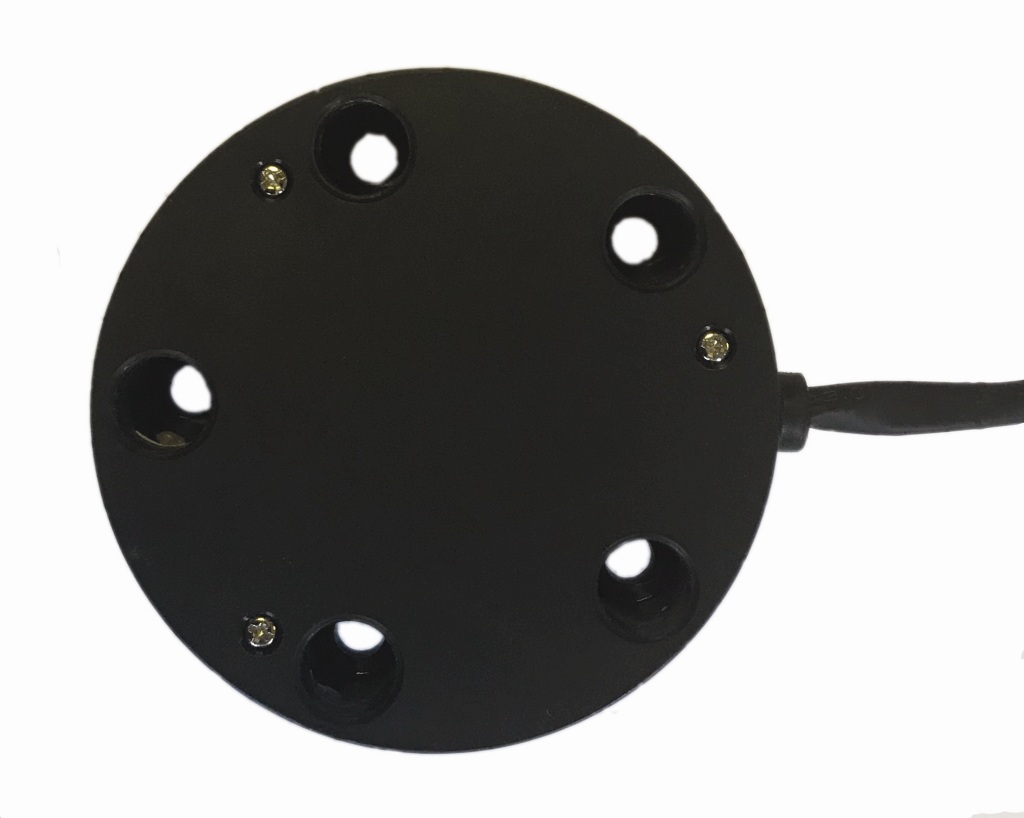

CN Programming Kit Ultrasense for Level Sensor CN70

The CN Ultrasense can be used for all types of tanks and can be programmed with different outputs: 240-33 ohms, 10-180 ohms and 0-5 volts. With less than 20 mm height and standard SAE 5-hole mounting, the sensor fits almost any commercially available tank. With the 240-33 Ohm or 10-180 Ohm setting, the CN Ultrasense can be connected to displays of many well-known brands, for example. CN Ultrasense is set to a tank depth of 0-2000 mm as standard. Specifications: • Operating voltage: 10-32 Volt • Current consumption: 25 mA at 5 Volt instrument output • Operation: Acoustic sound measurements • Tank depth: 0 to 2000 mm • Accuracy: range 200 – 2000 mm, 3 mm accuracy • Programmable: 240-33 Ohm, 10-180 Ohm, 10-300 Ohm, 0-5 Volt • Mounting: SAE 5 hole pattern, hole size 33 mm, incl. mounting material, can only be mounted from above • Ambient temperature: 4 to 65° C. • Chemical resistance: petrol, diesel, water, toilet chemicals. • Tank material: metal and plastic, gray and black water, petrol and diesel.
