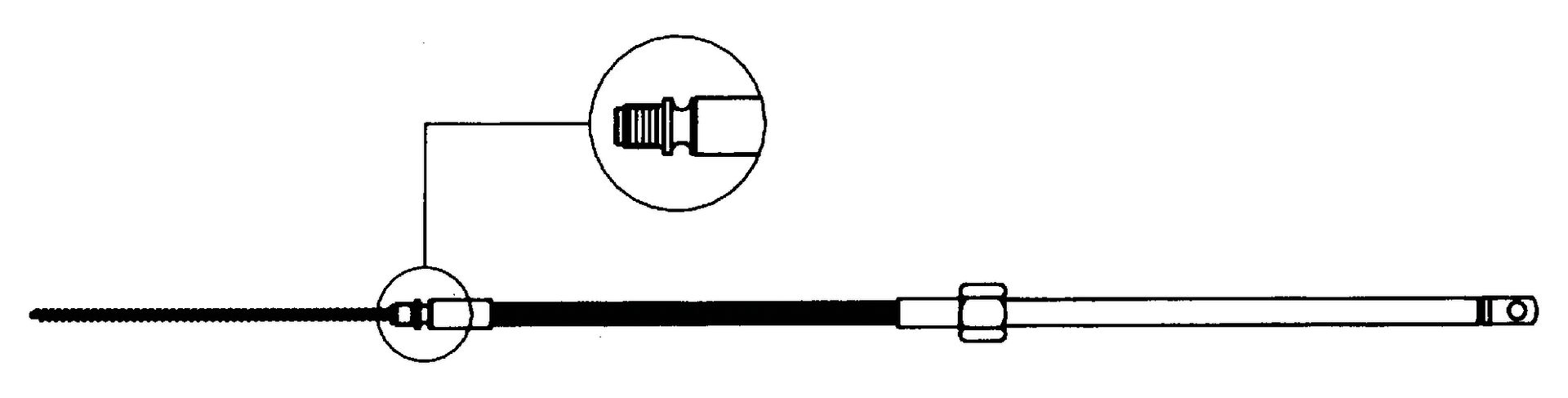

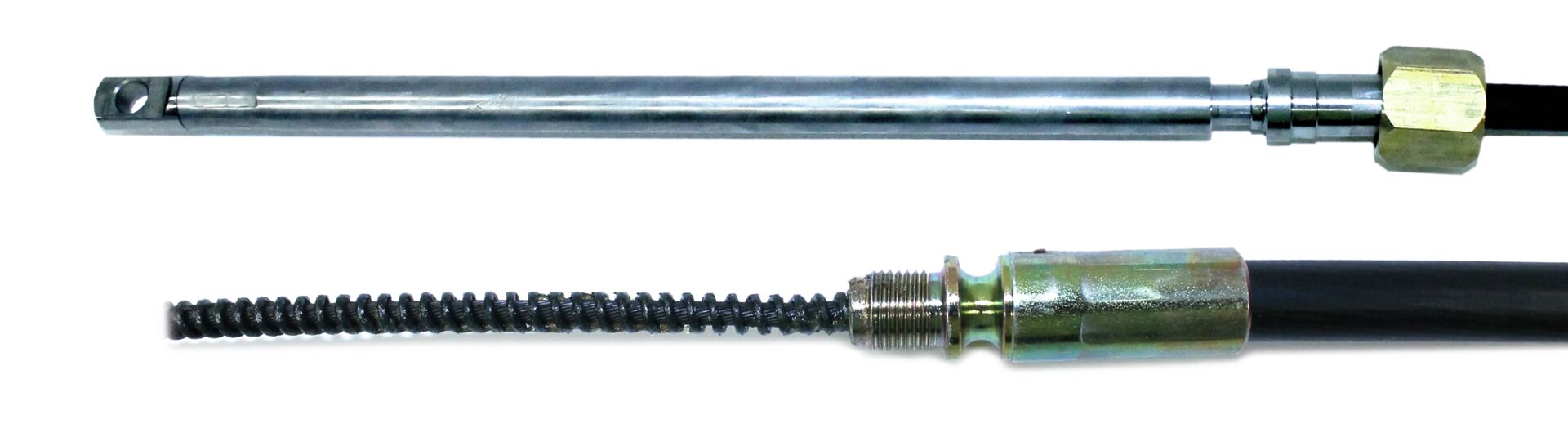

CONTROL CABLE 2.1M

The given cable length is ~ sheath dimension C + 56 cm.

Required cable length when using transom or engine well mount:
• measure the distance from the center of the steering shaft to the center of the engine, rotating the steering cable installation route. Subtract 10 cm for every 90° bend = required cable length.

Cable length when attaching the cable sheath to the engine sump:
• as above, but add 30 cm to the length.
