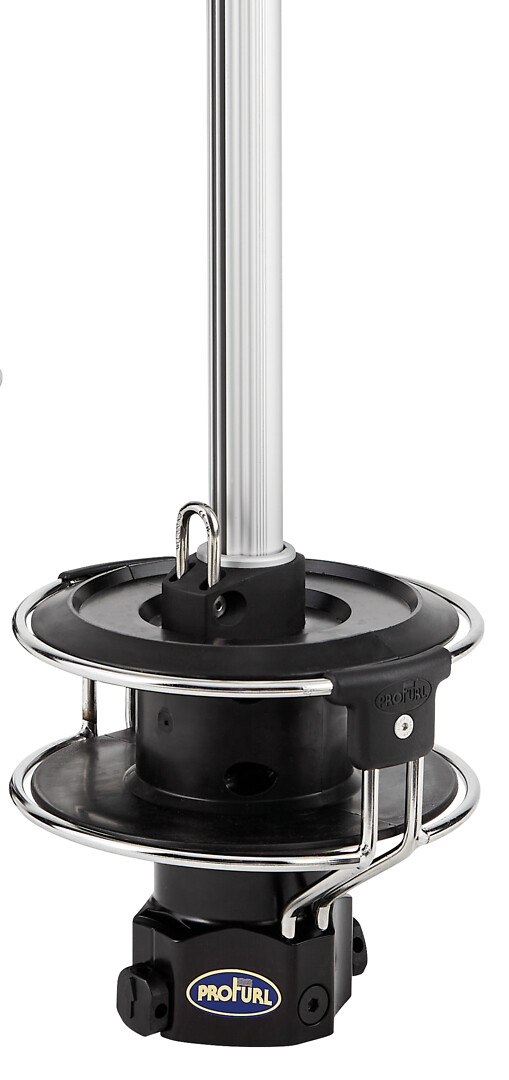

CRUISING ROLLER 12M

• Round boom profile, silver anodized
• Various attachments for the roll itself, adjustment bars, extension bars, turnbuckle cylinder, under-deck attachments.
• For coastal or offshore sailing
• 10-year limited warranty
Additional profiles, turnbuckle cylinders and extension bars sold separately.

TECHNICAL DATA:
Model: C320, Hoist attachment to “swivel”
Series: Cruising
Boat length: 9.5 – 11 m
Maximum bow boom diameter: 7 / 8* mm
Corresponding dimension #Rod: #12
Fork bolt diameter: 8-10-12-14-16
Standard length of furling system: 10 m
Aluminum profile length: –
Weight / meter: 661 g
Removable drum: Yes
Feeding device: Yes
Double groove profile for sail attachment: Yes
Lead rope diameter of sail: 5 mm
Pre-feeder for lead: Optional
Long link plates: Optional
Turnbuckle protection cylinder: Optional
Stainless locking mechanisms: Optional

*If you use When assembling wire end fittings, the maximum sail area and drum capacity must be taken into account.
