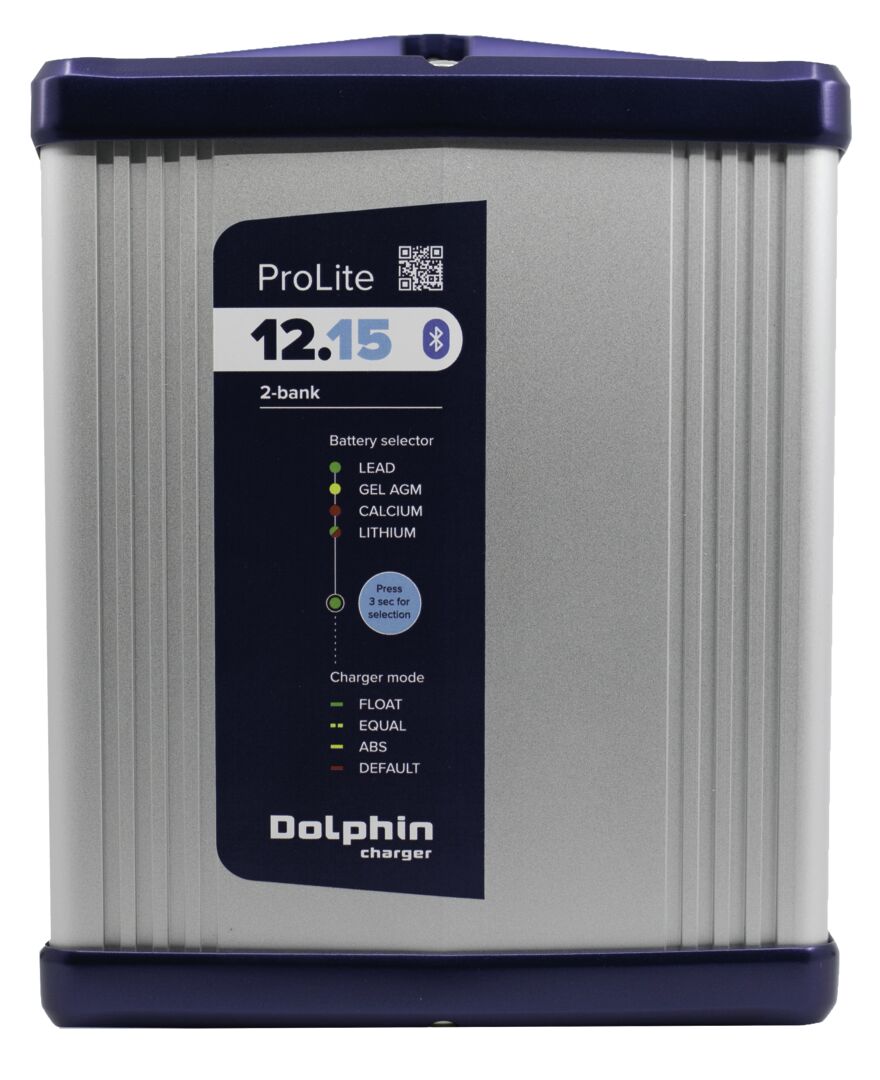

DOLPHIN PROLITE 12V-15A
349,02 €
The new ProLite offers the most technically versatile charger on the market: the series is smart (Bluetooth connection), powerful, compact, silent, spark-proof (ISO 8846) and completely waterproof (IP65). Due to its watertightness, it is the perfect charger for open boats. Due to its spark protection, it can also be used in the tank compartments of outboard boats. ProLite is 40% smaller and 50% lighter than its predecessor, so it fits even in small spaces. Since the charger produces little heat, it does not need a fan, which is why it is silent. The chargers have 2 separate outputs. The charger is suitable for all types of batteries. Thanks to the Bluetooth connection and the downloadable app, the charger’s operation can be monitored in real time.
Input
•Input voltage: 230V (±10%)
•Frequency: 50/60 Hz (±10%)
•Power factor (Cos φ): > 0.5
•Efficiency: > 90%
•Max. current (230V): 2A
Output
•Number of outputs: 2
•Charging algorithms: Open lead-acid battery / Lead-calcium / AGM-GEL / LifeSo4 + BMS
•Charging curve: 3-phase IUo.U
•Voltage division: ±2 %
•Max. output current: 15A (±5 %)
•Ripple voltage: < 1% (BW < 20 MHz)
Protection
•Output current limitation
•Short circuit protection
•Overvoltage protection
•Reverse polarity protection
•Overheating protection
General
•Display: Tri-color LED display
•Control: Front panel button or Dolphin Connect app
•Operating temperature: -10 °C to +55 °C (automatic power reduction)
•Storage temperature: -20 °C to +70 °C
•Humidity: 10% – 90%
•Enclosure rating: IP65
•Cooling: Natural convection
•Safety standards: EN 60335-1, EN 60335-2-29, ISO 8846, SAEJ1171, UL1236
•EMC standards: EN 55014-1, EN55014-2
•Housing: Anodized, extruded aluminum
•Mounting: Wall mount, 2 x M4 screws
•Dimensions: 142 x 72 x 194 mm (5.59 x 2.83 x 7.64”)
•Weight: 1.4 kg / 3.1 lbs
•AC & DC cable length: 1.8 meters / 6 feet
•AC connection: 3-wire, 0.75 mm² stripped cable
•DC connection: M8 ring terminals with pre-wire
| Svars | 1,69 kg |
|---|---|
| Dimensijas | 142 × 194 mm |
| Technical name | 399710 |
