Name: DOOR HATCH LEWMAR OCEAN SIZE 40, FLAT BOTTOM - Marimen.com
SKU: 9512406026
Price: 1044.62 EUR
Availability: InStock

1 263,99 €

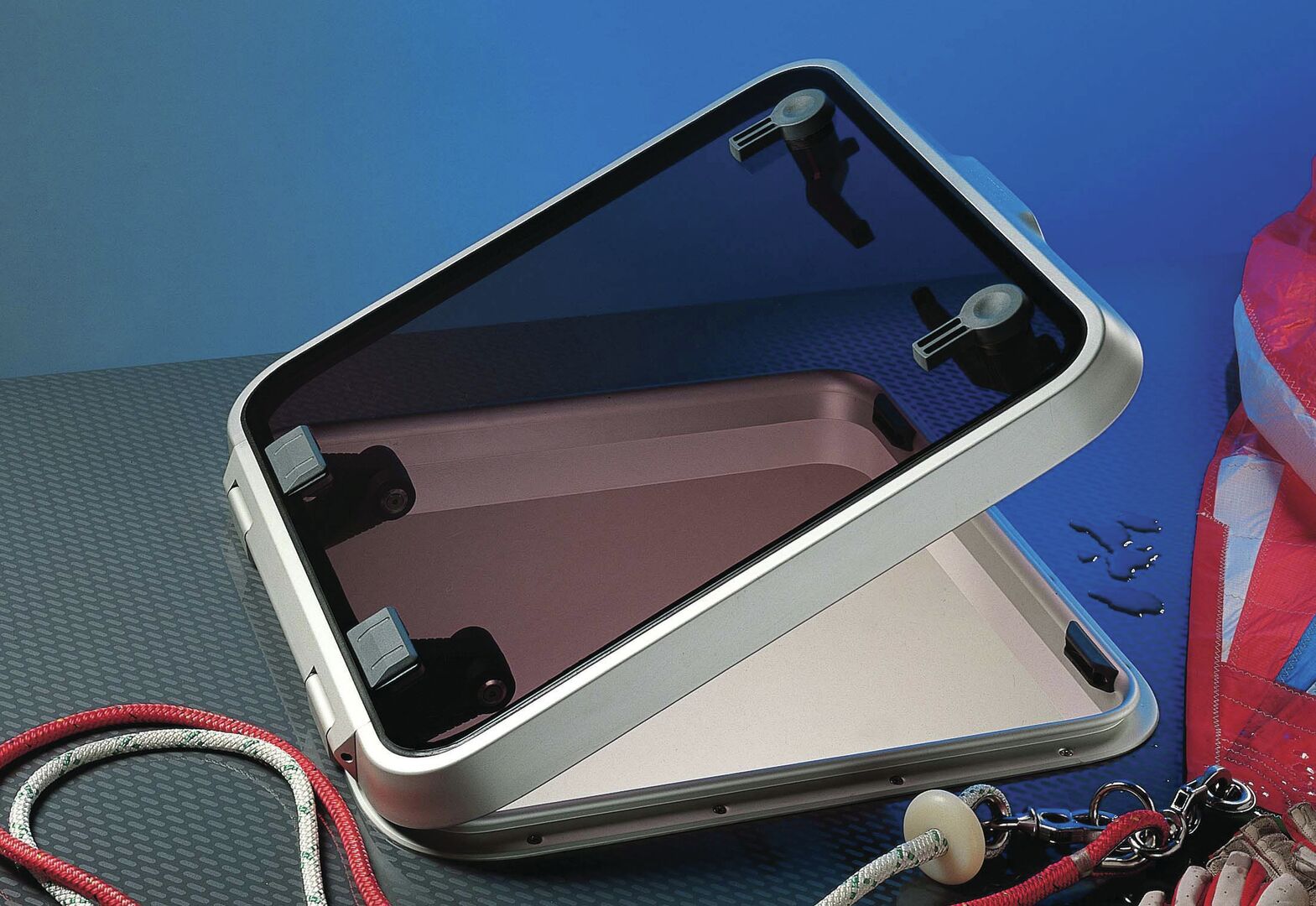

High profile and classic deck hatch, installed on thousands of boats worldwide since 1980. Robust construction provides the best possible protection from the elements in all situations. Mounting frame on a flat base.

• Friction levers keep the hatch open in all positions up to 95°
• Corrosion resistant anodized aluminum frame
• All sizes suitable for CE Zone 2 (deck, hatch, cockpit and transom)

SKU: 9512406026 Kategorijas: Deck hatches, Deck hatches, windows and curtains, Maritim, Refrigeration, cooling, water and air conditioning

Apraksts
Papildu informācija

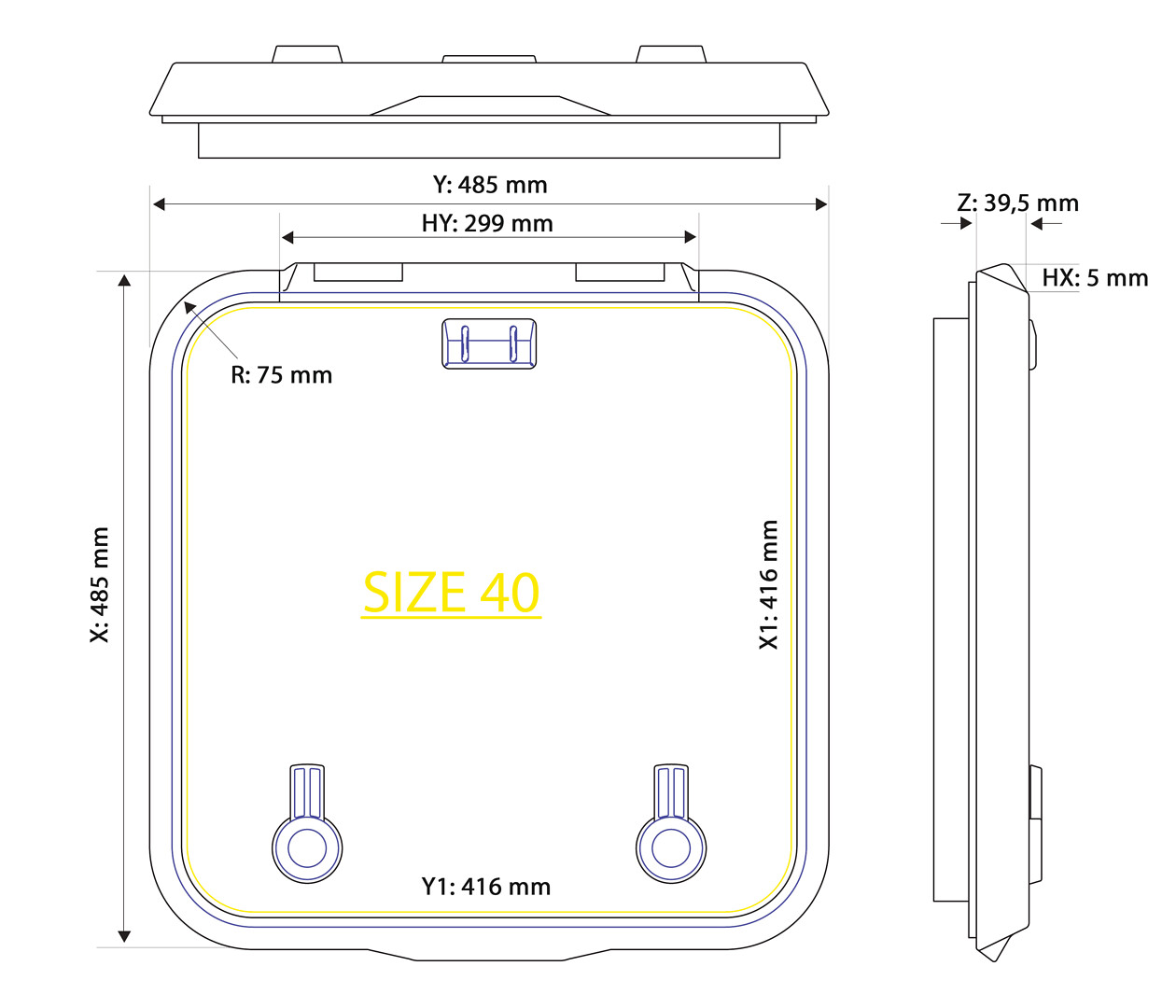

Technical data:
Size: 40
Acrylic color: Smoke gray
Acrylic thickness: 10 mm
Length X (mm): 485
Width Y (mm): 485
Height Z (mm): 39.5
Corner radius (mm): 75
Hinge length HX (mm): 5
Hinge width HY (mm): 299
Installation length X1 (mm): 416
Installation width Y1 (mm): 416
Installation corner radius (mm): 40

NOTE! The door should be installed on a flat surface, +/- 1 mm tolerance allowed.
