Name: DOOR HATCH LEWMAR OCEAN SIZE 44, WITH RIM - Marimen.com
SKU: 9512406029
Price: 1088.45 EUR
Availability: InStock

1 317,02 €

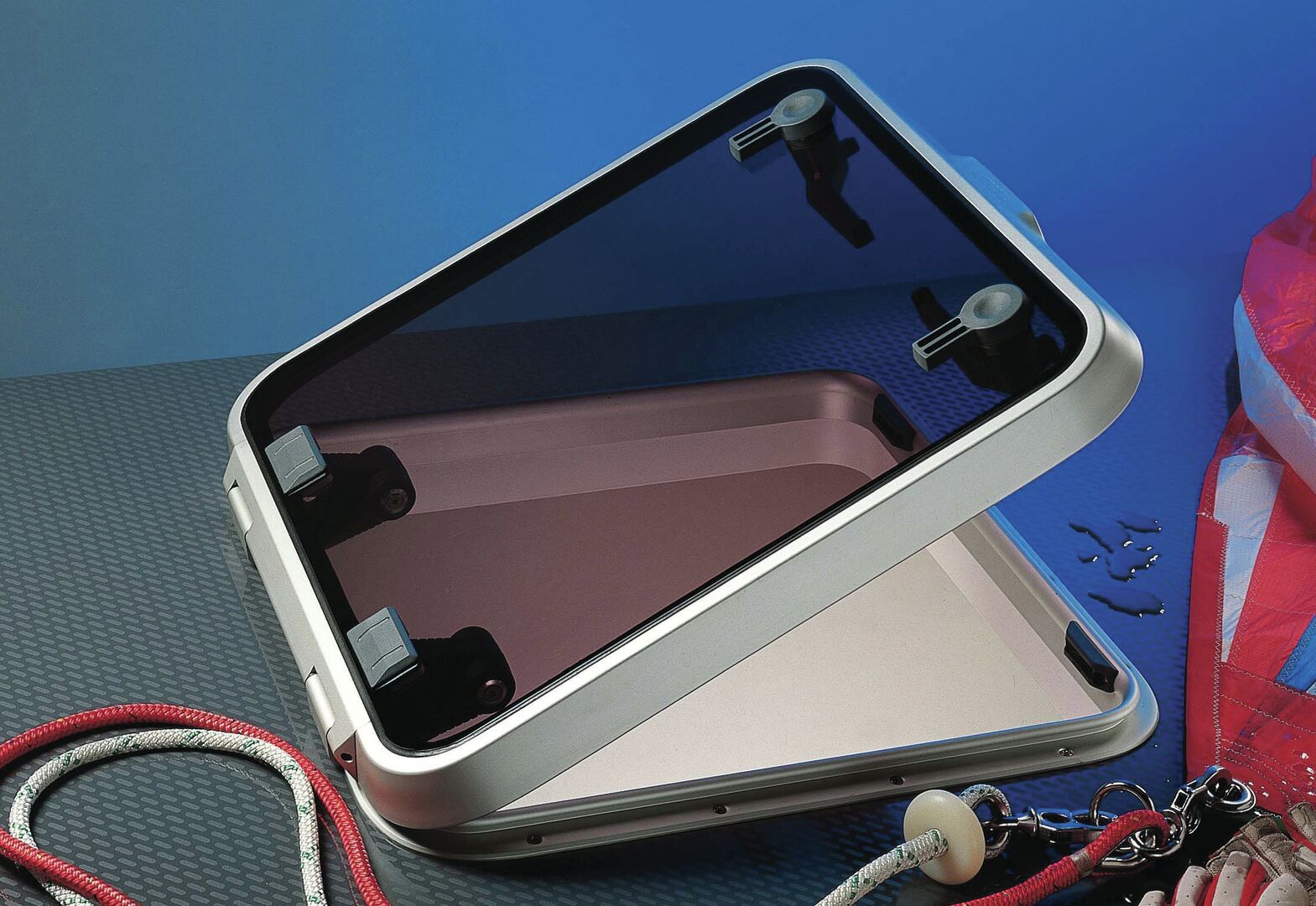

high-profile and classic hatch that has been fitted to thousands of boats worldwide since 1980. The robust construction offers the best possible protection from the elements in all situations. Mounting frame with 25 mm edge.

• Friction levers keep the hatch open in all positions up to 95°
• Corrosion-resistant anodized aluminum frame
• All sizes suitable for CE Zone 2 (deck, hatch, cockpit and transom)

SKU: 9512406029 Kategorijas: Deck hatches, Deck hatches, windows and curtains, Maritim, Refrigeration, cooling, water and air conditioning

Apraksts
Papildu informācija

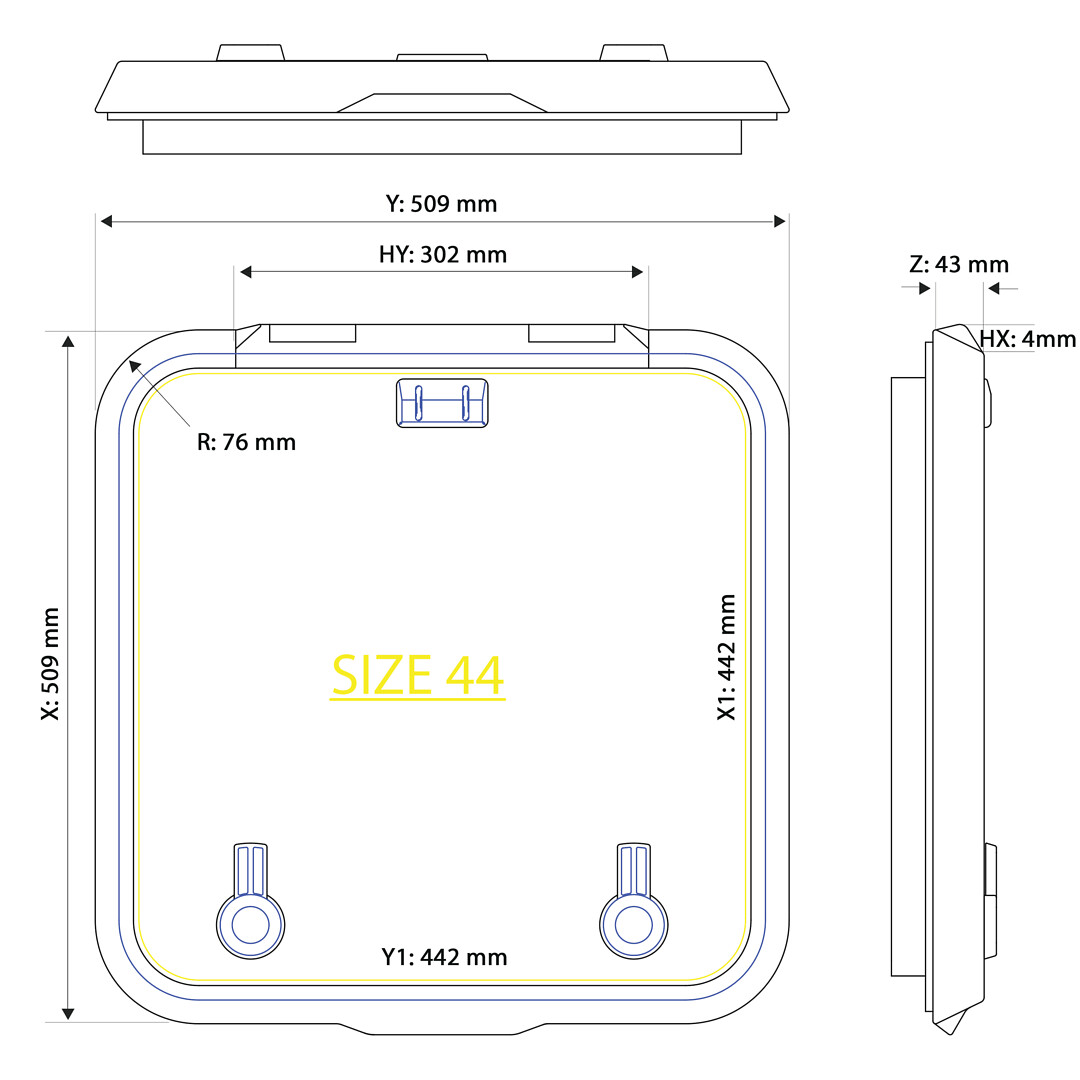

Technical data:
Size: 44
Acrylic color: Smoke gray
Acrylic thickness: 12 mm
Length X (mm): 509
Width Y (mm): 509
Height Z (mm): 43
Corner radius (mm): 76
Hinge length HX (mm): 4
Hinge width HY (mm): 302
Installation length X1 (mm): 442
Installation width Y1 (mm): 442
Installation corner radius (mm): 42.5

NOTE! The door should be installed on a flat surface, +/- 1 mm tolerance allowed.
