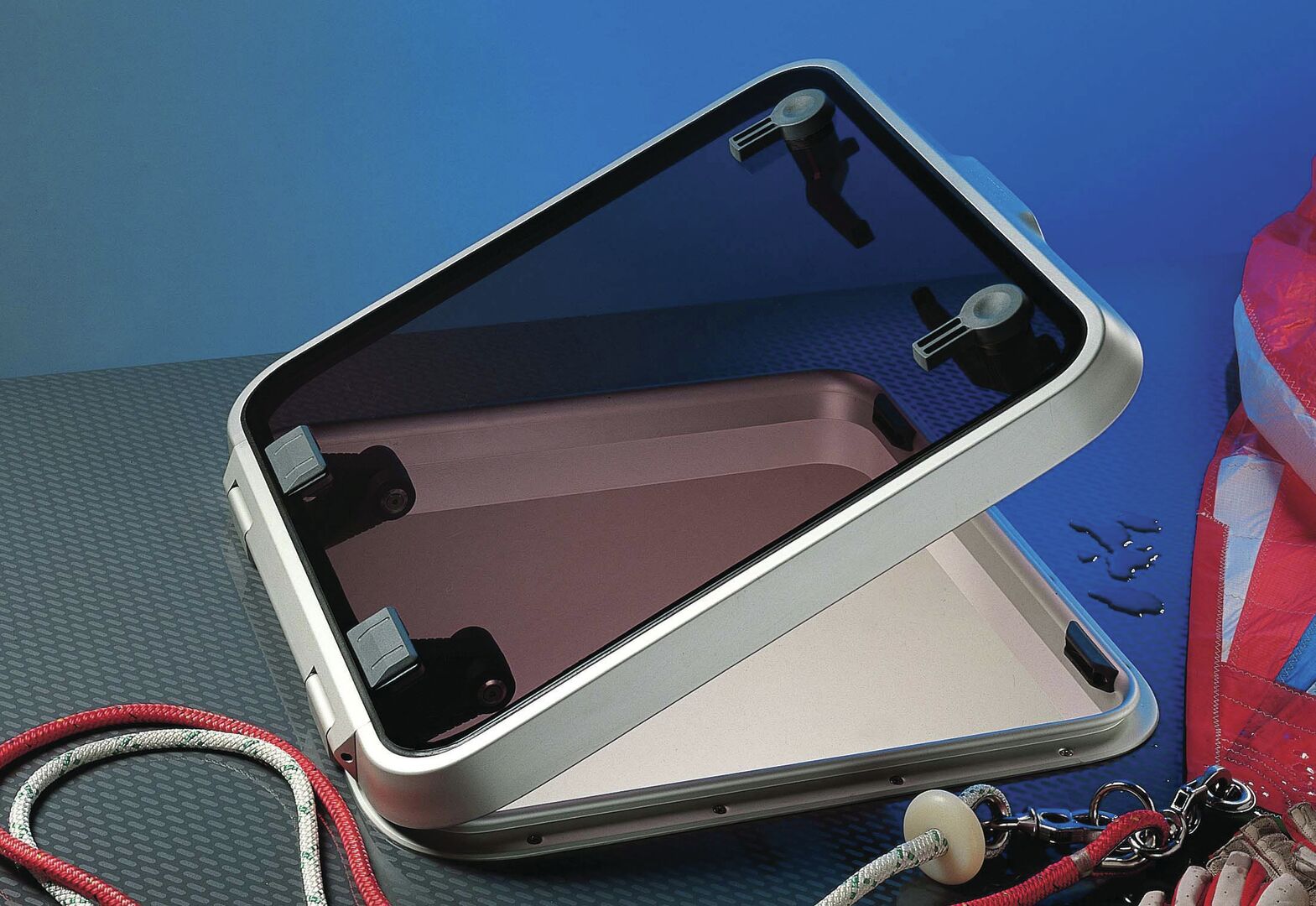

DOOR HATCH LEWMAR OCEAN SIZE 60, FLAT BOTTOM
1 514,67 €
High profile and classic deck hatch, installed on thousands of boats worldwide since 1980. Robust construction provides the best possible protection from the elements in all situations. Mounting frame on a flat base.
• Friction levers keep the hatch open in all positions up to 95°
• Corrosion resistant anodized aluminum frame
• All sizes suitable for CE Zone 2 (deck, hatch, cockpit and transom)

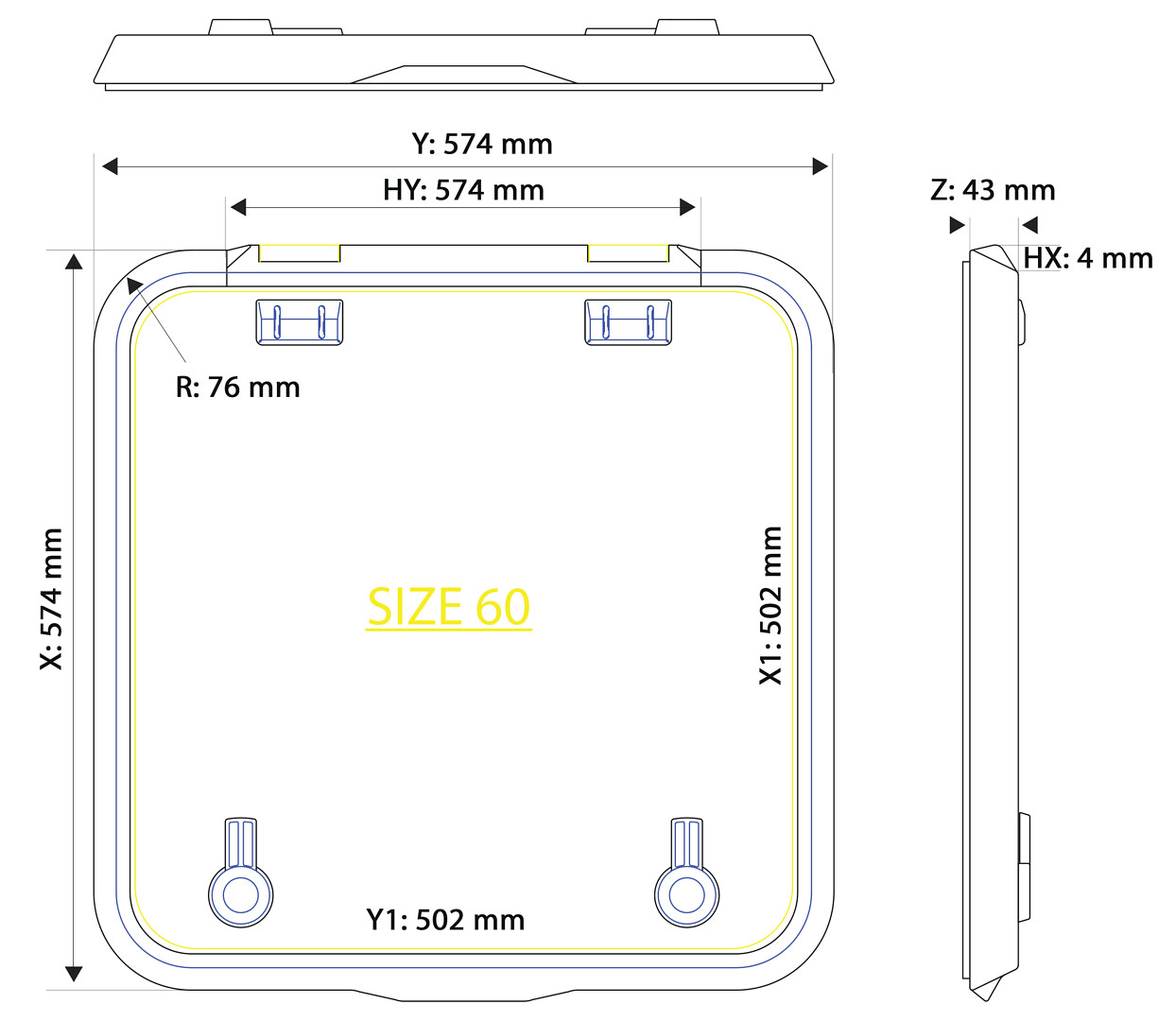

Technical data:
Size: 60
Acrylic color: Smoke gray
Acrylic thickness: 12 mm
Length X (mm): 574
Width Y (mm): 574
Height Z (mm): 43
Corner radius (mm): 76
Hinge length HX (mm): 4
Hinge width HY (mm): 367
Installation length X1 (mm): 502
Installation width Y1 (mm): 502
Installation corner radius (mm): 40
Weight: 8 kg
NOTE! The door should be installed on a flat surface, +/- 1 mm tolerance allowed.
| Svars | 9 kg |
|---|---|
| Technical name | 39660050 |
