Name: DOOR HATCH LEWMAR OCEAN SIZE 60, WITH RIM, POLISHED - Marimen.com
SKU: 9512406039
Price: 1570.52 EUR
Availability: InStock

1 900,33 €

high-profile and classic hatch that has been fitted to thousands of boats worldwide since 1980. The robust construction offers the best possible protection from the elements in all situations. Mounting frame with 25 mm edge.

• Friction levers keep the hatch open in all positions up to 95°
• Polished aluminium frame
• All sizes suitable for CE Zone 2 (deck, hatch, cockpit and transom)

SKU: 9512406039 Kategorijas: Deck hatches, Deck hatches, windows and curtains, Maritim, Refrigeration, cooling, water and air conditioning

Apraksts
Papildu informācija

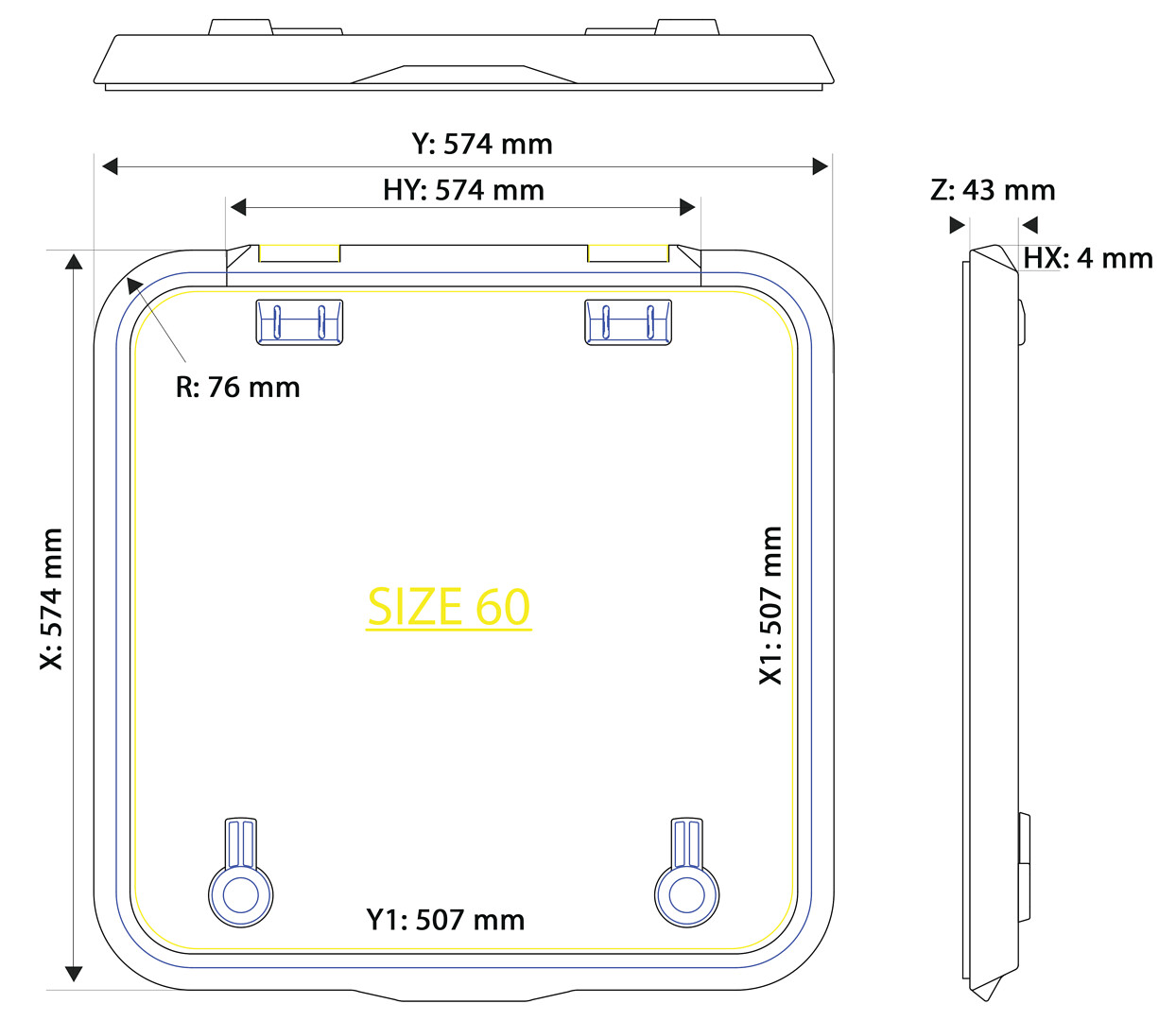

Technical data:
Size: 60
Acrylic color: Smoke gray
Acrylic thickness: 12 mm
Length X (mm): 574
Width Y (mm): 574
Height Z (mm): 43
Corner radius (mm): 76
Hinge length HX (mm): 4
Hinge width HY (mm): 367
Installation length X1 (mm): 502
Installation width Y1 (mm): 502
Installation corner radius (mm): 40
Weight: 8 kg

NOTE! The door should be installed on a flat surface, +/- 1 mm tolerance allowed.
