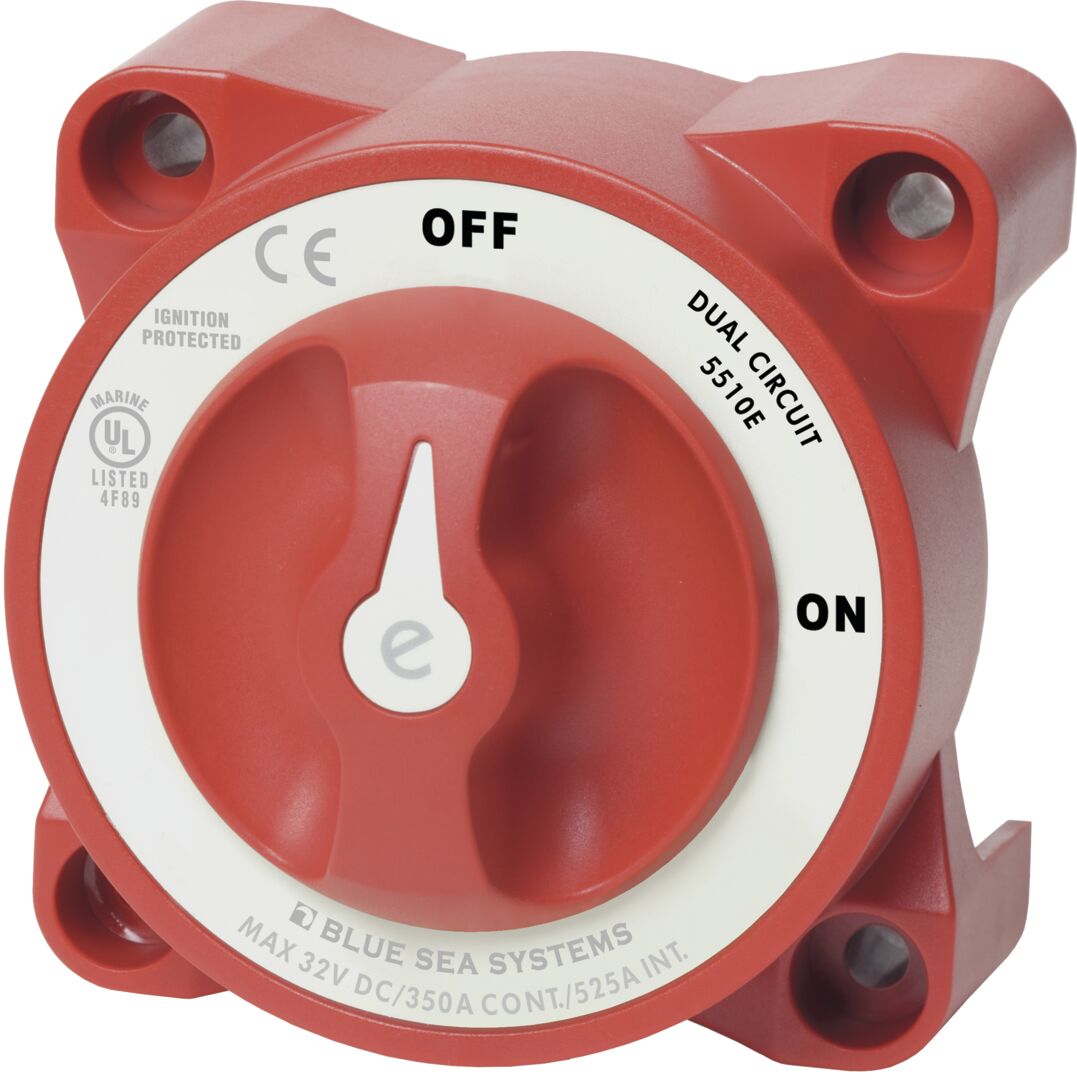

E-SERIES MINI DUAL MAIN POWER SWITCH ON-OFF-DUAL
96,41 €
Single-function ON-OFF main power switch. This can be used to simultaneously disconnect two completely separate battery banks from the load (e.g. 12 and 24 V). It can also be used to simultaneously disconnect both the positive (+) and negative (-) power supply.
TECHNICAL DATA:
Breaker type: Dual circuit
Color: Red
Breaker positions: 2
Battery connection: No
Alternator field disconnection: No
Maximum voltage: 32V DC
Terminal pin torque: 15.82 Nm
Continuous current rating: 350A
Intermittent current rating: 525A (5 min)
Starting current 30 s: 700A per circuit

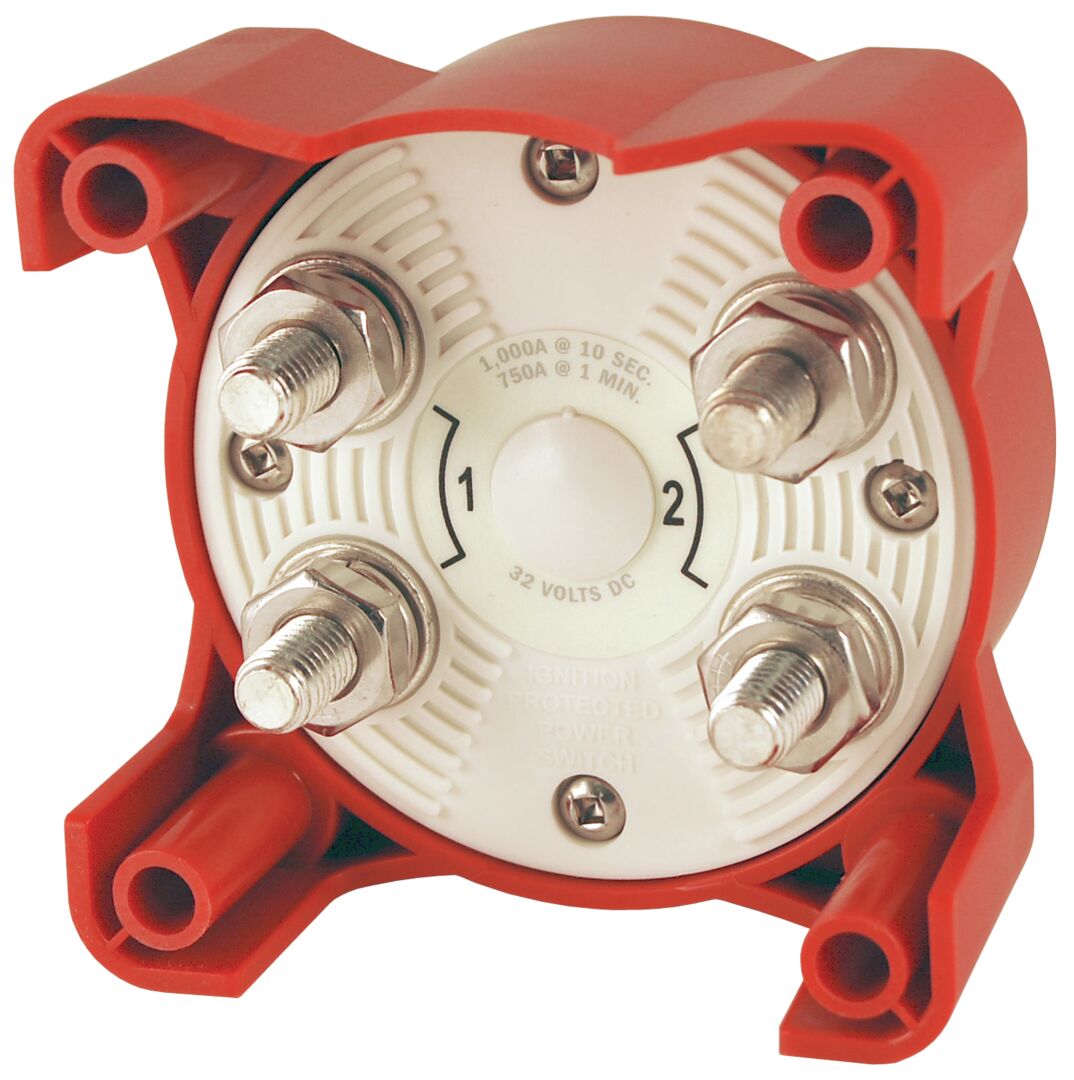

Battery input connections: 2
Cable openings for 107mm² cables: 27.94 mm
Cable size: 107mm²

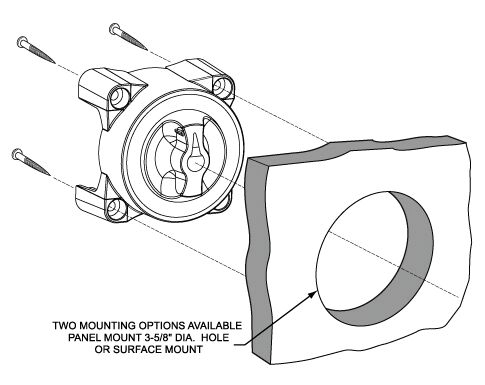

Mounting holes: Suitable for M6 screws
Terminal pin size: M10
Weight: 0.59 kg
| Svars | 0,59 kg |
|---|---|
| Technical name | BLUE SEA 5510E-BSS |
