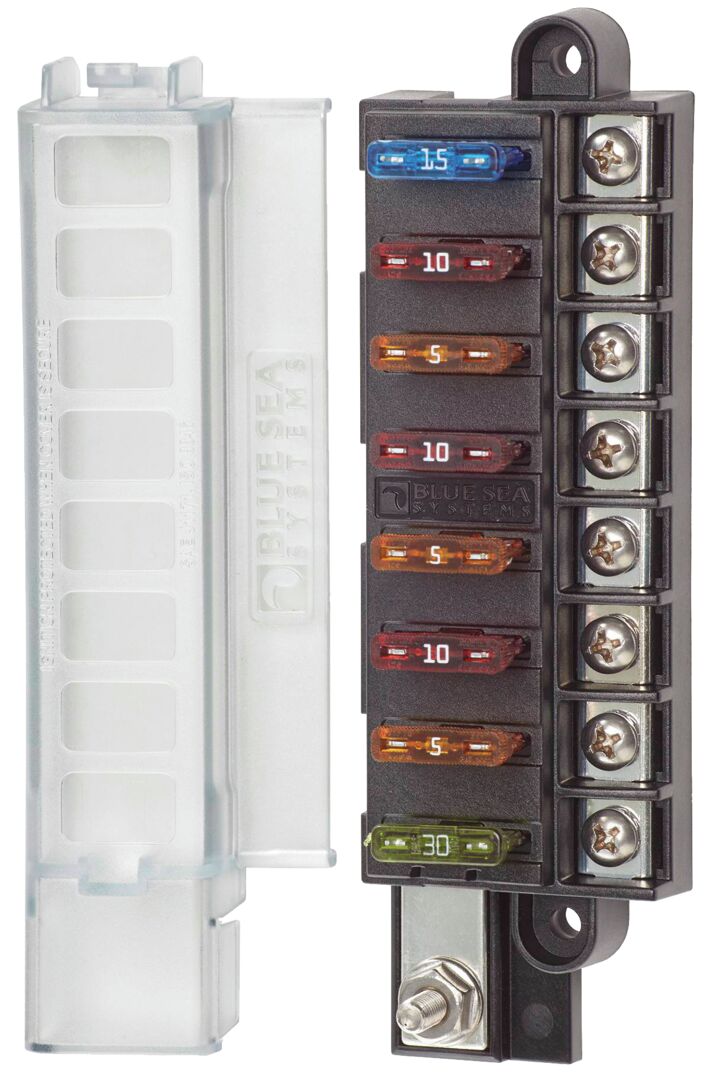

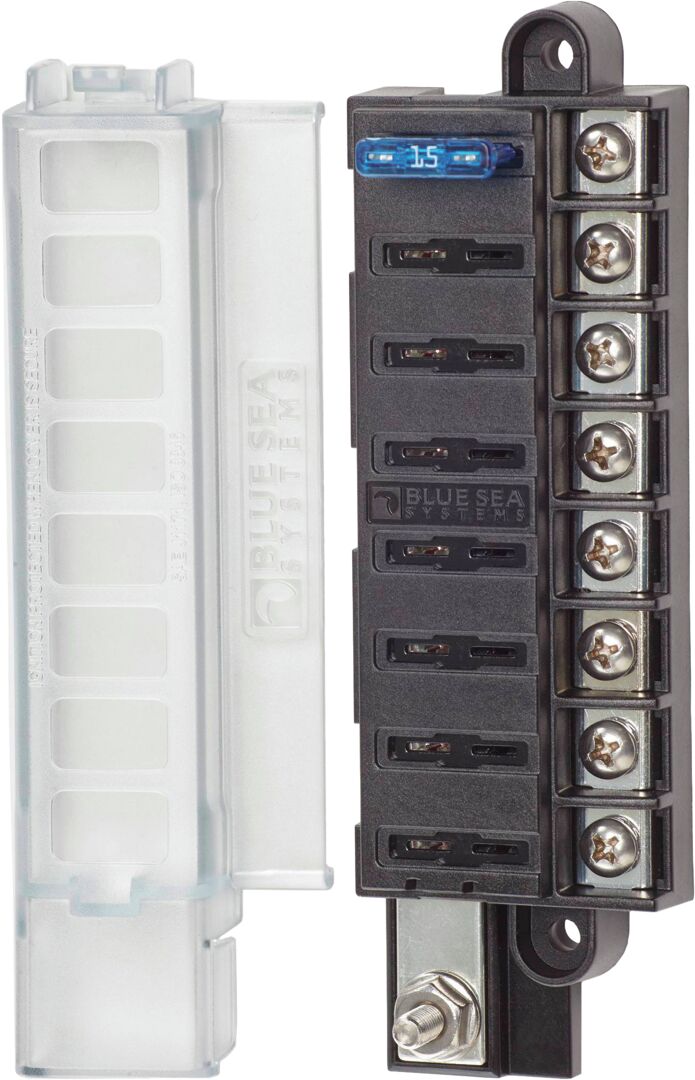

FUSE BOX STBLADE COMPACT 8CIRC
75,20 €
Provides surface mount protected enclosure for ATO®/ATC® fuses, compact size.
• Spark proof with protective cover in place – meets ISO 8846 and SAE J1171 standards for gasoline engine rooms
• Single sided cable entry design saves space
• Protective cover meets ABYC/USCG insulation requirements
• Tinned copper bars and fuse springs
• Compatible with ring and fork type terminals
• Includes 8 blank labels
• Fuses must be ordered separately
SPECIFICATIONS:
Number of Circuits: 8
Maximum Current: 100 A per Block | 30 A per Circuit
Maximum Voltage: 32 VDC
Mounting: M4 (#8) Screw
Terminal Pin Tightening Torque: 2.71 Nm (24 in-lb)
Terminal Screw Tightening Torque: 1.69 Nm (15 in-lb)
Terminal Type: #8-32 with Star Washer
Terminal Pin Size: #10-32
| Svars | 0,181 kg |
|---|---|
| Technical name | W/CVR 5046 |
