H2 WINCH WITH CHAIN/ROPE WHEEL 12 V, 90A, 10 MM

H2 WINCH WITH CHAIN/ROPE WHEEL 12 V, 90A, 10 MM - Image 3

H2 WINCH WITH CHAIN/ROPE WHEEL 12 V, 90A, 10 MM

Name: H2 WINCH WITH CHAIN/ROPE WHEEL 12 V, 90A, 10 MM - Marimen.com
SKU: 9512401504
Price: 3652.59 EUR
Availability: InStock

4 419,63 €

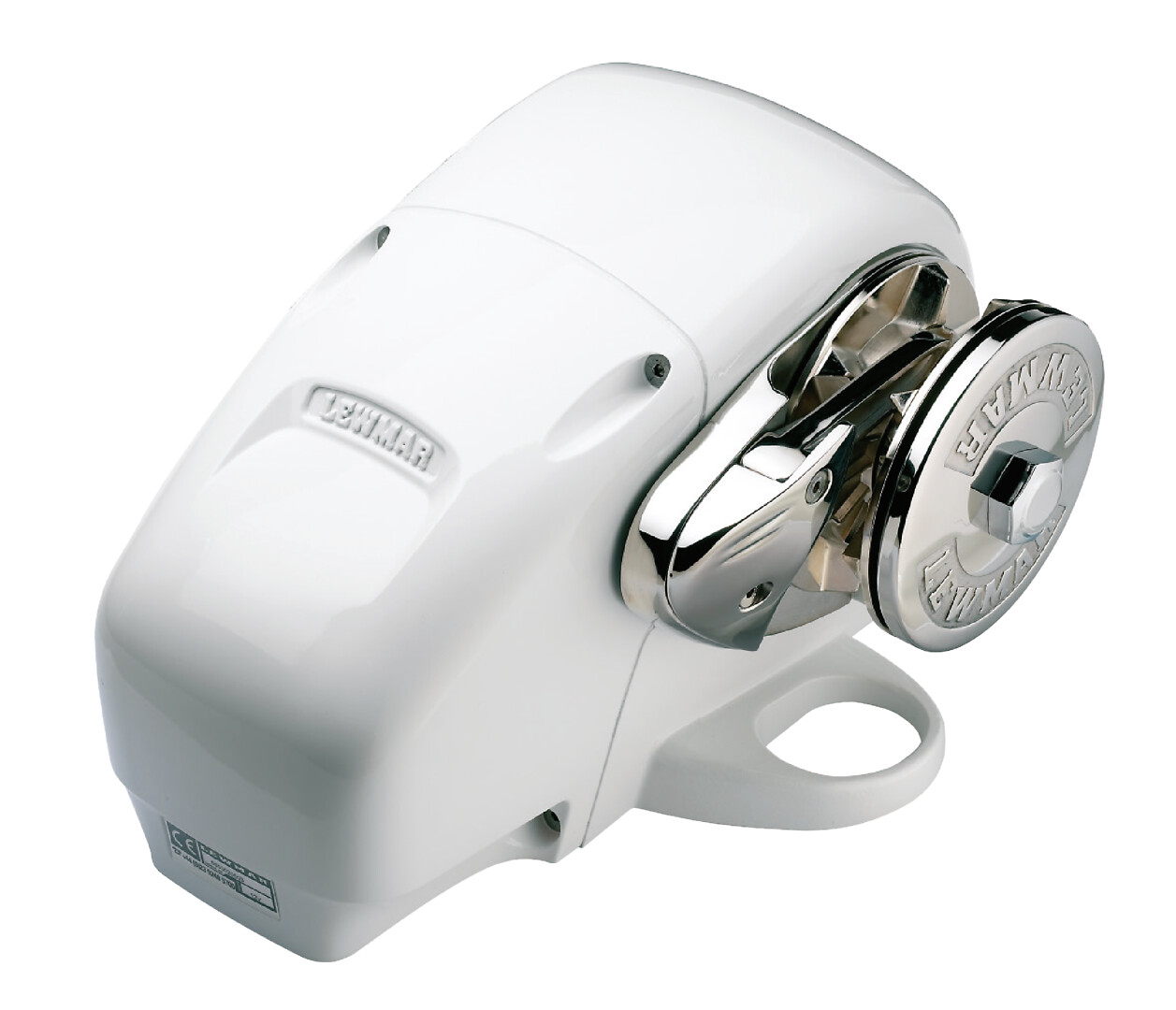

Robust anchor windlass with horizontal shaft from Lewmar. Powerful motor. Planetary gearbox for efficient lifting/power ratio. Integrated solenoid. Manual output, can be equipped with manual lifting.

Set includes:
• H2 anchor windlass with chain/rope pulley 12 V, RC 10 MM (6652011110)
• fuse 90A 9327 (68000349)
• rocker switch with frame (68000593B)

SKU: 9512401504 Kategorijas: Cars, Mainsheet travelers, Rails and cars, Maritim, Sailboat fittings

Apraksts
Papildu informācija

Technical data:
• sprocket no.: 506
• chain: 10 mm 3/8′ BBB, 10 mm DIN 766, Lewmar 9.5 G40
• rope: 14 – 16 mm 3-strand and braided 8-strand (5/8)

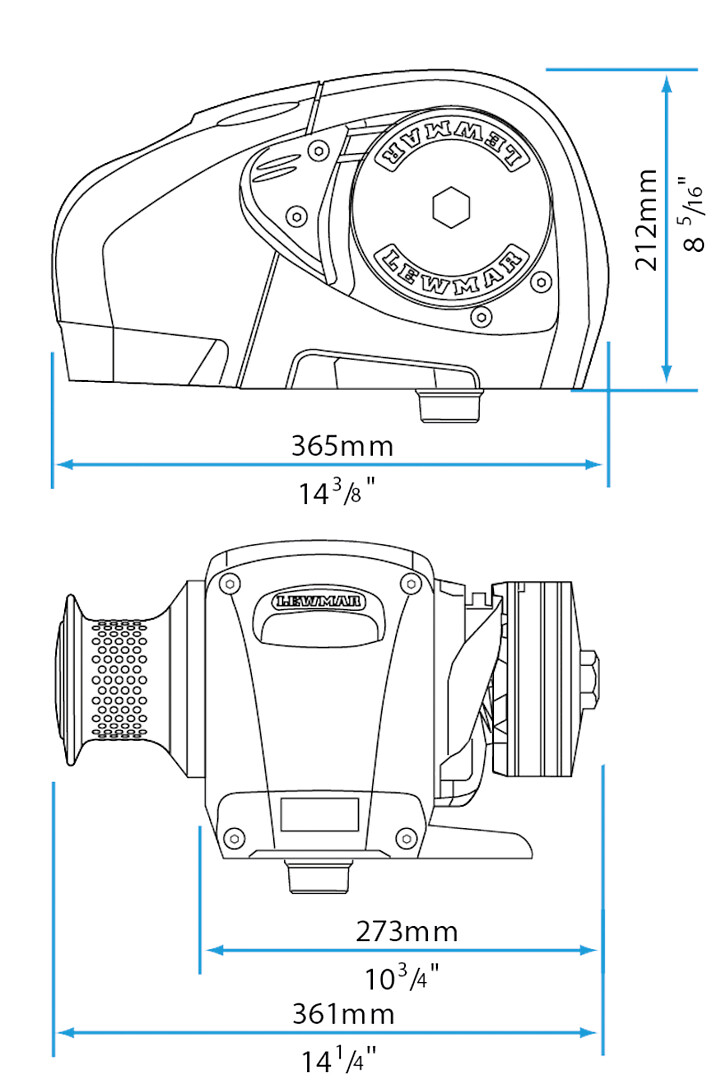

A: 212 mm
B: 365 mm
C: 273 mm

Features:
• quick, easy, one-piece installation
• durable horizontal worm gear motor with reliable performance
• housing-protected fixed contactor
• sealed watertight unit requires minimal maintenance
• lightweight aluminum and composite housing
• stainless steel spool and unique wear-resistant coating
• magnetic reed switch included for chain counter applications
• for boats from 14 m (48 ft)

Svars	21,6 kg
Technical name	69600534

H2 WINCH WITH CHAIN/ROPE WHEEL 12 V, 90A, 10 MM
