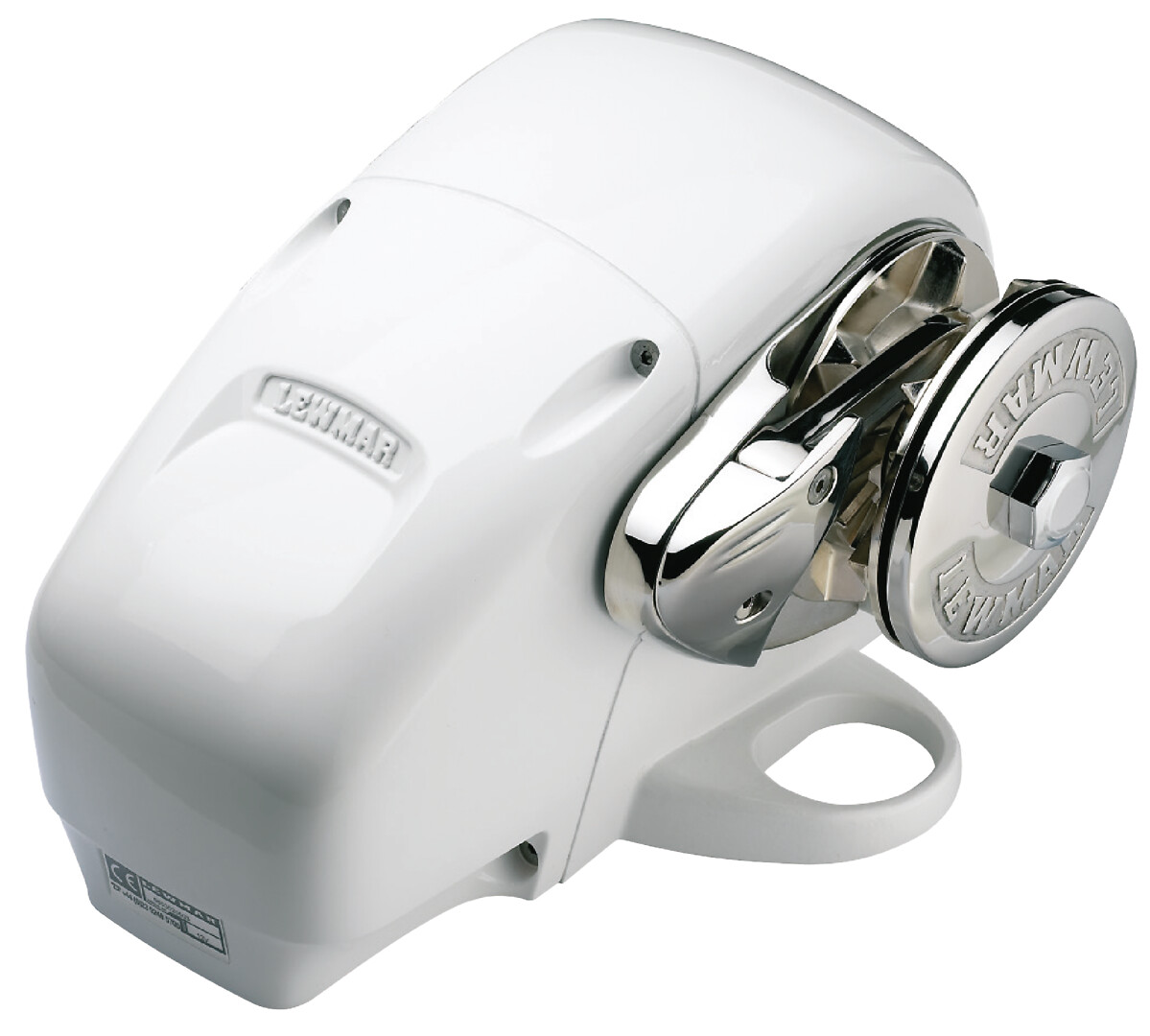

H3 WINCH WITH CHAIN/ROPE WHEEL 12 V, 110A, 10 MM

Technical data:
• sprocket no.: 506
• chain: 10 mm 3/8′ BBB, 10 mm DIN 766, Lewmar 9.5 G40
• rope: 14 – 16 mm 3-strand and braided 8-strand (5/8)

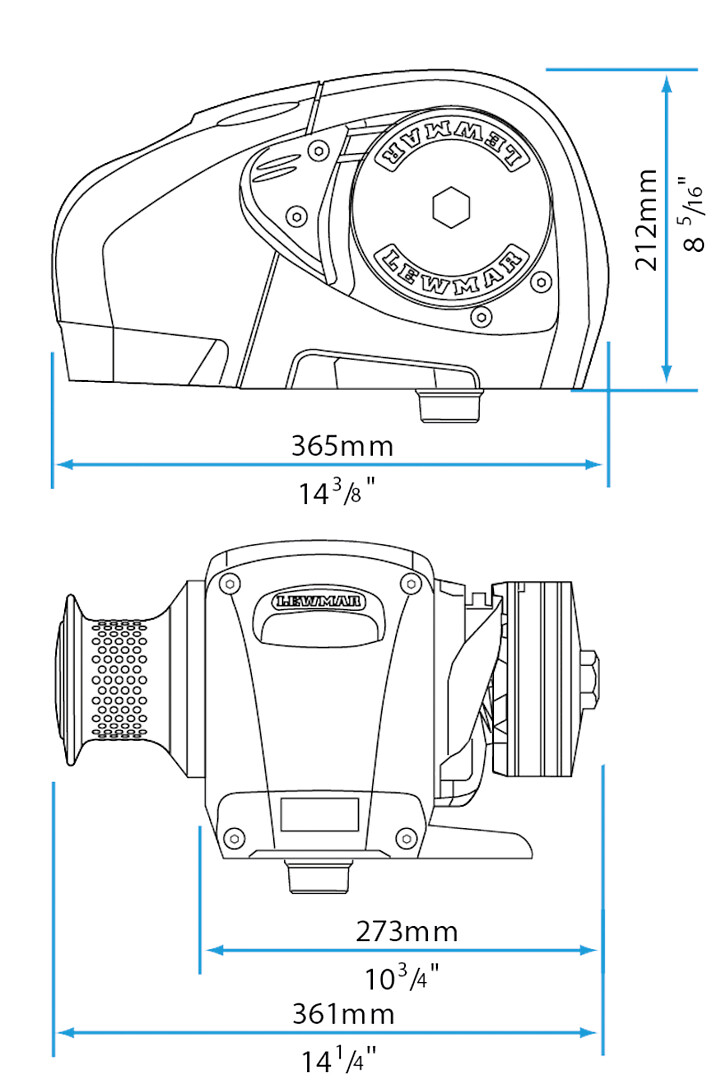

A: 212 mm
B: 365 mm
C: 273 mm

Features:
• quick, easy, one-piece installation
• durable horizontal worm gear motor with reliable performance
• housing-protected fixed contactor
• sealed watertight unit requires minimal maintenance
• lightweight aluminum and composite housing
• stainless steel spool and unique wear-resistant coating
• magnetic reed switch included for chain counter applications
• for boats from 14 m (48 ft)
