TECHNICAL DATA:
Installation: Vertical and pendant
Body: Thermally conductive, corrosion-free polymer
Lens: Impact-resistant plastic
Mount: Stainless steel
Operating voltage: Multi-voltage 9–32 V DC (12/24 V nominal)
Power consumption: 17 W (1.29 A @ 12 V DC / 0.61 A @ 24 V DC)
Light output: 1850 lumens
Color temperature: 6500 K
Protection: Reverse polarity protection, overvoltage protection
Protection rating: IP6K7 and IP6K9K – fully sealed, resistant to immersion and pressure washer
Connection: 2-pin DEUTSCH DT connector
Note: Requires cable 9514038169 or equivalent (not included)
Approvals: ECE-R10, ADR/GGVSEB, RCM, CISPR 25 Class 5 (12 V) / Class 4 (24 V)

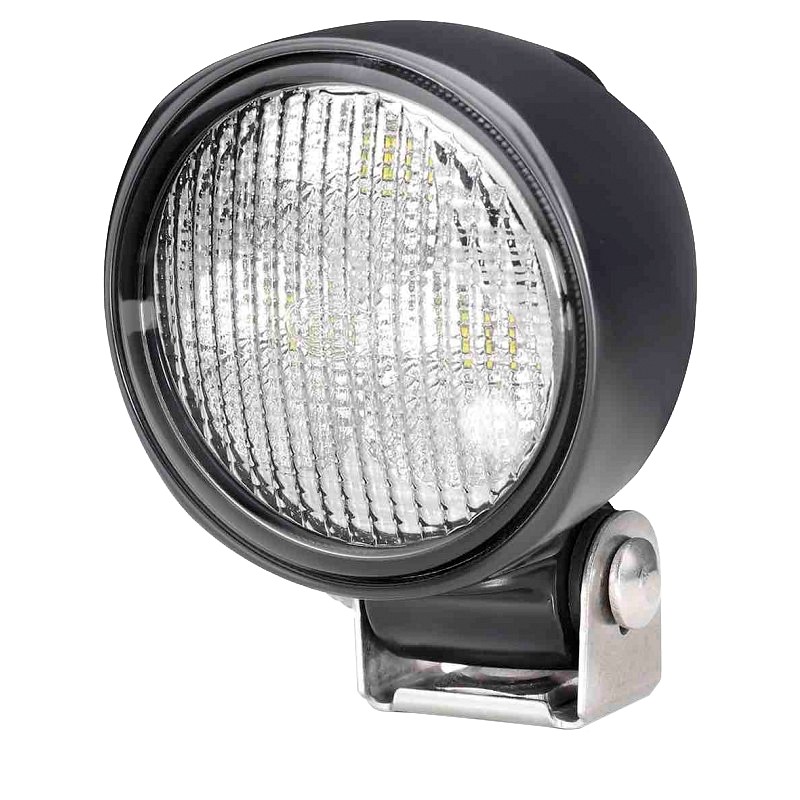

HELLA MARINE MODULE 70-S BLACK, SHORT RANGE
87,74 €
The short-range light effectively illuminates nearby areas, such as work or loading decks. Installing two lights crosswise helps minimize shadows.
The Module 70 S LED work light is designed for extremely demanding conditions where reliability, safety and durability are paramount. Efficient heat dissipation fins and temperature-controlled automatic dimming prevent overheating and ensure maximum light output in all environments.
The light is dust and watertight (IP6K7 and IP6K9K), protected against reverse polarity and overvoltage, and meets the approvals required for the transport of hazardous materials. The durable construction and stainless steel bracket allow for both vertical and pendant installation. The lens is made of impact-resistant plastic, which protects the light even in demanding operating environments.
