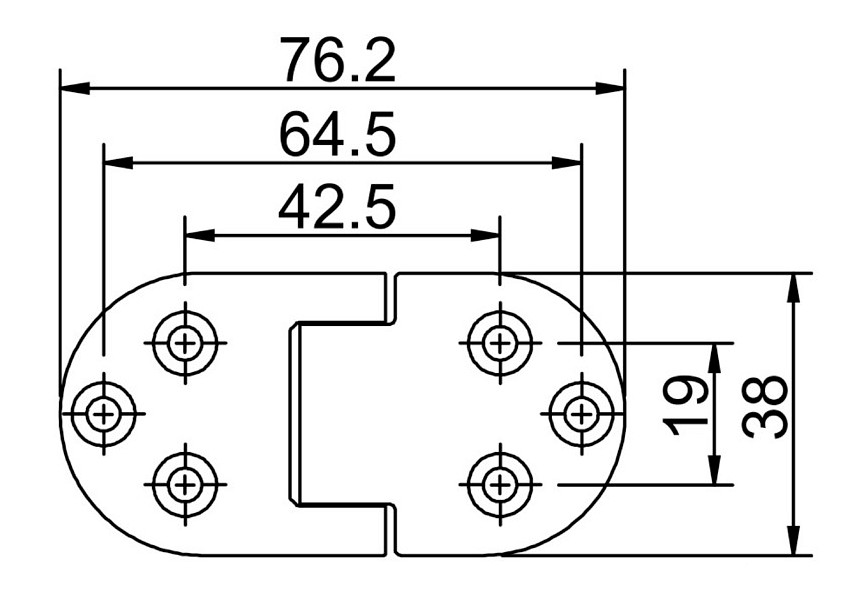

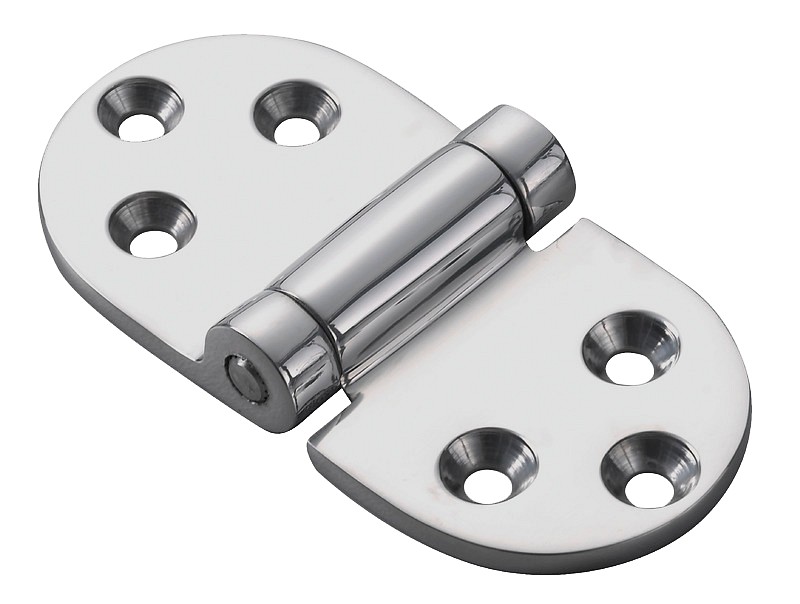

HINGE 76.2x38MM

The hinge has a torque of 30 kg·cm ± 15%, which is maintained for up to 20,000 operations. The torque is expressed in kg·cm, which means that the force required decreases as the distance from the hinge axis increases.

Torque calculation formula:
Door depth (cm) x ½ door weight (kg)

Example:

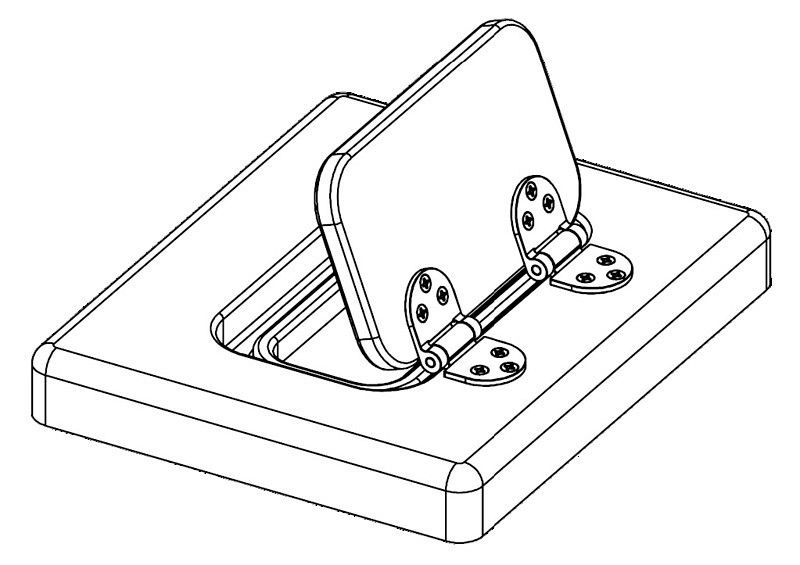

Two 30 kg·cm torque hinge mechanisms will perfectly support a door weighing 2 kg and 40 cm deep.
