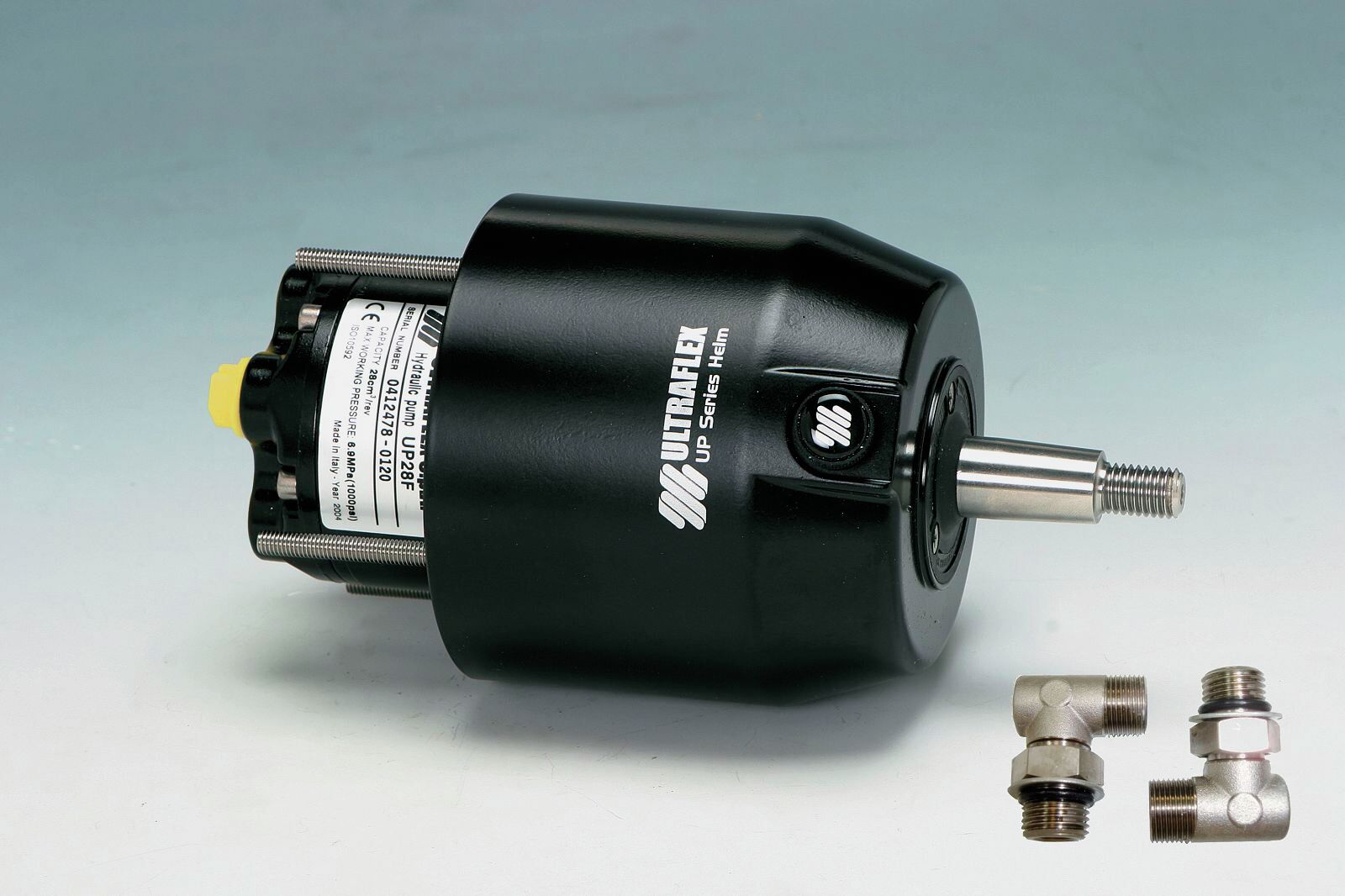

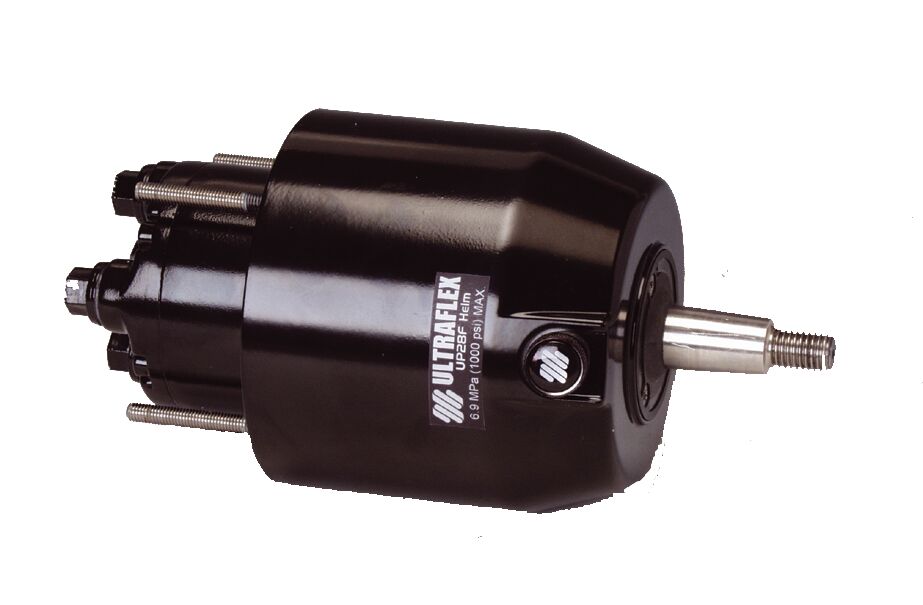

HYDRAULIC PUMP 25CM3
821,44 €
Front mounted rudder steering pump.
Ultraflex hydraulic pumps are made of the most corrosion resistant materials for the purpose. The body is made of aluminum and the steering wheel shaft is made of stainless steel, weight 5 kg. Can be mounted directly on the steering console, or use the X64 (9513200155) or X57 (9513200157) mounting kits to move the steering wheel closer to the console.
FEATURES:
• Compact design
• Piston ball bearing race
• Built-in lock valve for rudder locking
• Built-in pressure relief valve protects against overpressure
• 3/4” conical stainless steel shaft
• Lock valve and shaft seal easily replaceable
• Includes 90° adjustable connectors for 3/8” pipe
• Output 25 cm3
• Pistons: 5
• Check valve 70 Bar – 1000 psi
| Svars | 5,02 kg |
|---|---|
| Technical name | 42462D |
