HYDRAULIC STEERING PACKAGE <115HP

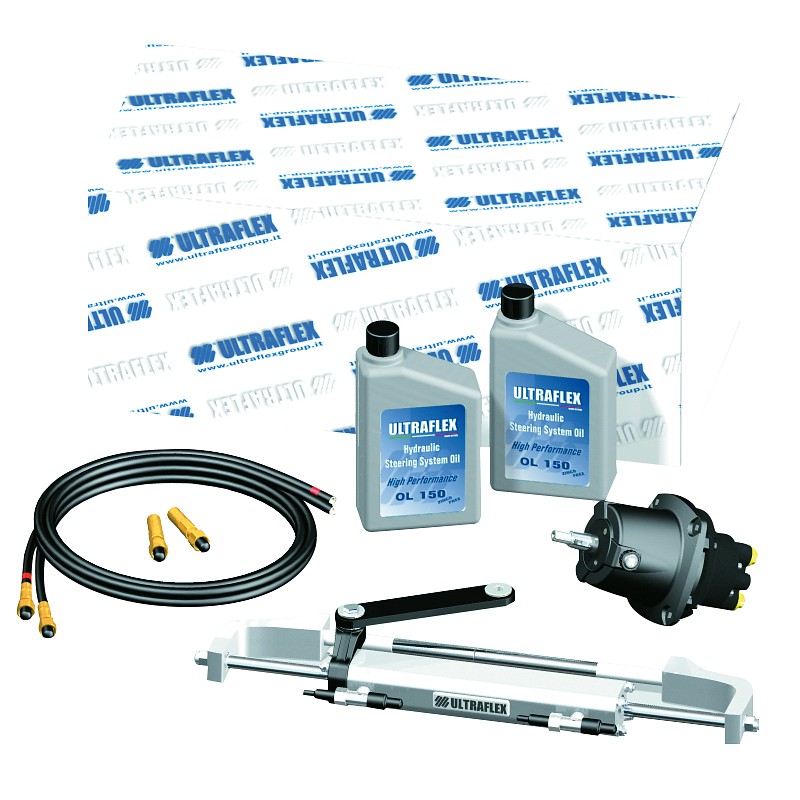

Package includes:
UP18 hydraulic pump: This lightweight composite plastic pump delivers 18 cm³ of oil and operates at a working pressure of 55 bar (800 PSI).

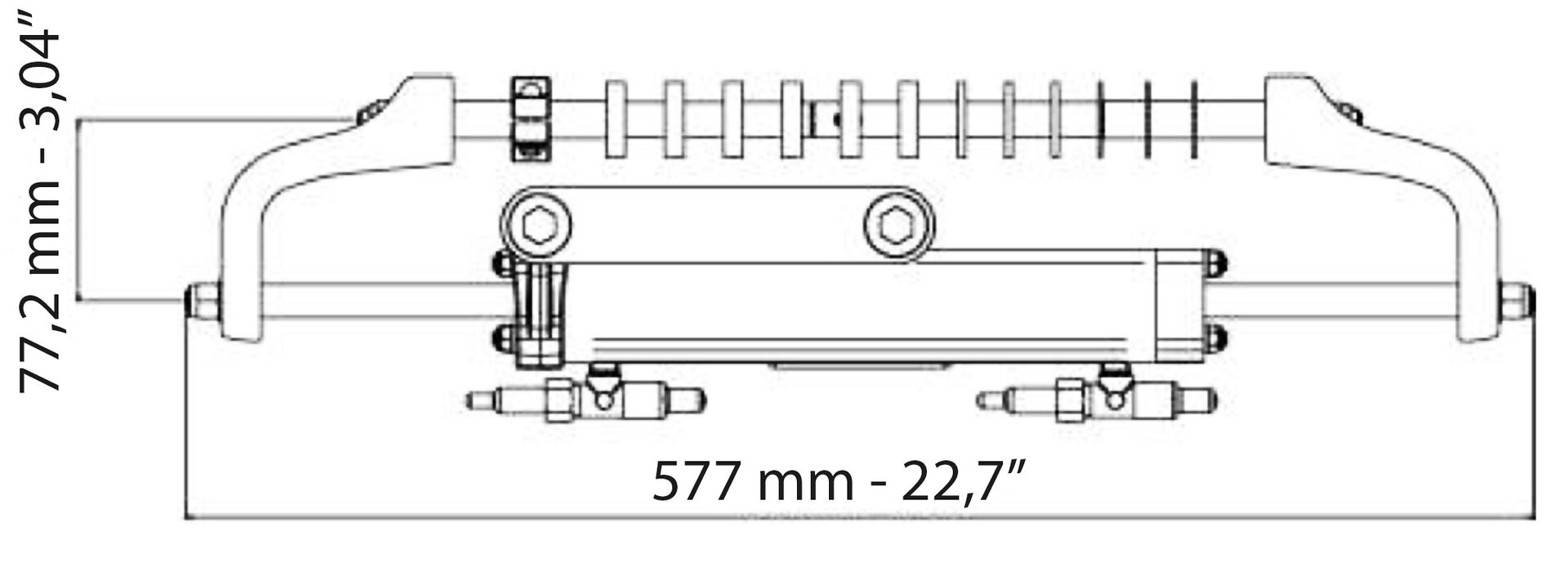

UC81-OBF hydraulic cylinder: The front-mounted “bullhorn” cylinder has a displacement of 81 cm³ and a stroke of 186 mm.
Hydraulic hoses: Two 6-meter-long Ø 1/4” ID hydraulic hoses are included, with a connector pre-pressed at one end. The required amount of oil is also included.
Connectors: The package also includes two 1/4” ID connectors.

This control package is suitable for a variety of outboard motors, including Mercury, Mariner (75, 90, 115, Optimax 2 T) and Honda BF (115A, 130A, 4T). Steering 4.5 turns over the full cylinder travel. Maximum steering wheel diameter can be 508 mm.
