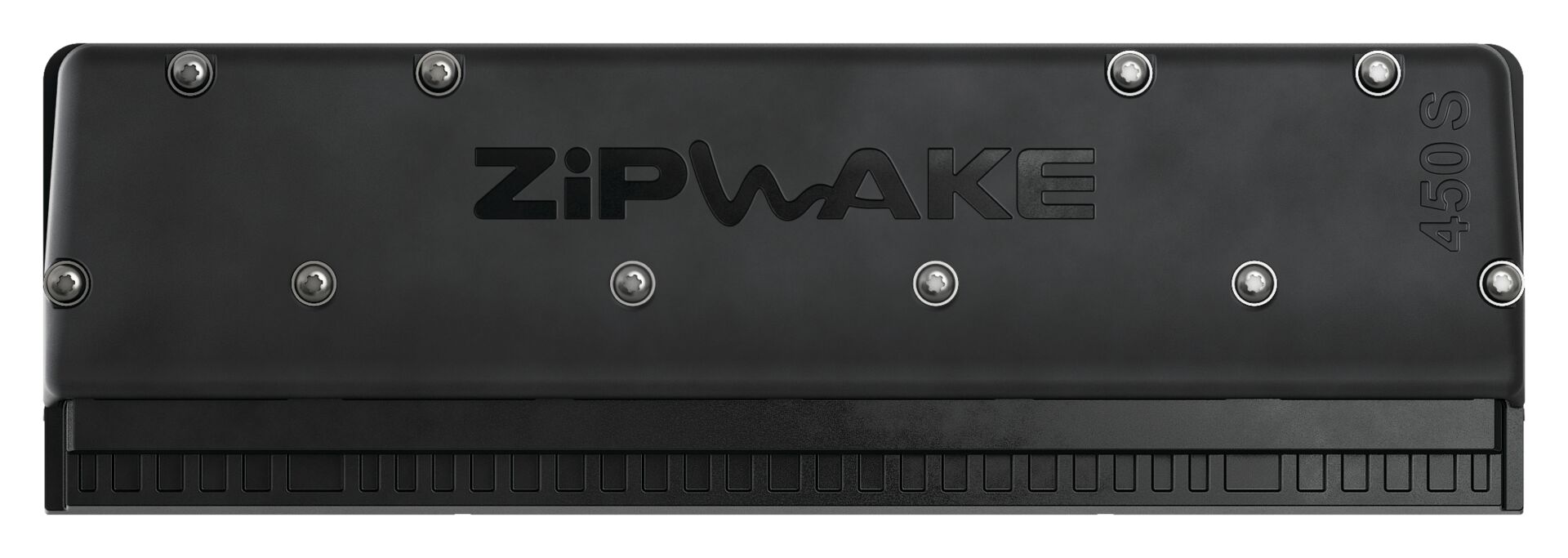

IT450-S TRIM CONTROLLER 450MM + CABLE 3 M

TECHNICAL DATA:

Model: IT450-S
Length: 450 mm
Weight: 2.8 kg
Max. boat speed: 60 knots
Blade stroke: 30 mm (1.2 in)
Blade speed: 20 mm/s (0.8 in/s)
Thru-hull connection: Concealed or above waterline
Servo actuator: SU-S
Cable length: 3 m (10 ft), extendable up to 6 m (20 ft)
Cable material: PUR
Connector: M12 5-pin round
Connector diameter: 14.5 mm (0.57 in)
Operating voltage: 12 – 32 VDC
Power consumption: 25 W max
Operating temperature: 0° … +40°C (+32° … +104°F)
Storage temperature: -40° … +90°C (-40° … +194°F)
Protection rating: IP68 5 m (16 ft)
Compliance: CE, FCC
Connector diameter: 14.5 mm (0.57 in)
