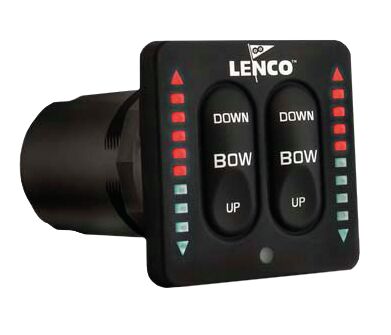

LED SWITCH PANEL 12/24V
577,52 €

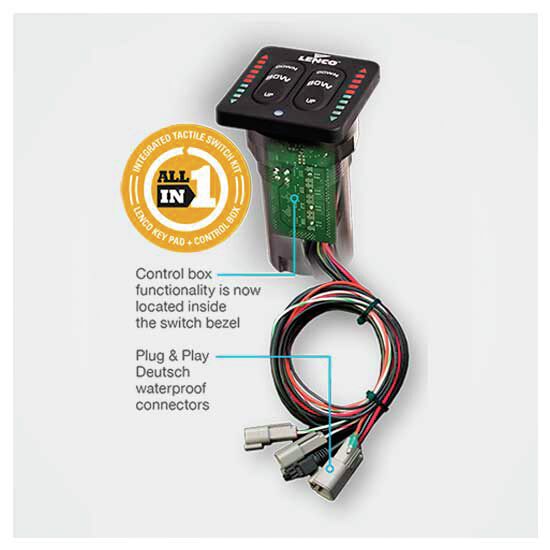

Complete your Lenco trim level system with the latest maintenance-free (ALL-IN-ONE) control panel with integrated tactile switches. The new type of switch improves accuracy and allows the control electronics to be integrated into the key frame.
The LED indicator lights up and accurately indicates the position of the trim levels. The backlit keyboard turns on automatically at dusk. The light sensor measures the ambient light and adjusts the indicator light intensity accordingly.
Key Features:
• Simple and fast Plug & Play installation
• Instant response
• Built-in indicator
• Low profile design

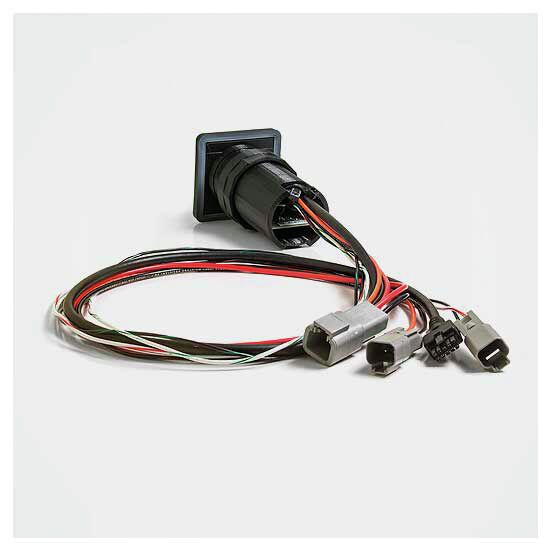

• All-in-one keyboard with waterproof Plug & Play Deutsch connectors
• Cable bundle length 30′ (76.2 cm) from the back of the switch panel

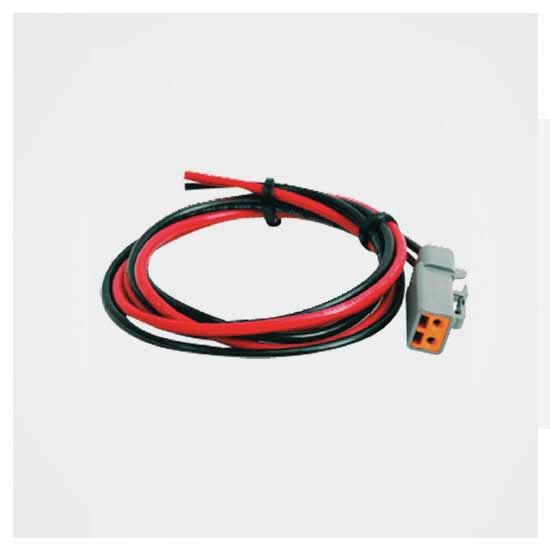

• 36′ power supply cable

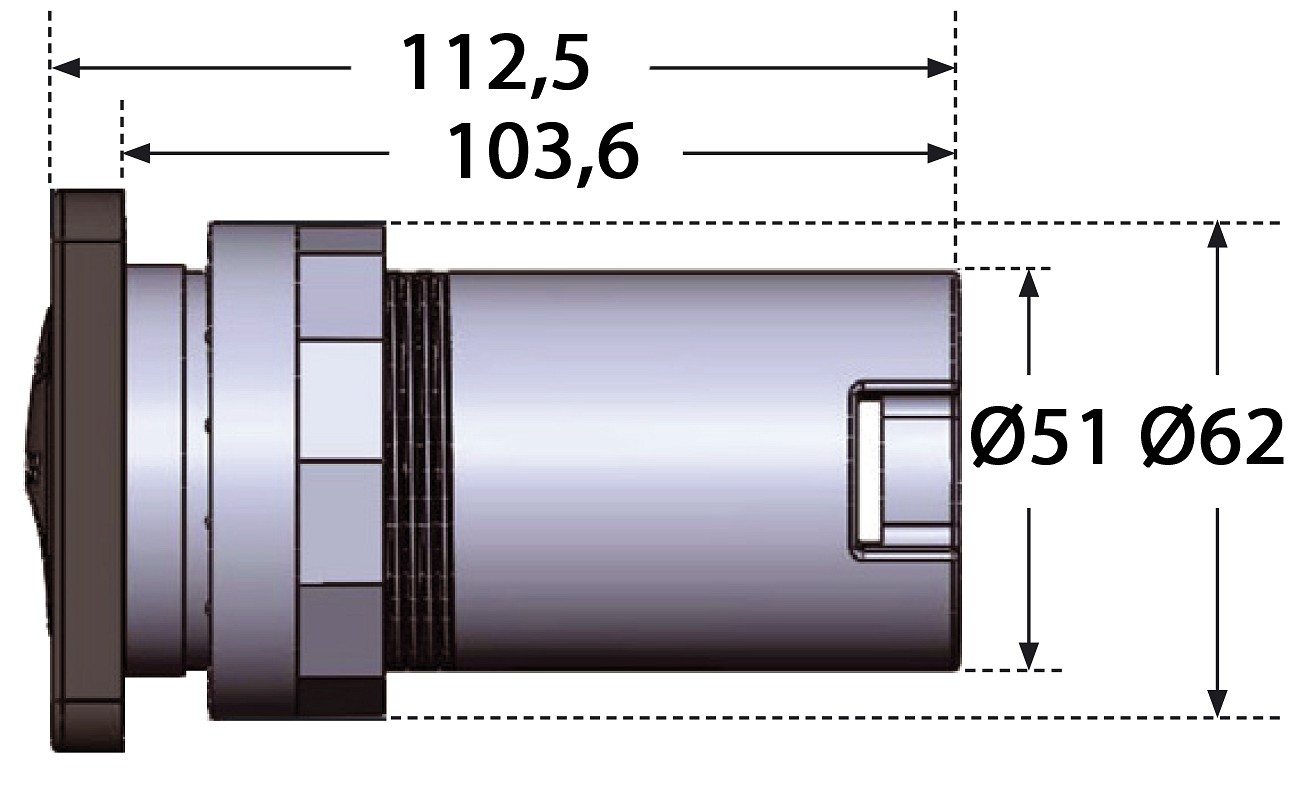

• 2 1/16′ mounting hole, keyboard outer dimensions 2.5′ x 2.75′
• 4.08′ of free space behind the keyboard to allow for installation
• 2 powerful LED indicators indicate the position of the trim tabs in real time
• Photo Eye light sensor adjusts the light to suit all conditions
• Backlit keyboard allows for optimal viewing angle even at night
• Self-check function
• Built-in Control Box
• Automatic trim tab return to the up position when power is applied when broken
• power cord 90 cm
| Svars | 0,75 kg |
|---|---|
| Technical name | 15170-001 |
