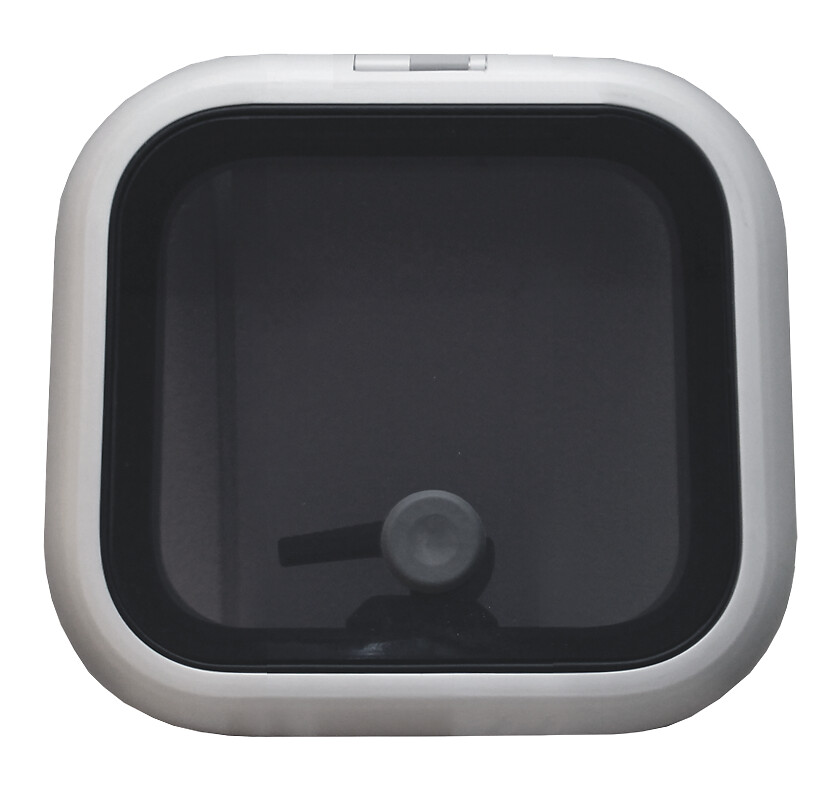

LEWMAR DOOR HATCH, LOW PROFILE, SIZE 00

Name: LEWMAR DOOR HATCH, LOW PROFILE, SIZE 00 - Marimen.com
SKU: 9512406302
Price: 457.37 EUR
Availability: InStock

553,42 €

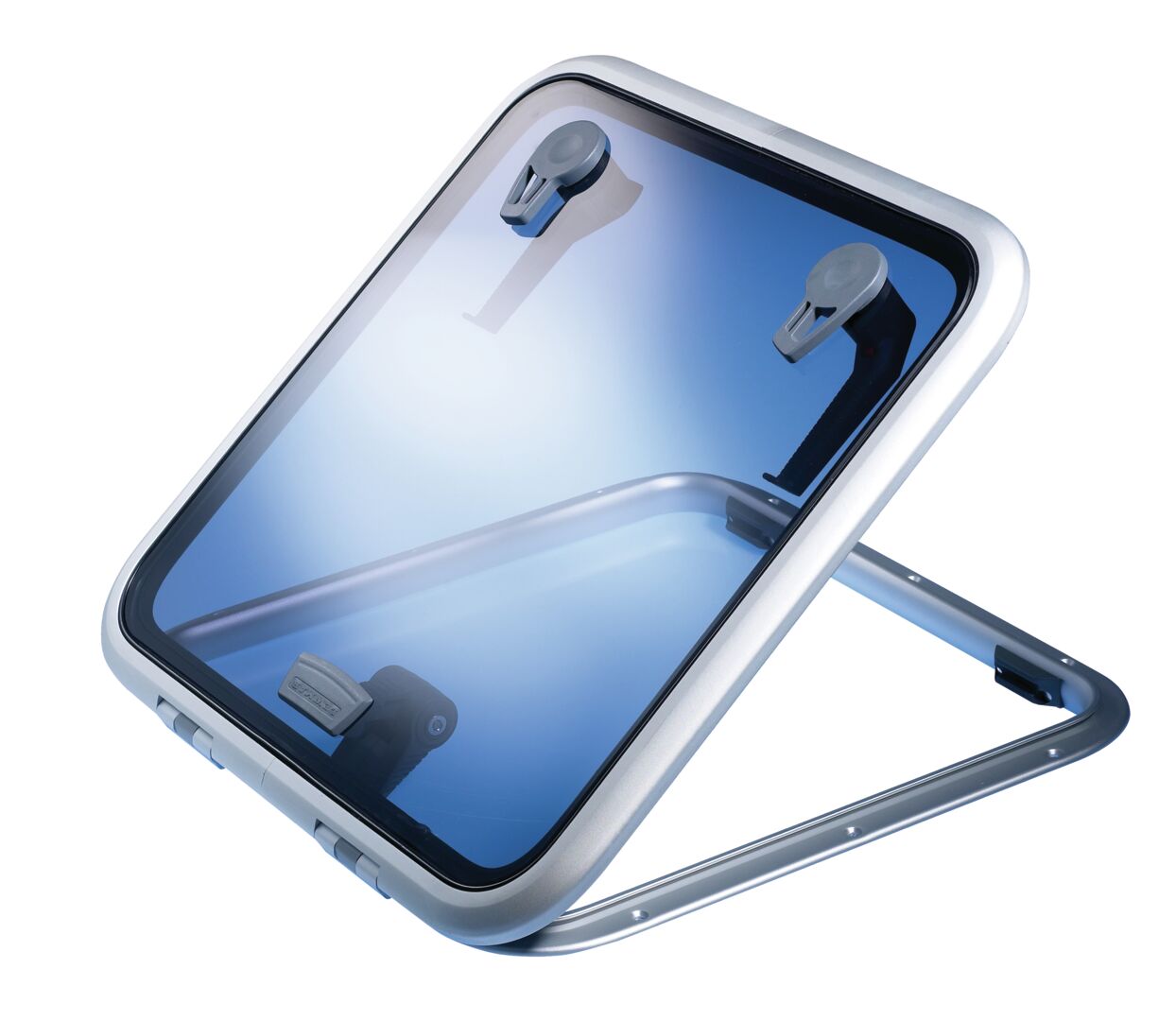

streamlined deck hatch ideal for powerboats, larger sailboats and pleasure craft. This deck hatch stands out for its strong construction, stylish design, ease of use and low maintenance. A unique sealing structure connects the acrylic to the supporting structure, and the acrylic can be easily replaced by removing four screws and sliding the parts apart.

• External handles allow the hatch to be opened from the deck if it is not locked
• Low profile hatches open 180°
• Friction levers hold the hatch open in any position up to 95°
• Anodized aluminum frame for corrosion resistance
• Curved upper frame profile for a modern style

SKU: 9512406302 Kategorijas: Deck hatches, Deck hatches, windows and curtains, Maritim, Refrigeration, cooling, water and air conditioning

Apraksts
Papildu informācija

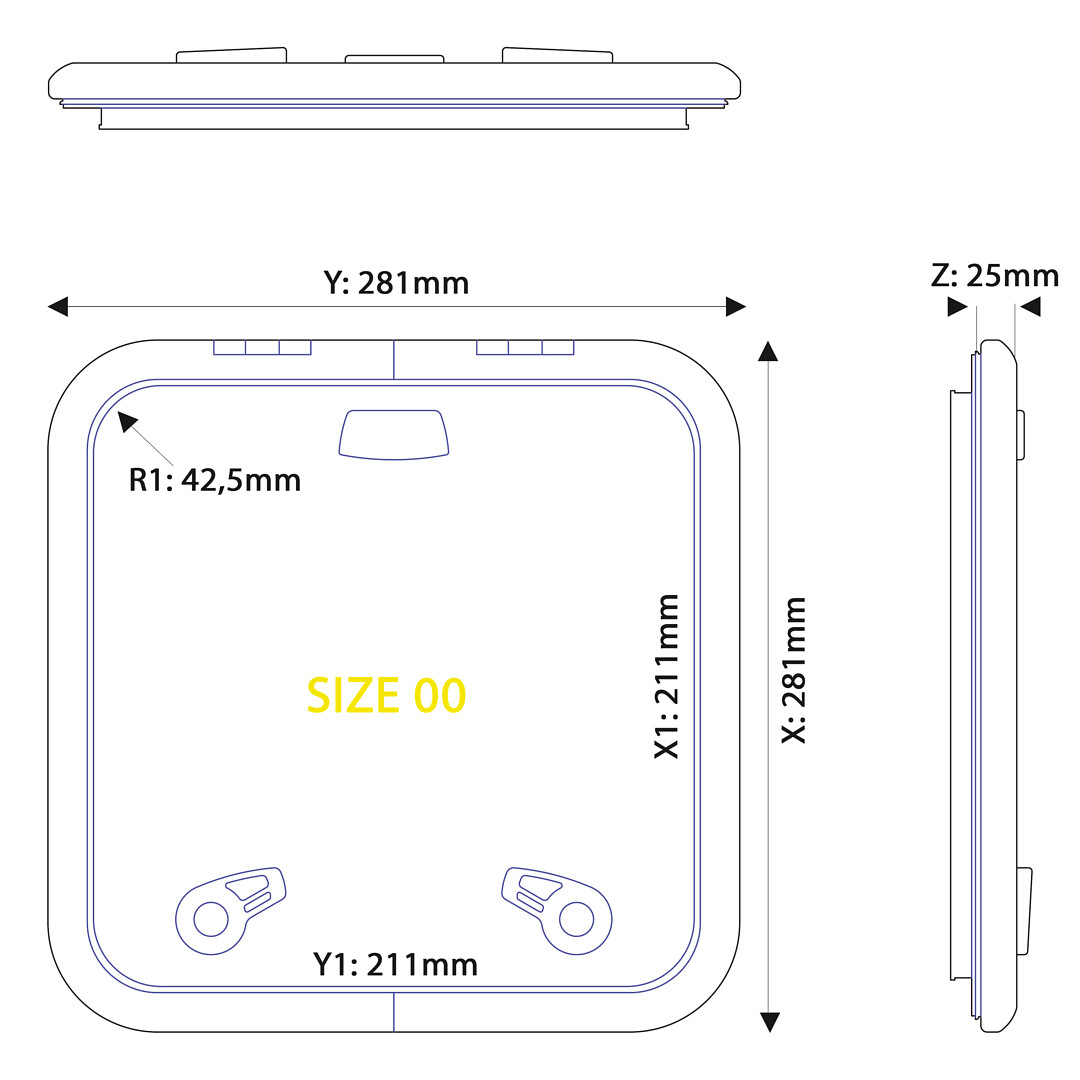

Technical data:
Size: 00
Mounting frame: 15 mm with edge
Acrylic color: Smoke gray
Acrylic thickness: 8 mm
Length X (mm): 281
Width Y (mm): 281
Height Z (mm): 25
Outer corner radius (mm): 72.5
Mounting length X1 (mm): 211
Mounting width Y1 (mm): 211
Mounting corner radius (mm): 42.5
Weight: 1.6 kg

NOTE! The door should be installed on a flat surface, +/- 1 mm tolerance allowed. Mounting size when using the hinge part (M6/1/4”).
