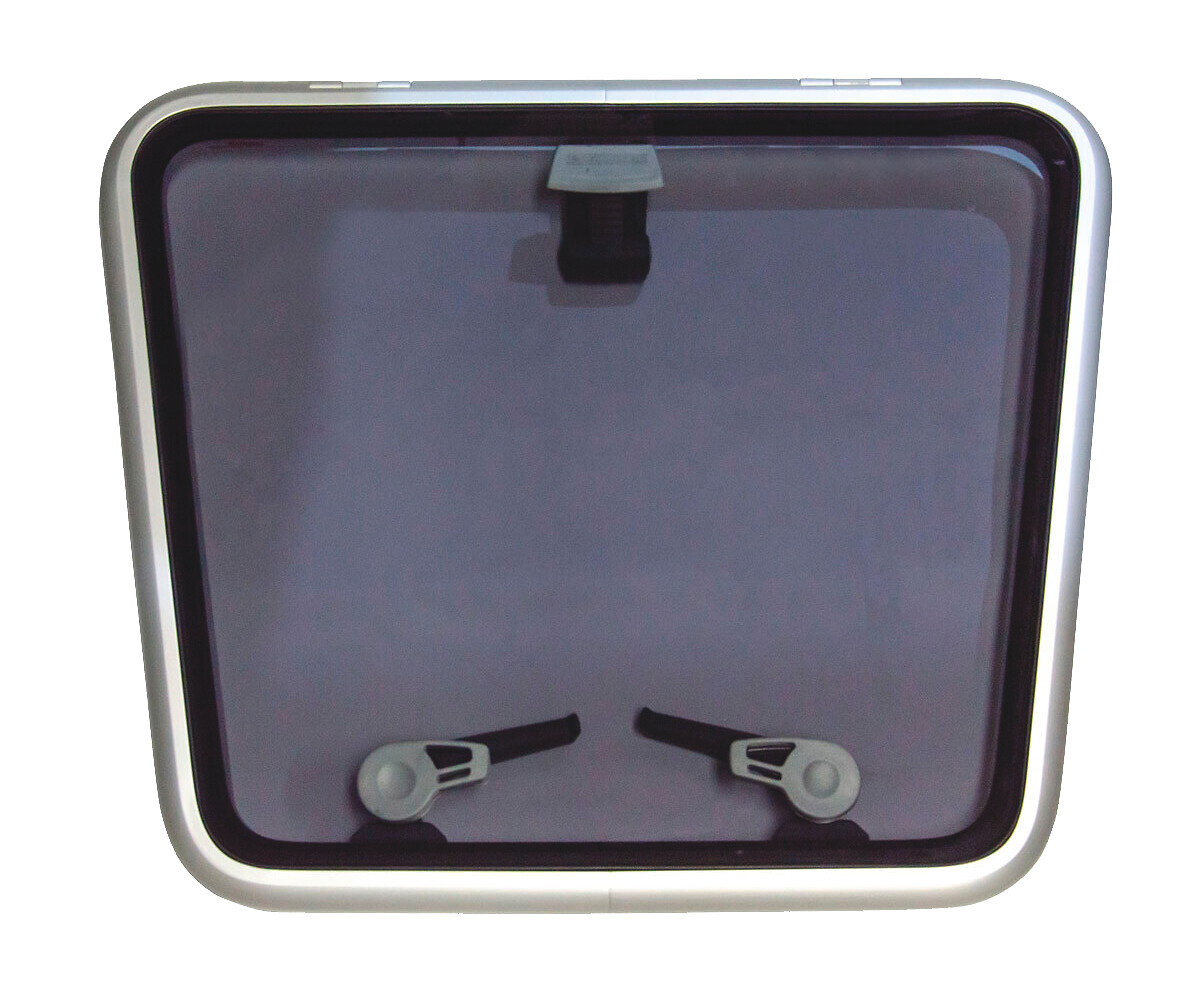

LEWMAR DOOR HATCH, LOW PROFILE, SIZE 65
1 133,83 €
streamlined deck hatch ideal for powerboats, larger sailboats and pleasure craft. This deck hatch stands out for its strong construction, stylish design, ease of use and low maintenance. A unique sealing structure connects the acrylic to the supporting structure, and the acrylic can be easily replaced by removing four screws and sliding the parts apart.
• External handles allow the hatch to be opened from the deck if it is not locked
• Low profile hatches open 180°
• Friction levers hold the hatch open in any position up to 95°
• Anodized aluminum frame for corrosion resistance
• Curved upper frame profile for a modern style
Technical data:
Size: 65
Mounting frame with 15 mm edge
Acrylic color: Smoke gray
Weight: 6.5 kg
Acrylic thickness: 10 mm
Length X (mm): 560
Width Y (mm): 560-675
Height Z (mm): 25
Outer corner radius (mm): 72.5

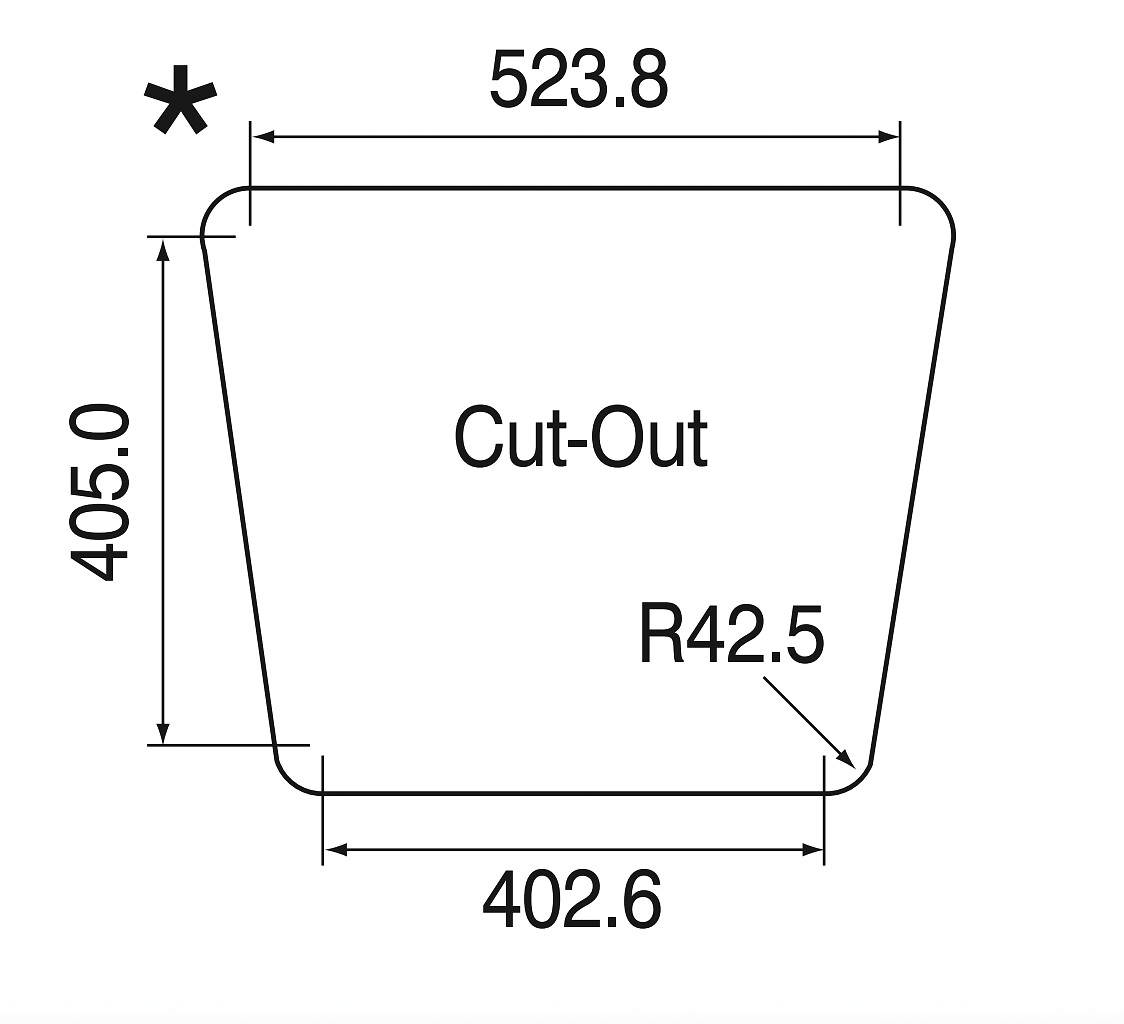

Installation length X1 and installation width Y1 (mm): See dimensional drawing
Installation corner radius (mm): 42.5
NOTE! The hatch should be installed on a flat surface, +/- 1 mm tolerance allowed.
| Svars | 6,6 kg |
|---|---|
| Technical name | 39965030 |
