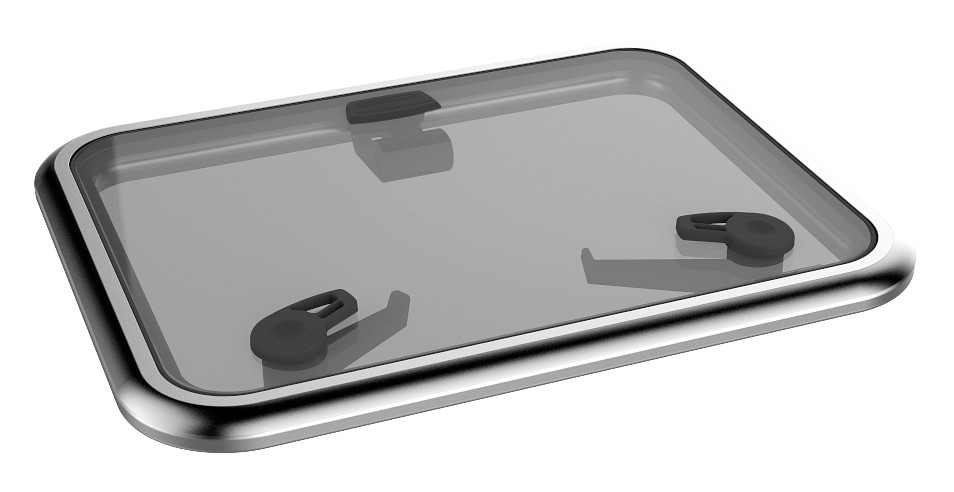

LEWMAR DOOR HATCH MEDIUM PROFILE SIZE 44
1 051,88 €
An ideal deck hatch suitable for larger sailboats and pleasure craft. The hatch features a strong construction, stylish design, ease of use and low maintenance. The unique sealing construction makes the acrylic part of the load-bearing structure. The acrylic can be easily replaced by unscrewing four screws and sliding the parts apart.

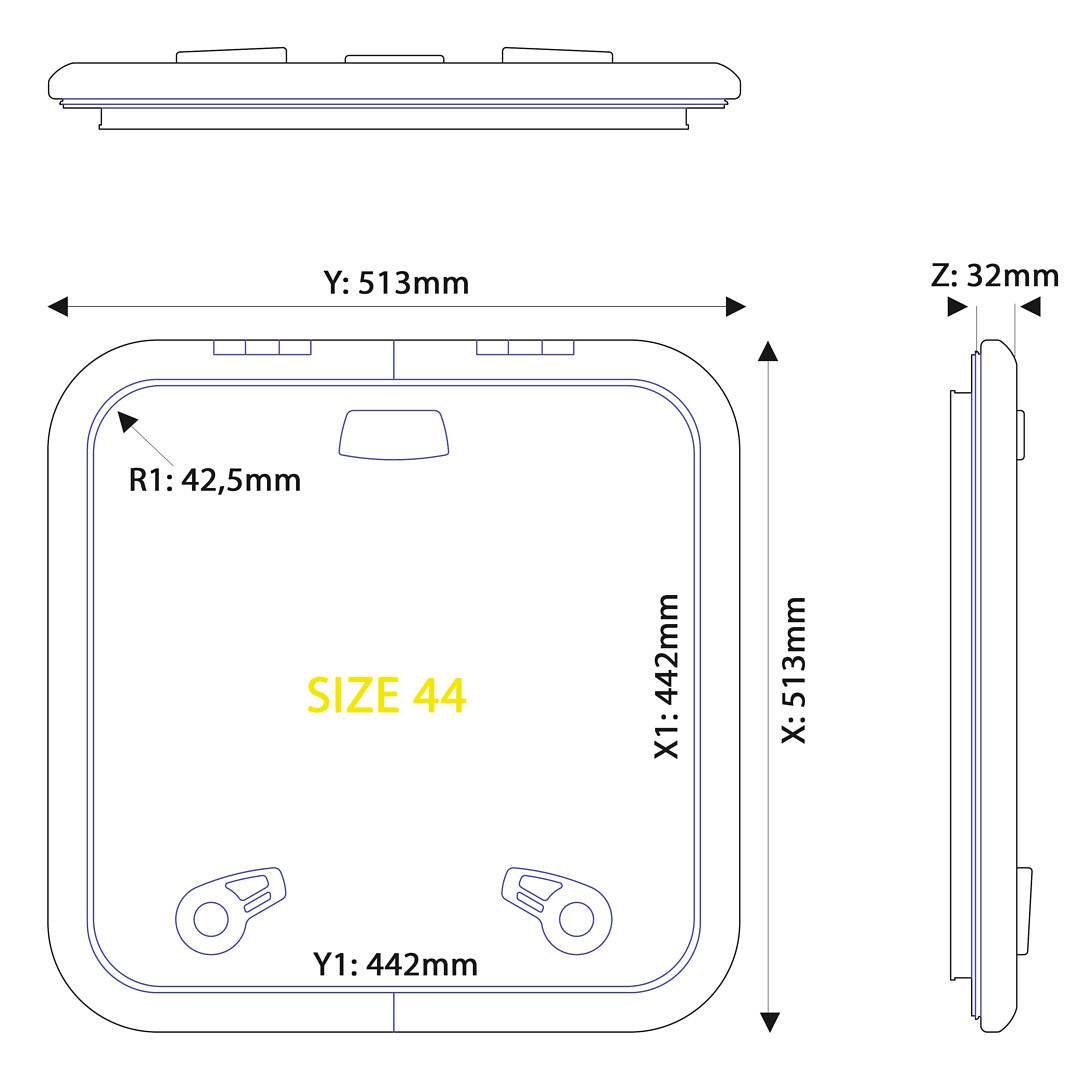

Technical data:
Size: 44
Acrylic color: Smoke gray
Acrylic thickness: 12 mm
Length X (mm): 513
Width Y (mm): 513
Height Z (mm): 32
Outer corner radius (mm): 72.5
Installation length X1 (mm): 442
Installation width Y1 (mm): 442
Installation corner radius (mm): 42.5
NOTE! The hatch should be installed on a flat surface, +/- 1 mm tolerance allowed.
| Svars | 6,5 kg |
|---|
