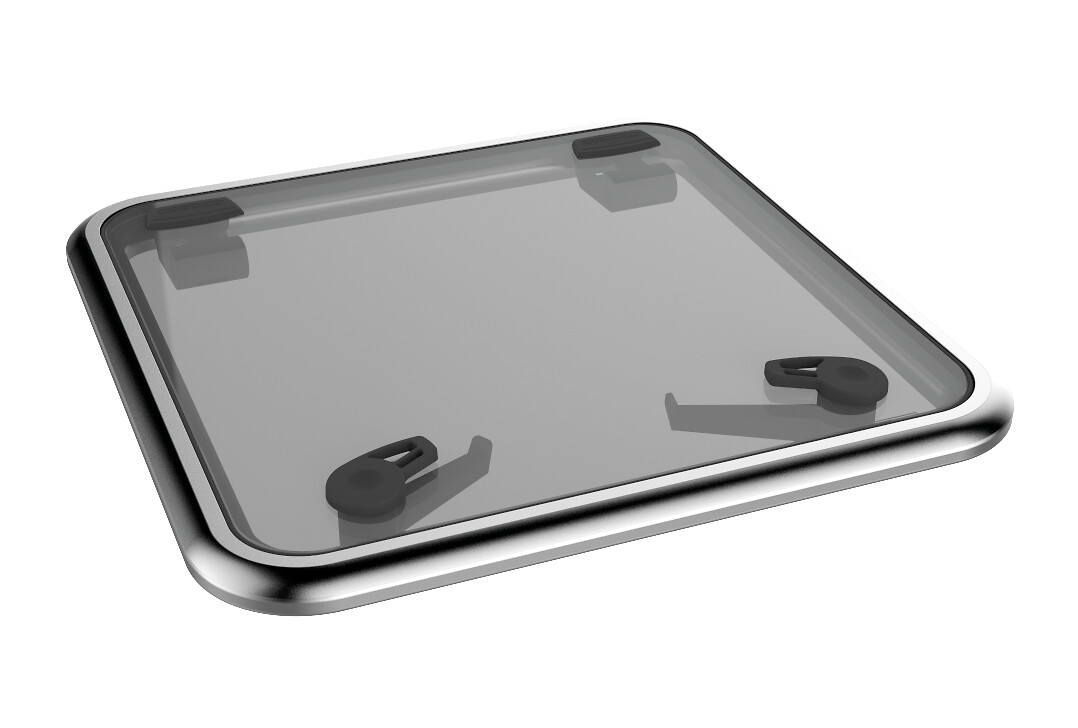

LEWMAR DOOR HATCH MEDIUM PROFILE SIZE 70
1 688,22 €
An ideal deck hatch suitable for larger sailboats and pleasure craft. The hatch features a strong construction, stylish design, ease of use and low maintenance. The unique sealing construction makes the acrylic part of the load-bearing structure. The acrylic can be easily replaced by unscrewing four screws and sliding the parts apart.
Technical data:
Size: 70
Mounting frame: 15 mm with edge
Acrylic color: Smoke gray
Acrylic thickness: 12 mm

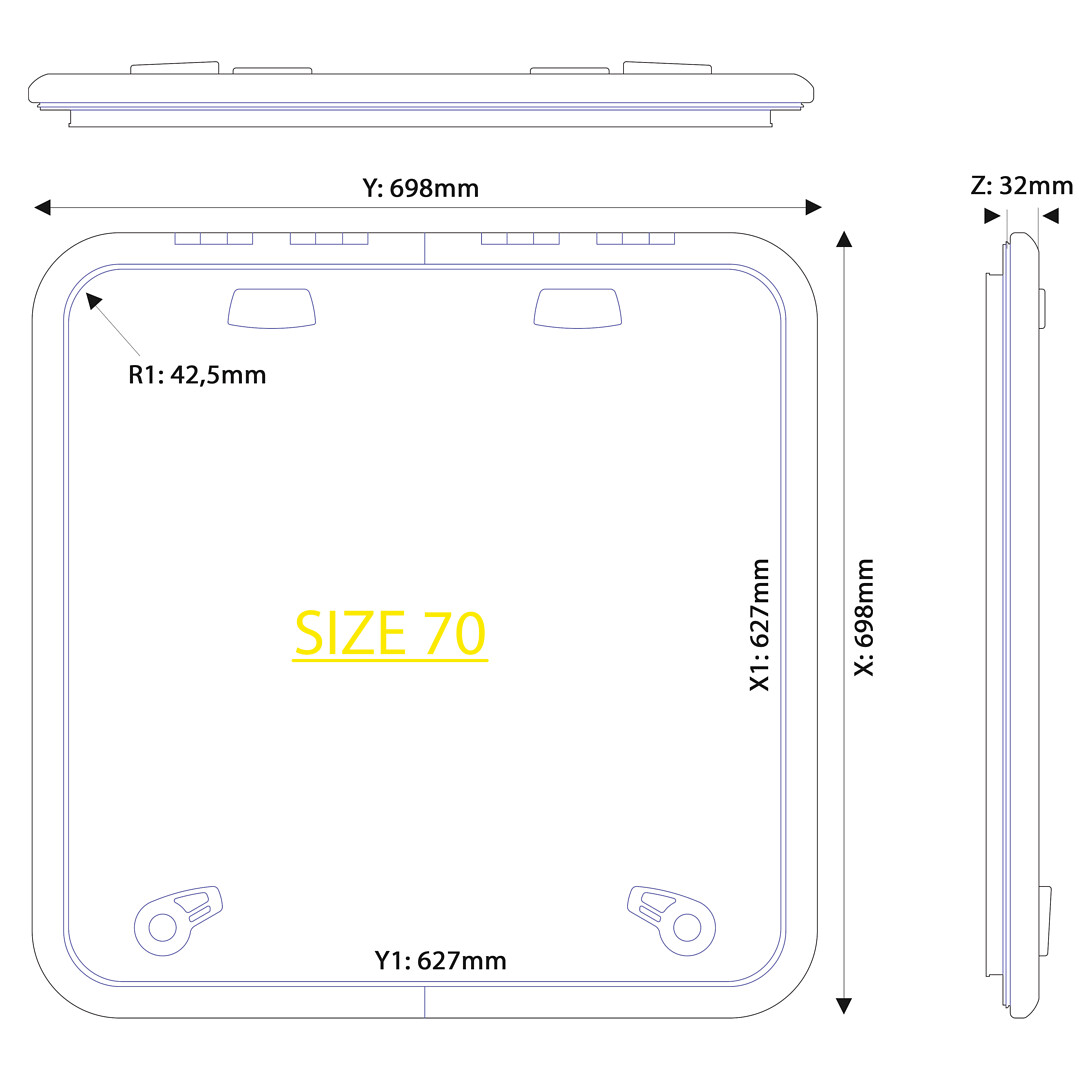

Length X (mm): 698
Width Y (mm): 698
Height Z (mm): 32
Outer corner radius (mm): 72.5
Installation length X1 (mm): 627
Installation width Y1 (mm): 627
Installation corner radius (mm): 42.5
Weight: 10.6 kg
NOTE! The door should be installed on a flat surface, +/- 1 mm tolerance allowed.
| Svars | 10,5 kg |
|---|---|
| Technical name | 39970020 |
