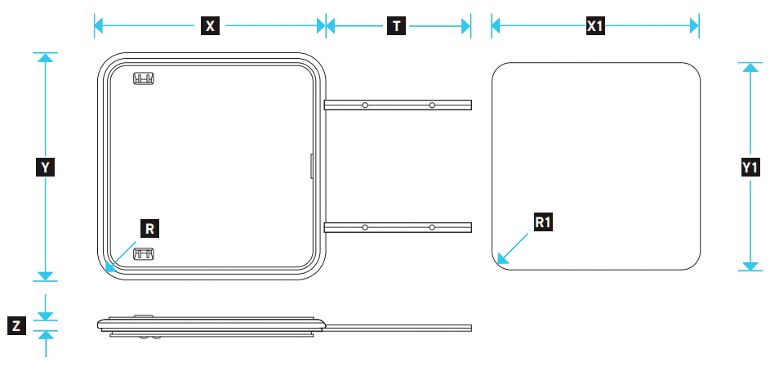

X= 495 mm (width)
Y= 491 mm (length)
Z= 29 mm (height)
R= 73 mm (outer radius)
T= 284 mm (rail length)
X1= 421 mm (installation width)
Y1= 421 mm (installation length)
R1= 42.5 mm (installation radius)

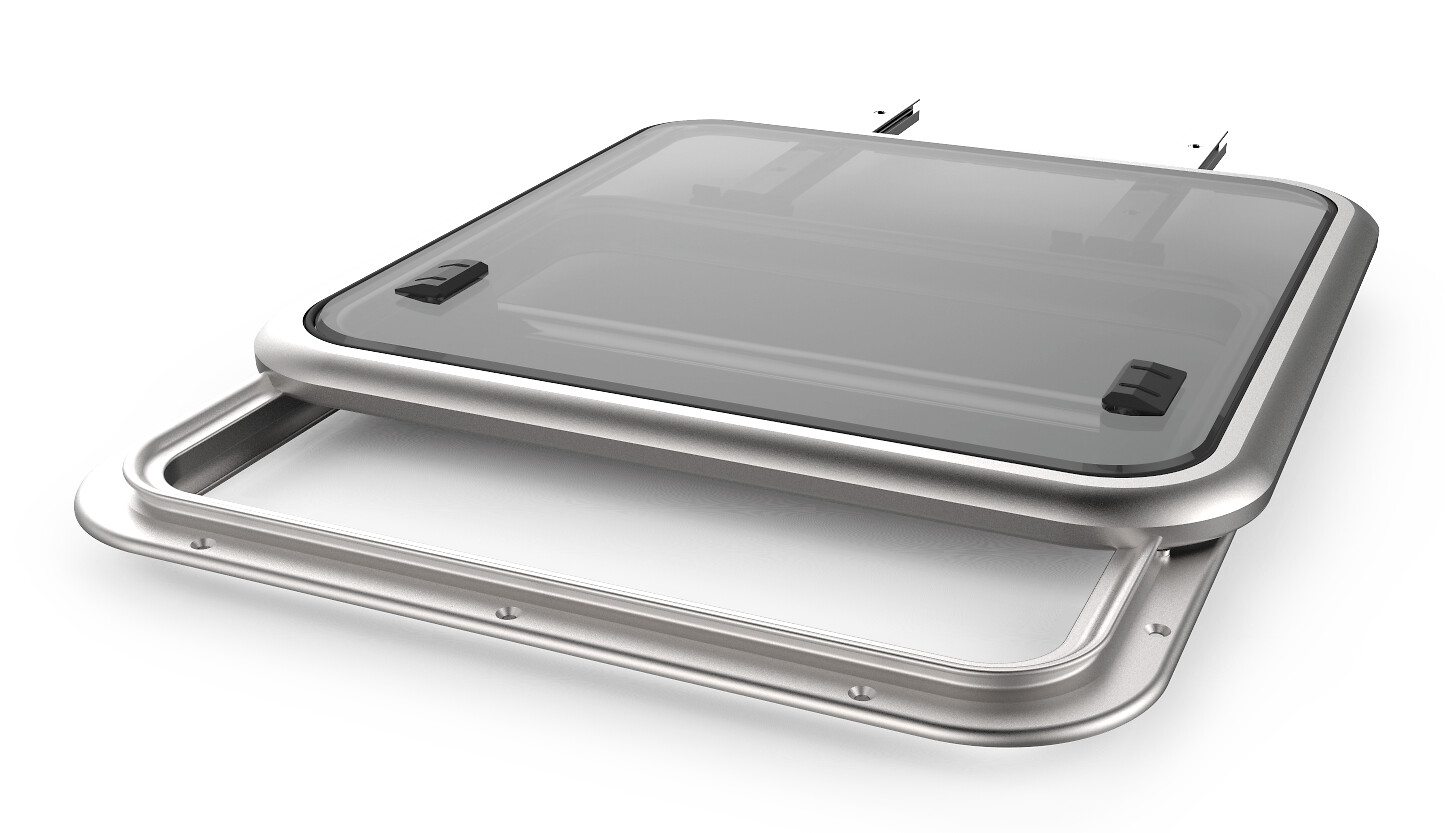

LEWMAR PILOT HATCH 40 SLIDING HATCH
1 517,56 €
Lewmar Pilot Hatch smoke grey, size 40. An excellent roof hatch solution for a motorboat. The hatch slides on rails, can be locked in the open and closed position. Locked with a long latch from the inside. The hatch should be installed on a flat surface, maximum tolerance +/- 1 mm. The hatch cannot be opened from the outside. Intended for use only in the cockpit or cabin roof, not suitable for use on deck. Acrylic window thickness 8 mm, CE approved.
