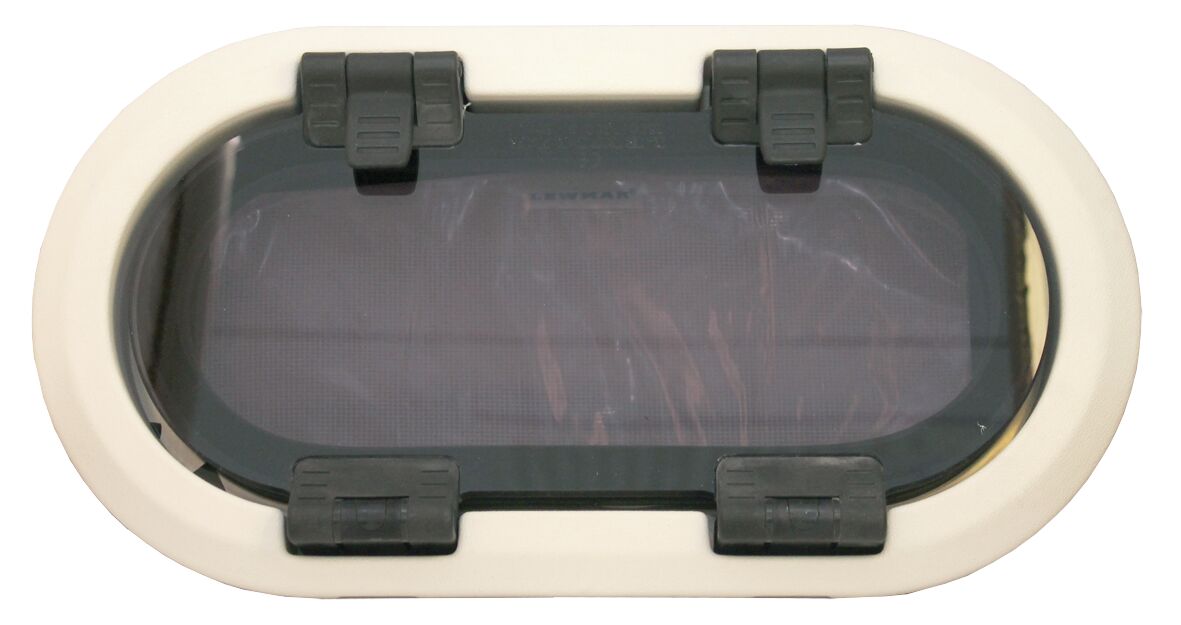

LEWMAR WINDOW, SIZE 7RE OPENING

Name: LEWMAR WINDOW, SIZE 7RE OPENING - Marimen.com
SKU: 9512405254
Price: 460.56 EUR
Availability: InStock

557,28 €

Lewmar casement windows have polished AISI316 stainless steel outer frames and are finished with a chrome or white plastic strip on the inside. The handles and hinges are positioned so that in addition to a clean and modern look, the view from the window is as unobstructed as possible. When closed, the window handles apply the right pressure evenly to the seal. The handles cannot vibrate open when they are in the closed position.

SKU: 9512405254 Kategorijas: Deck hatches, windows and curtains, Maritim, Refrigeration, cooling, water and air conditioning, Windows and window vents

Apraksts
Papildu informācija

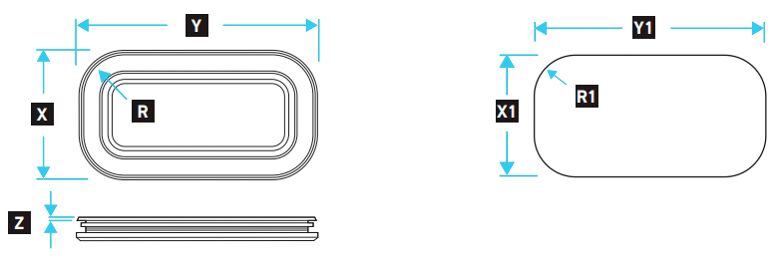

Technical data:
Size: 7RE
Acrylic thickness: 10 mm
Length X (mm): 191
Width Y (mm): 425
Height Z (mm): 4
Outer corner radius (mm): 95.5
Installation length X1 (mm): 171
Installation width Y1 (mm): 405
Installation corner radius (mm): 85.5
Weight: 1.9 kg

Windows are delivered complete with fasteners.

Opening angle 21 mm hull thickness has 165º.

CE approval
Sailing boats: class “A”, zone 2a.
Motorboat: class B, zone 1

Windows are recommended to be installed on a flat surface with a maximum tolerance of +/- 1 mm.
