LOW PROFILE DOOR HATCH, SIZE 44
960,29 €

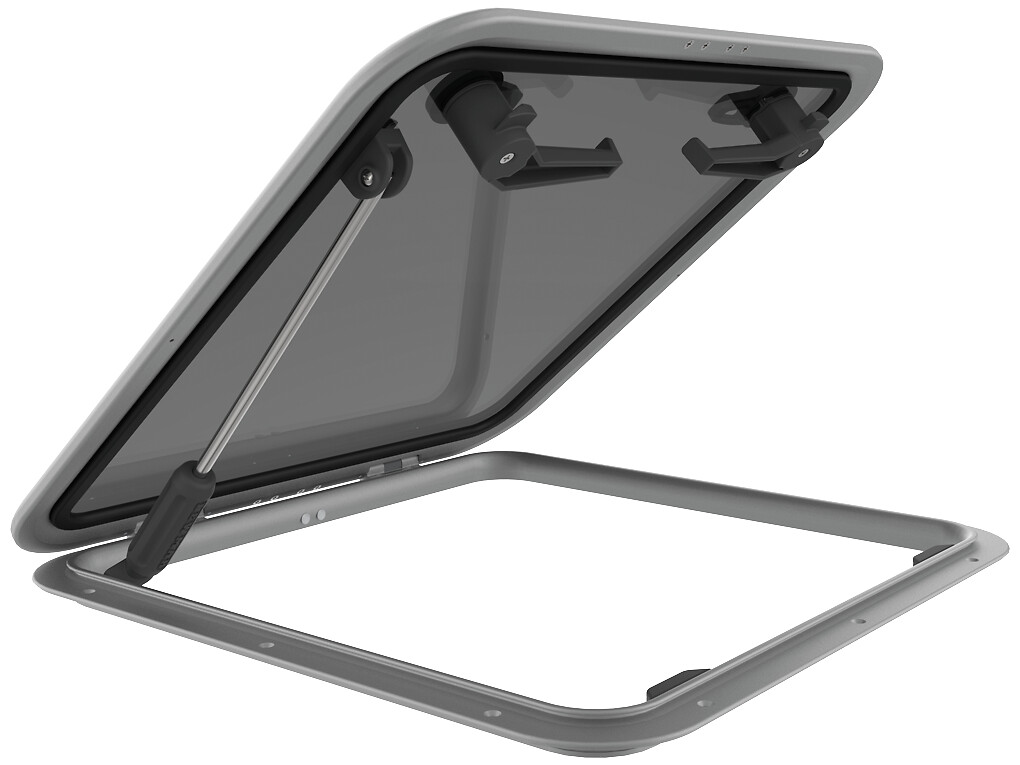

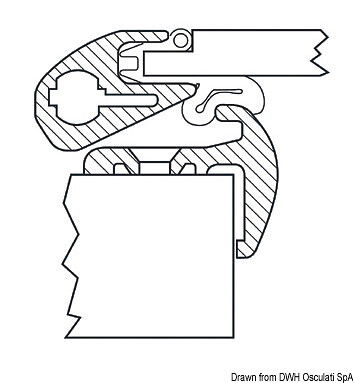

Ideal hatch for motorboats. Strong construction, stylish design, easy to use and low maintenance. Unique sealing structure makes the acrylic part of the load-bearing structure. The acrylic can be easily replaced by unscrewing 4 screws and sliding the parts apart. The hatch should be installed on a flat surface, tolerance +/- 1 mm allowed. Color smoke gray. With hatch holder.

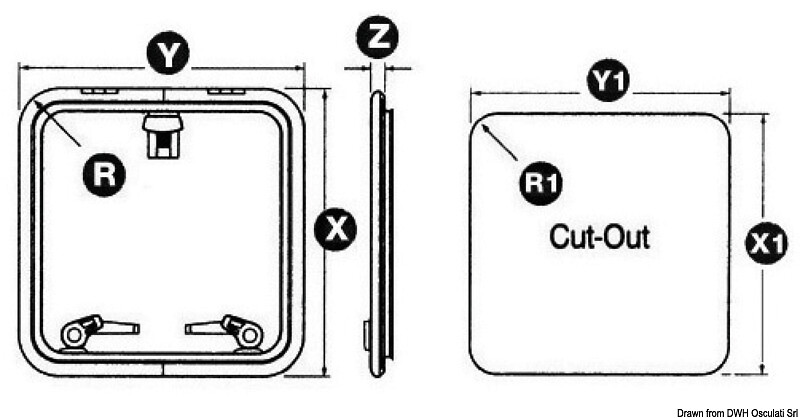

External dimensions: width 512 mm (Y), height 512 mm (X), depth 25 mm (Z), corner radius 72.5 mm (R). Dimensions of the opening to be cut: width 442 mm (Y1), height 442 mm (X1), corner radius 42.5 mm (R1). Acrylic thickness 8 mm. Edge 15 mm.
| Svars | 4,9 kg |
|---|---|
| Dimensijas | 512 × 512 × 512 mm |
| Technical name | 399440303 LP 44 GRY 15 SLV HAT |
