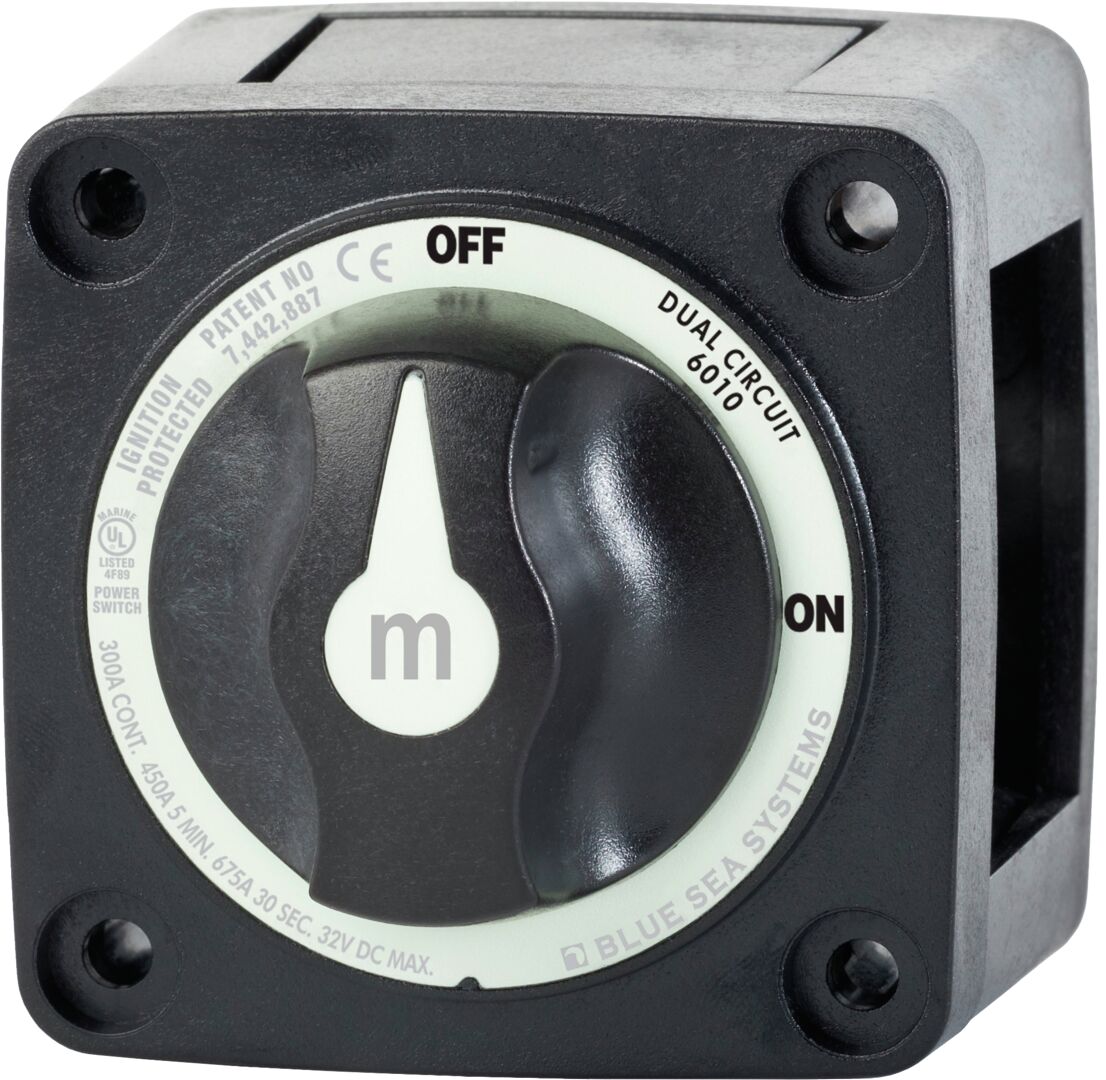

M-SERIES MINI DUAL MAIN POWER SWITCH ON-OFF-DUAL, BLACK

TECHNICAL DATA:
Switch type: Dual circuit
Color: Black
Switch positions: 2
Battery connection: No
Alternator field disconnect: No
Maximum voltage: 32 VDC
Terminal tightening torque: 13.56 Nm (120 in-lb)
Continuous current rating: 300 A
Intermittent current rating: 450 A (5 min)
Crank current rating 30 s: 675 A per circuit

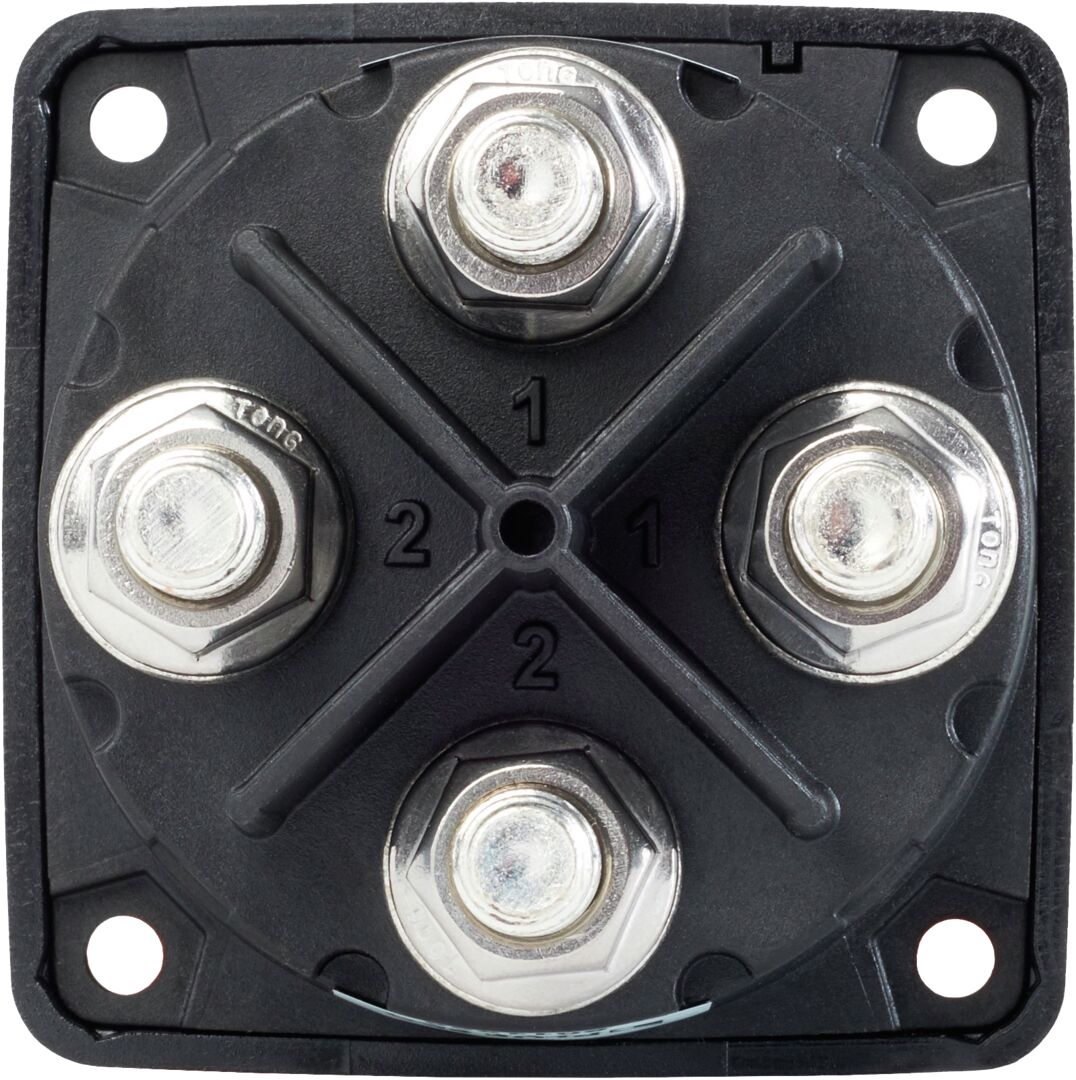

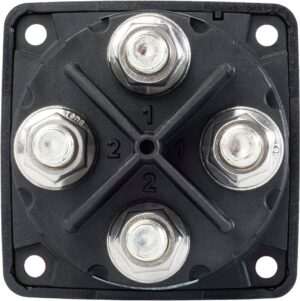

Battery inputs: 2 pcs
Cable clearance 4/0 AWG -for cables: 28.45 mm (1.12′)
Minimum cable size: 120mm² (4/0 AWG)
Mounting holes: compatible with #10 screws
Connector size: M10 (3/8′ – 16)
Weight: 0.36 kg (0.80 lbs)
