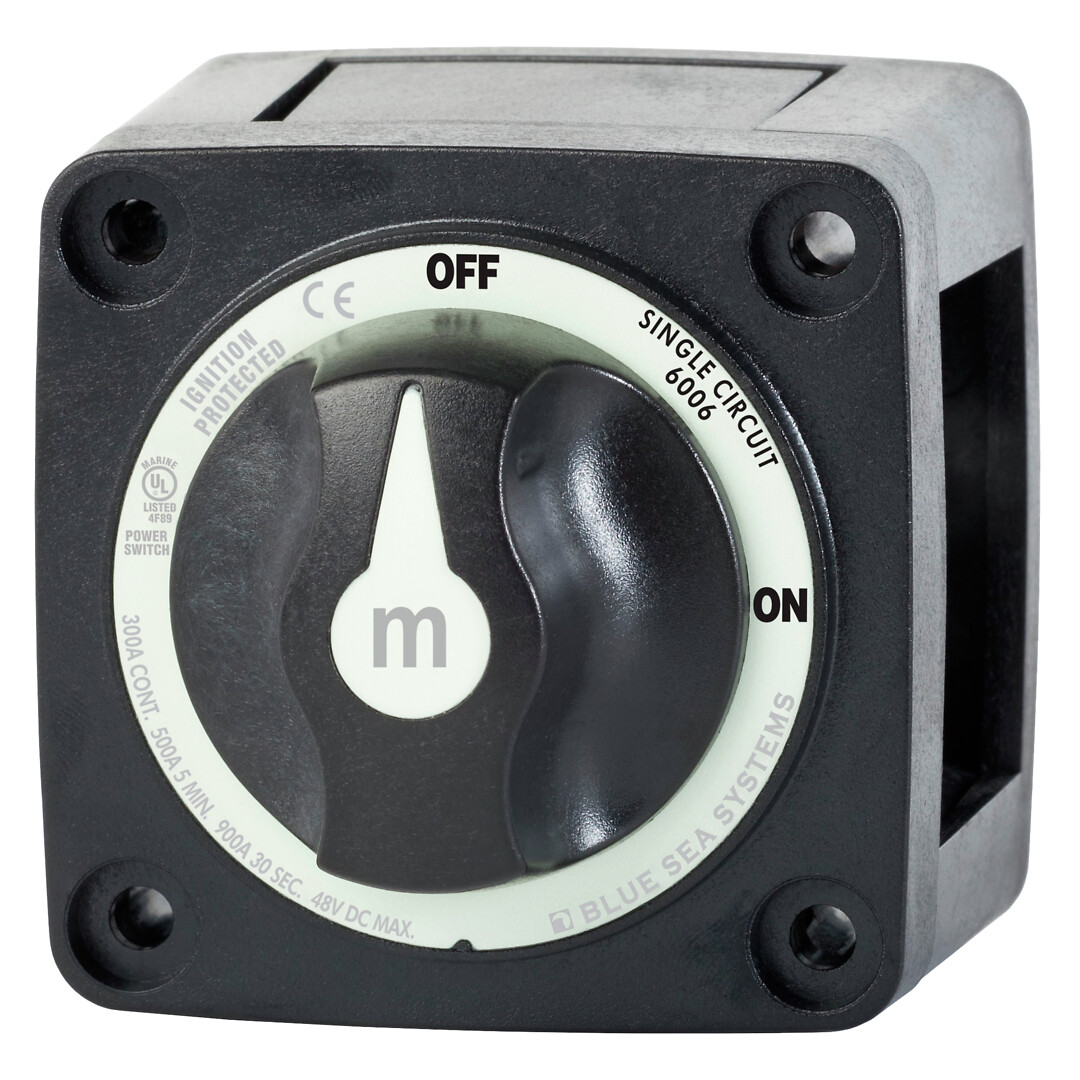

M-SERIES MINI ON-OFF MAIN POWER SWITCH, BLACK
47,24 €
Connection of one battery to one consumer group.
• Spark-proof — safe even on boats with gasoline engines

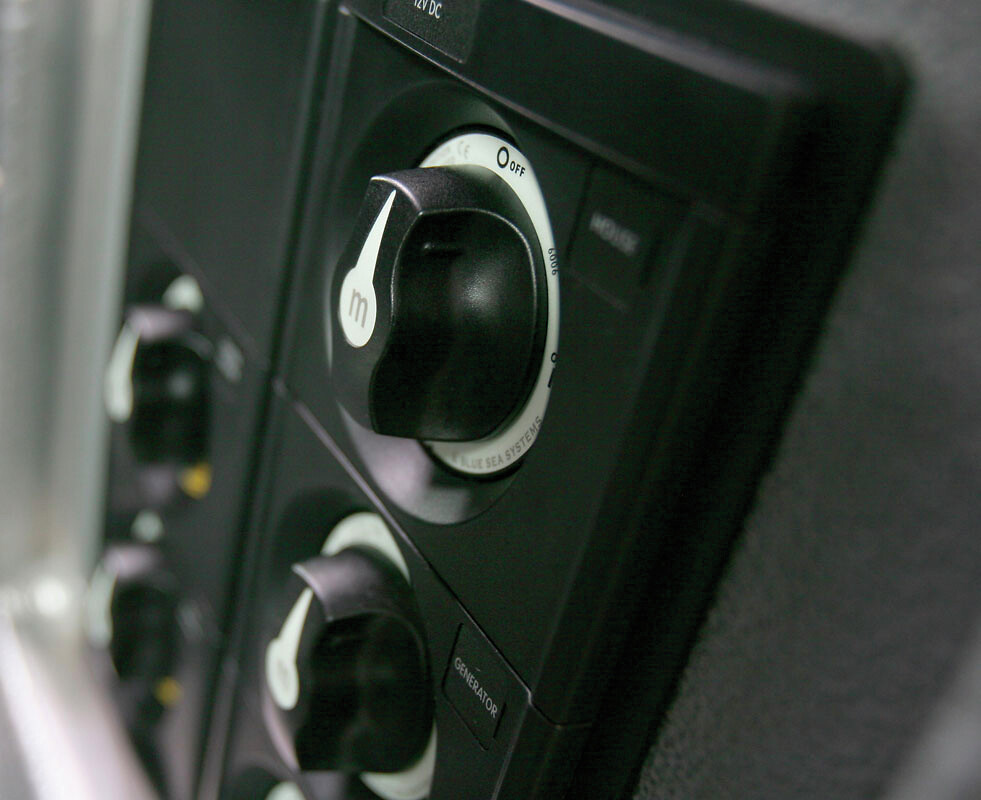

• Housing design allows surface mounting or installation on the front or back of the panel

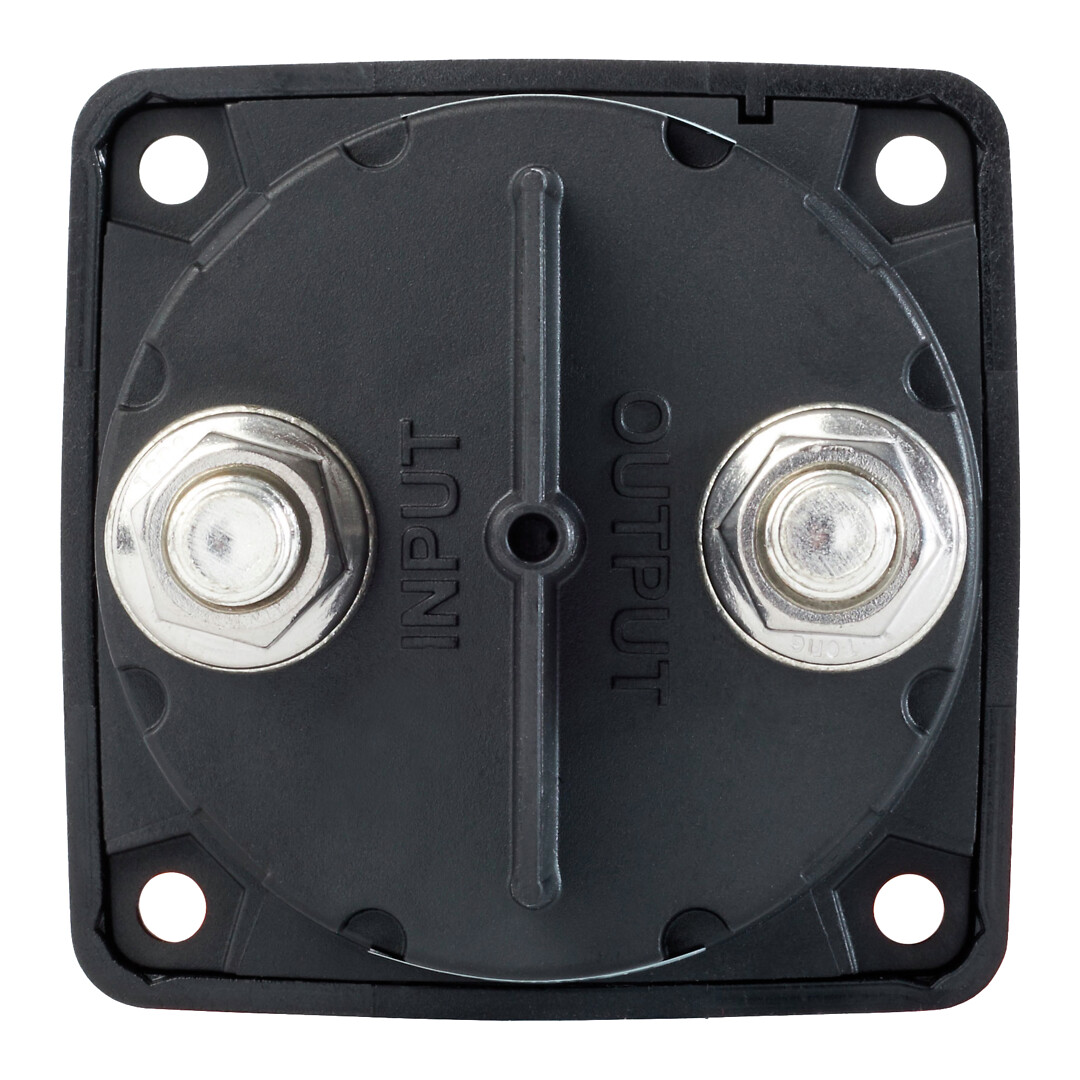

• Insulating cover with snap-on fastening protects the rear contacts
TECHNICAL DATA:
Switch type: Single pole ON-OFF
Color: Black
Number of switch positions: 2
Battery connection: No
Alternator disconnection: No
Maximum voltage: 48V DC
Connection nut torque: 13.56 Nm
Continuous current: 300A
Instantaneous current: 500A (5 min)
Starting current: 900A
Number of battery connections: 1
Cable opening for 107mm² cables: 28.45 mm
Required cable size: 107 mm²
Mounting hole size: suitable for #10 screw
Ring terminal size: M10
Weight: 300g
| Technical name | 6006200-BSS |
|---|
