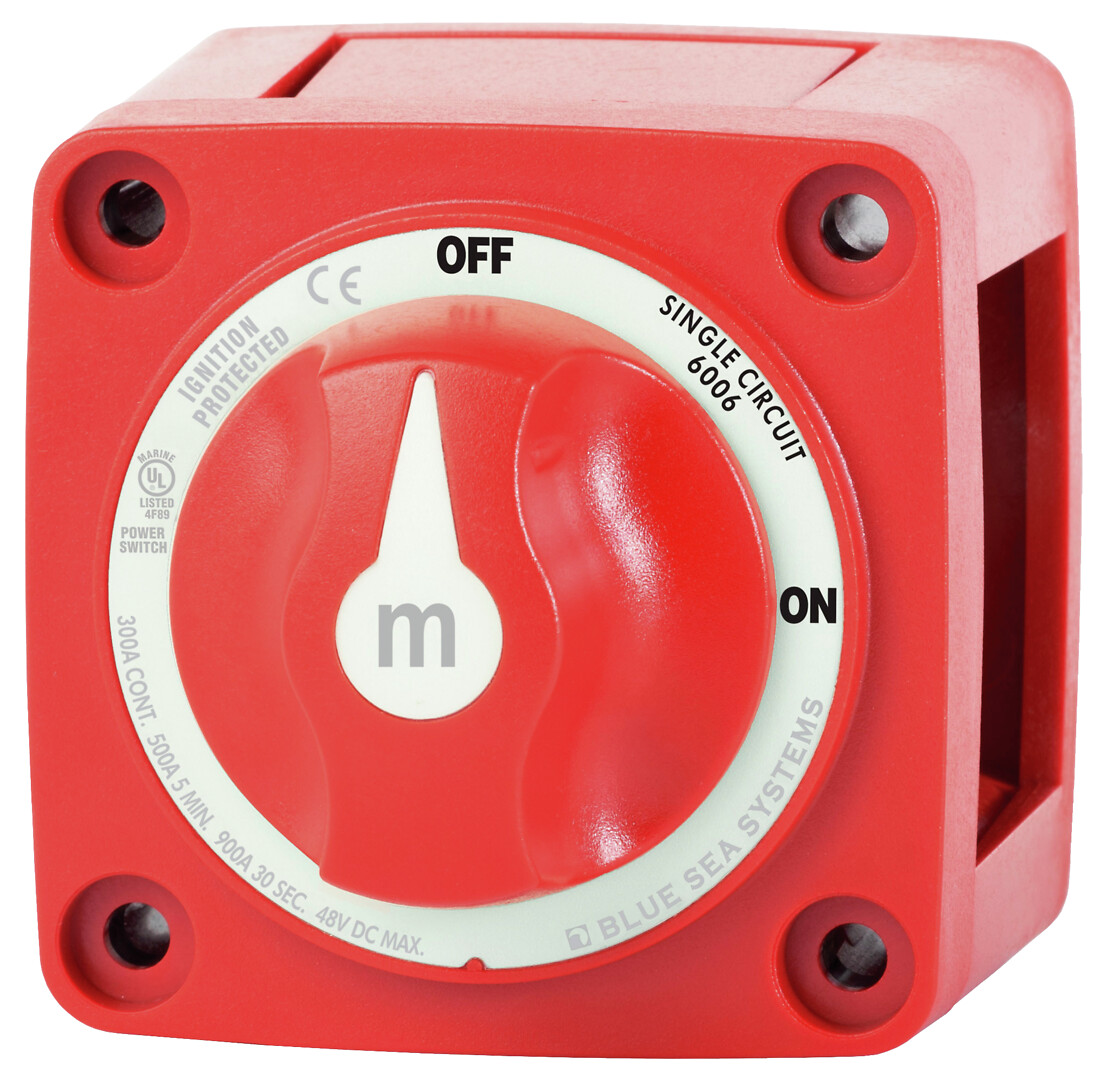

M-SERIES MINI ON-OFF MAIN POWER SWITCH, RED
39,53 €
m-SERIES MINI ON-OFF MAIN SWITCH WITH KNOB – RED
Connecting one battery to one load
• Spark-proof — safe even on boats with gasoline engines

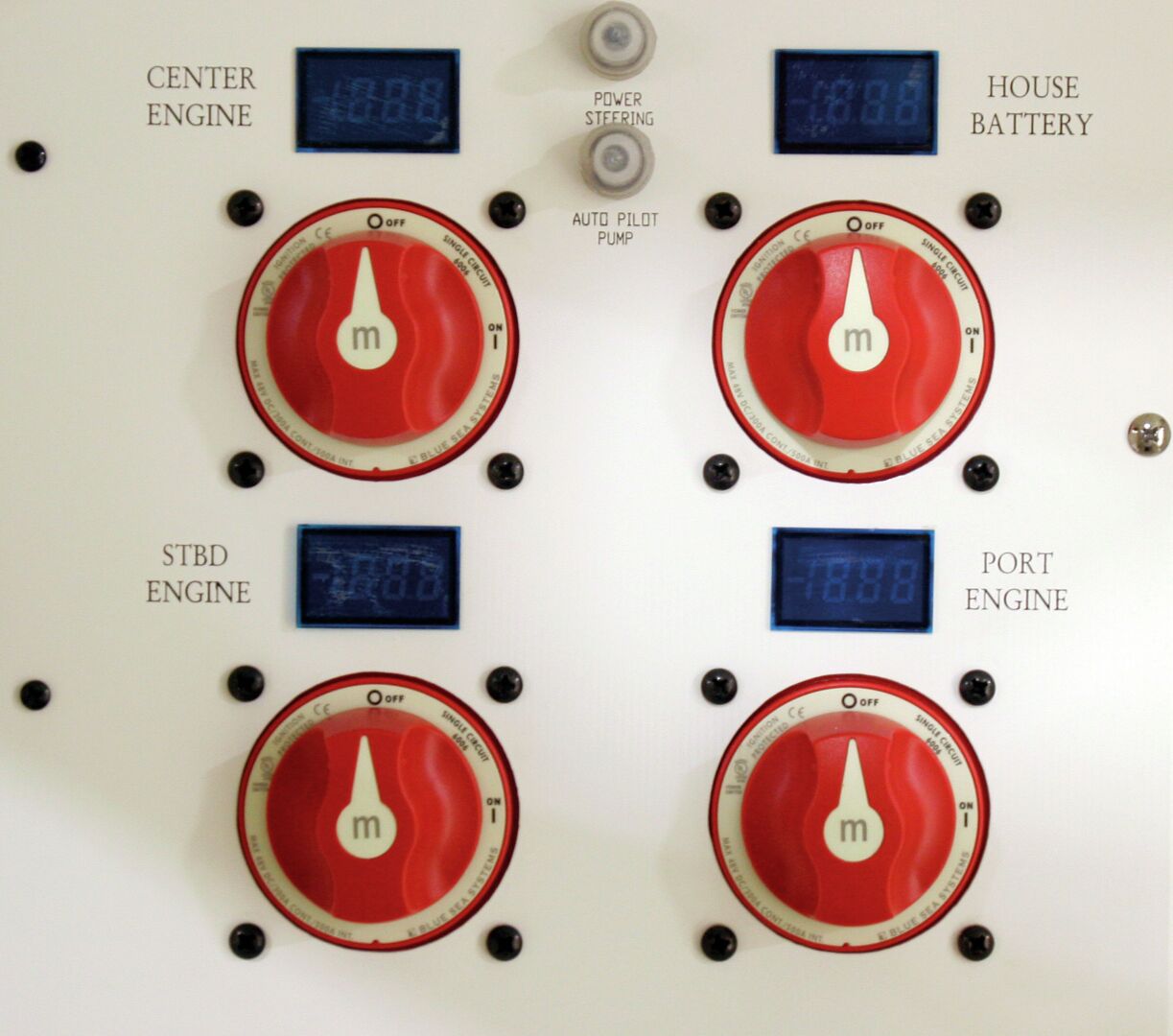

• Housing design allows for surface mounting or installation on the front or back of a panel

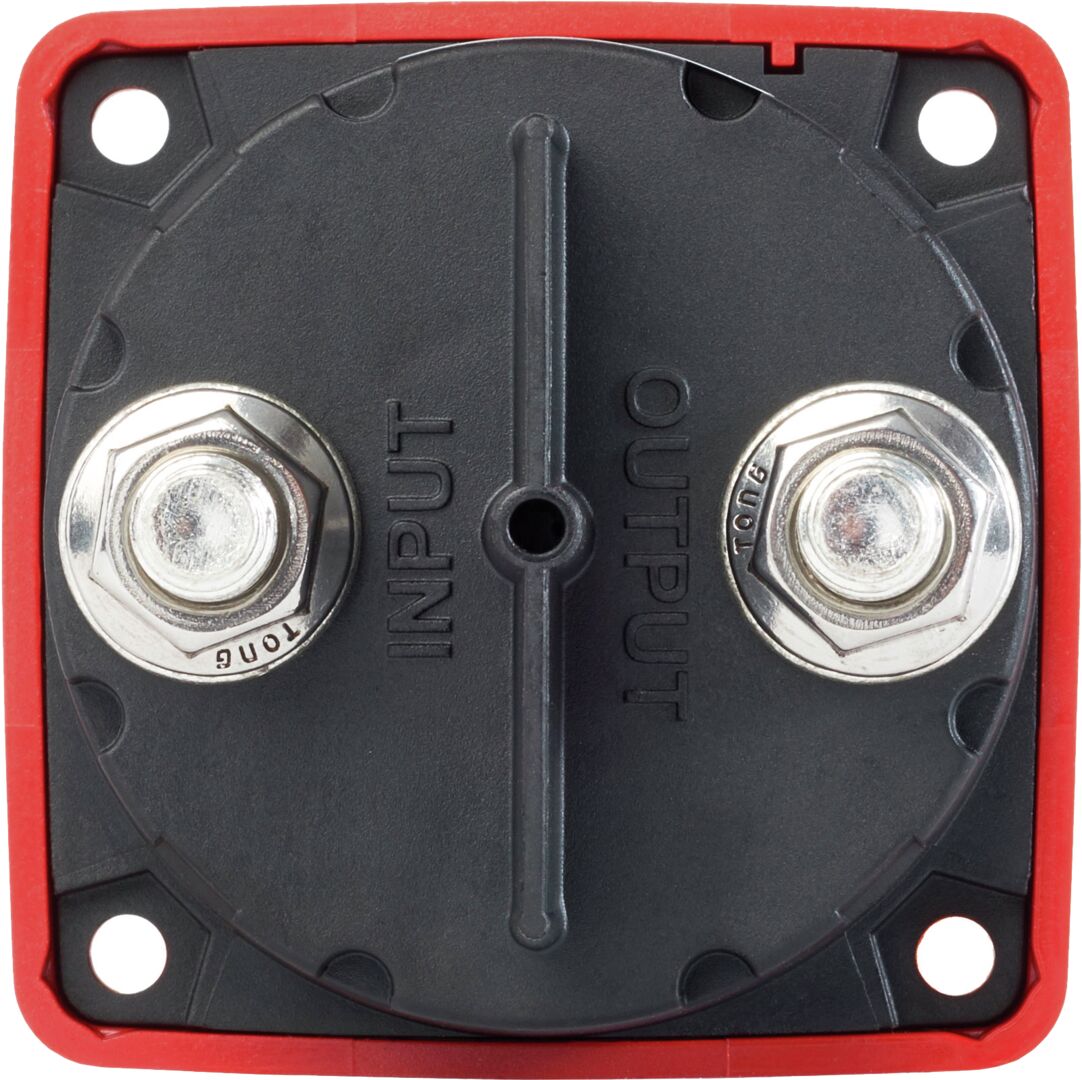

• Insulating cover with snap-on fastening protects the rear contacts
TECHNICAL DATA:
Switch type: Single pole ON-OFF
Color: Red
Number of switch positions: 2
Battery connection: No
Alternator disconnection: No
Maximum voltage: 48V DC
Connection nut torque: 13.56 Nm
Continuous current: 300A
Instantaneous current: 500A (5 min)
Starting current: 900A
Number of battery connections: 1
Cable opening for 107mm² cables: 28.45 mm
Required cable size: 107 mm²
Mounting hole size: suitable for #10 screw
Ring terminal size: M10
Weight: 0.29 kg
| Svars | 0,28 kg |
|---|---|
| Technical name | 6006-BSS |
