MAIN SWITCH SOLENOID, REMOTE AND MANUAL CONTROL
300,82 €

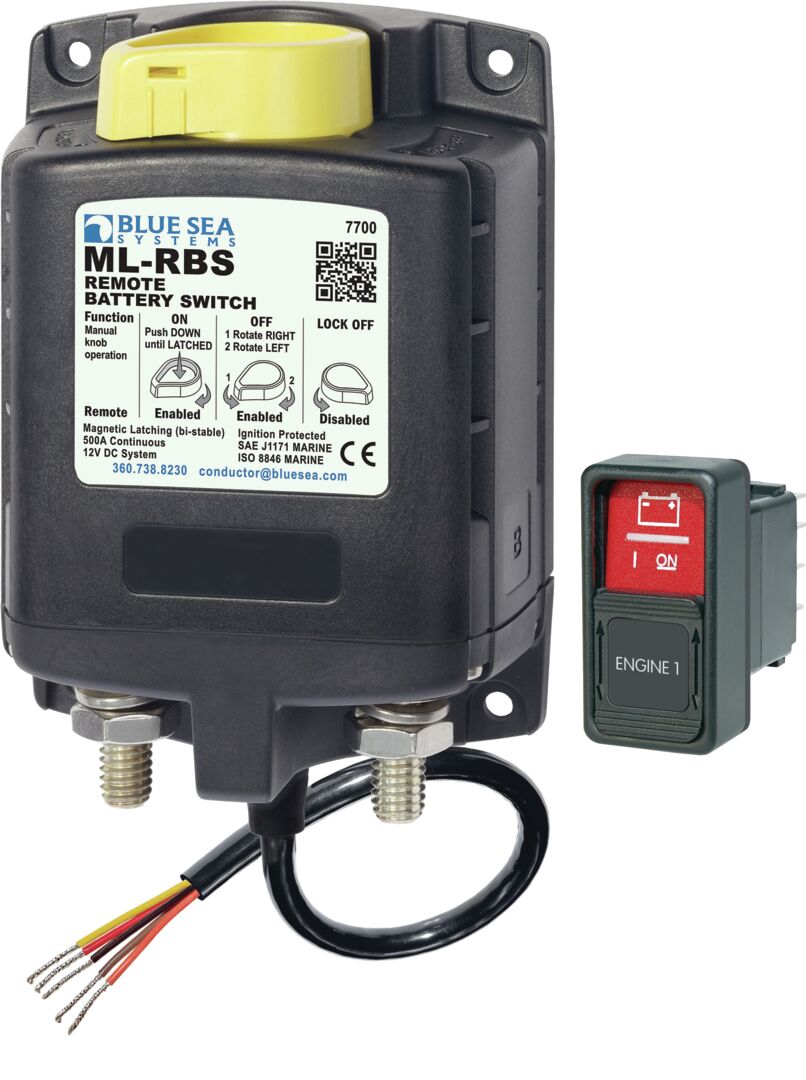

ML-RBS MAIN SWITCH WITH SOLENOID – REMOTE AND MANUAL CONTROL – 12V DC 500A
500 A magnetically operated circuit breaker, high current carrying capacity under load, manual or remote switch operation

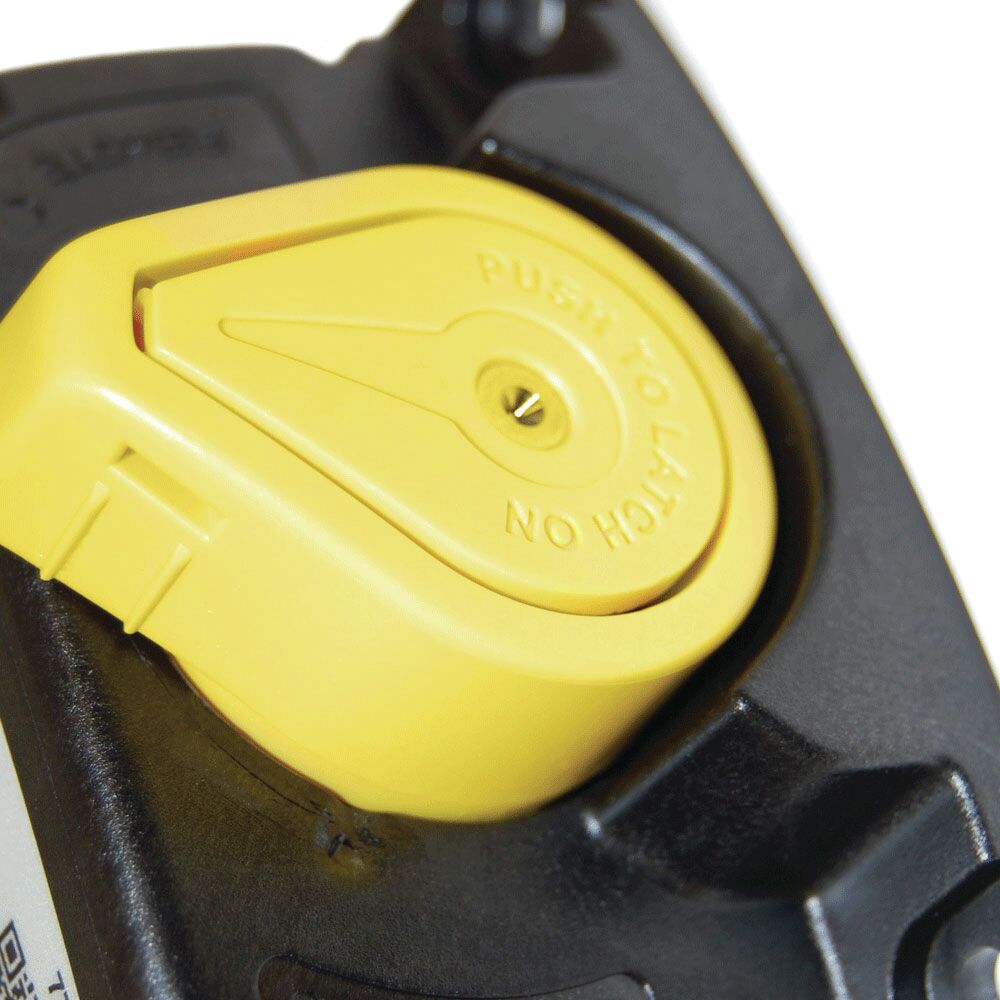

• Manual override switch increases operational safety by enabling opening or closing with power on or off, LOCKED position for maintenance
• LED indicator indicates switch status at remote point (requires additional LED indicator)

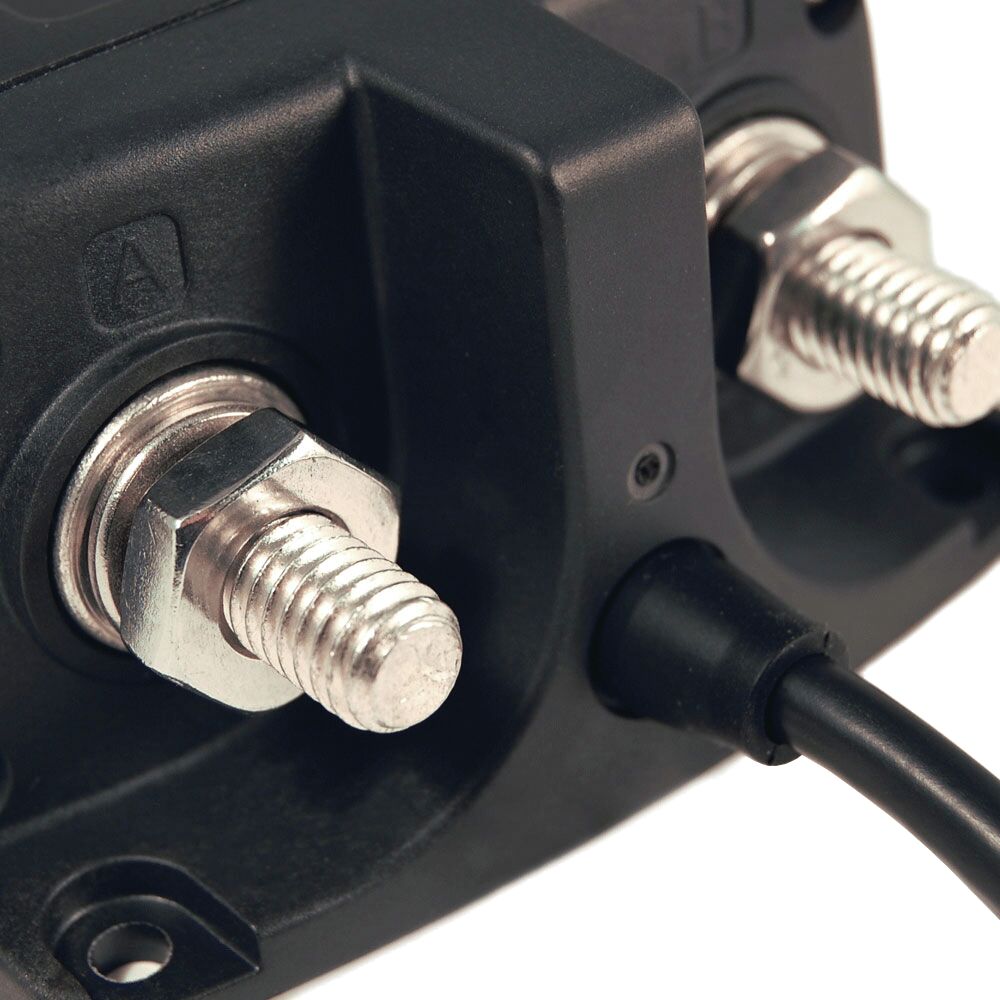

• 3/8′ -16 tinned copper pins for maximum conductivity and corrosion resistance
• 22 mm (7∕ 8′) pin length allows for multiple terminal connections
• Recess for nameplates for easy identification of the switching circuit
• Contacts made of silver alloy ensure excellent reliability for switching on-board loads
TECHNICAL DATA:
Control circuit connection: Tinned conductors
Nominal voltage: 12V DC
Manual control: Yes
Coil operation: Bistable
Mounting screws: #10
Continuous operating current: 0A
Current consumption when changing state: <7A (40 ms)
Terminal pin tightening torque: 15.82 Nm
Control circuit voltage: 10.1 … 16.5V DC
Continuous current consumption: 500A
Instantaneous current consumption: 700A (5 min)
Starting current consumption 30 s: 1450A DC
Minimum operating temperature: -10° C
Maximum operating temperature: 50° C
Cable size: 2x (107mm²)
Current load switching capacity: 300A @ 12V DC
Master switch function: No
Mechanical durability: 100,000 switching cycles
Ring terminal center hole diameter: 29.97 mm
Terminal pin length: 22.23 mm
Terminal pin size: M10
Weight: 0.79 kg
| Svars | 0,95 kg |
|---|---|

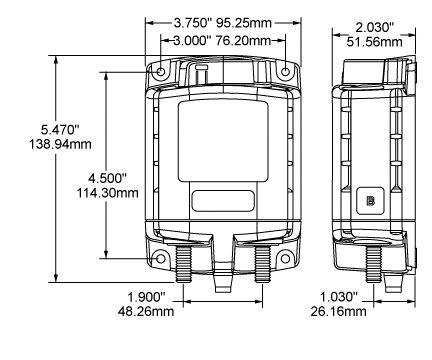

| Dimensijas | 95 × 139 mm |
| Technical name | 7700-BSS BLUE SEA WITH BYPASS SWITCH |
