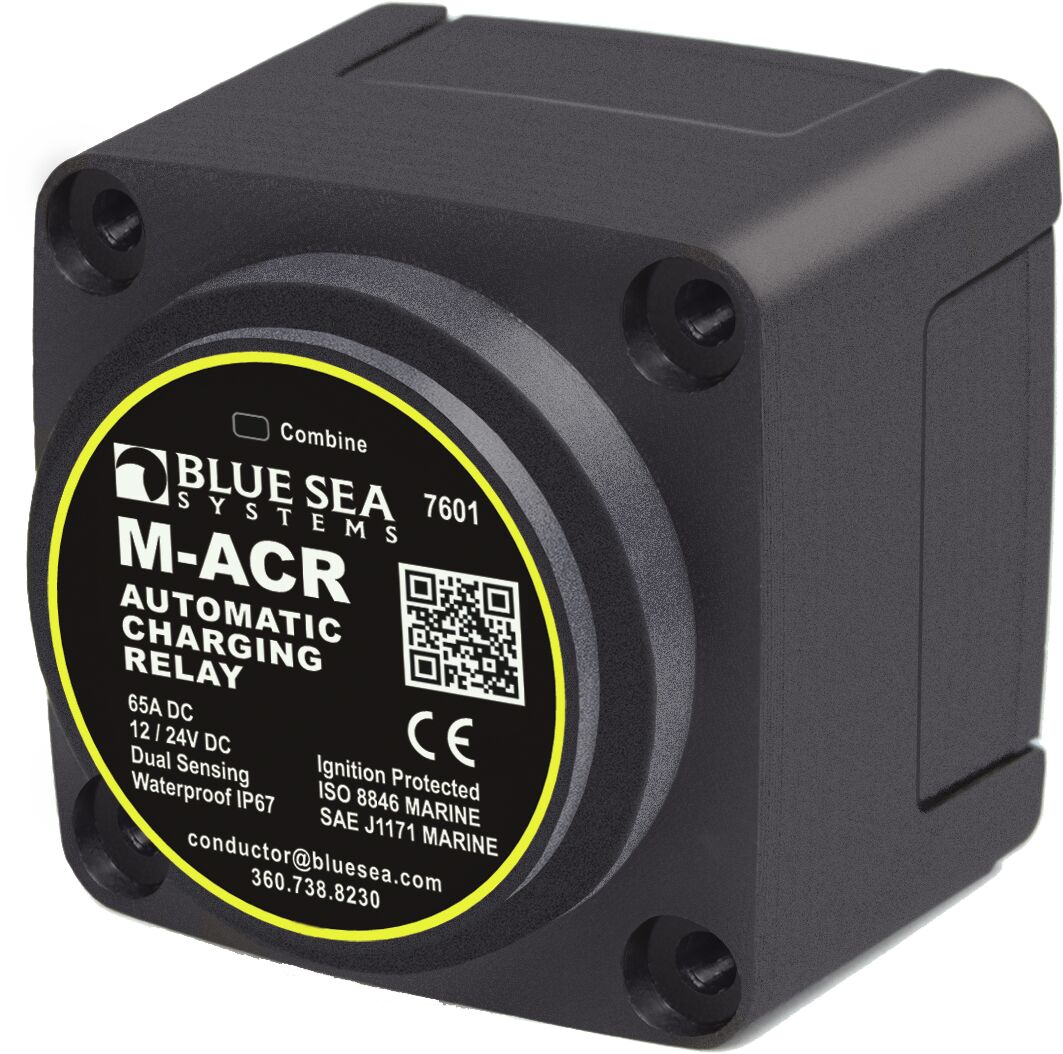

MINI ACR CHARGING RELAY 65A
106,06 €
MINI ACR charging relay for 65A chargers with automatic voltage detection (12 – 24 V).
Automatically connects separate battery banks into one unit when charging is in progress. When charging is no longer in progress and the battery voltage drops, the charging relay automatically separates the jump battery from the starter battery.
Connects the battery banks to each other when the voltage is 13.6 V (27.2 V) for 30 s. or 13.0 V (26.0 V) for 2 min. and separates when 12.35 V (24.7 V) for 10 s. or 12.75 V (25.5 V) for 30 s. Protection IP67.
Start-up isolation protects sensitive electronics by temporarily isolating the internal loads of the motor circuit during motor start-up, protecting the circuit from voltage sags and spikes.
The compact size allows for three mounting options: surface, back or panel. The M-ACR is also available as a module in the Custom 360 panel.
Features:
• Detects charging of two battery banks
• Removable and snap-on insulation cover
• LED indicates ACR status
• 1 ∕4′ x .032′ male quick-connect terminal for ground
• 7∕ 16′ (11 mm) pin length allows for multiple cable terminals
• Waterproof – IP67 enclosure withstands momentary immersion
| Svars | 0,1 kg |
|---|---|
| Technical name | 7601-BSS BLUE SEA |
