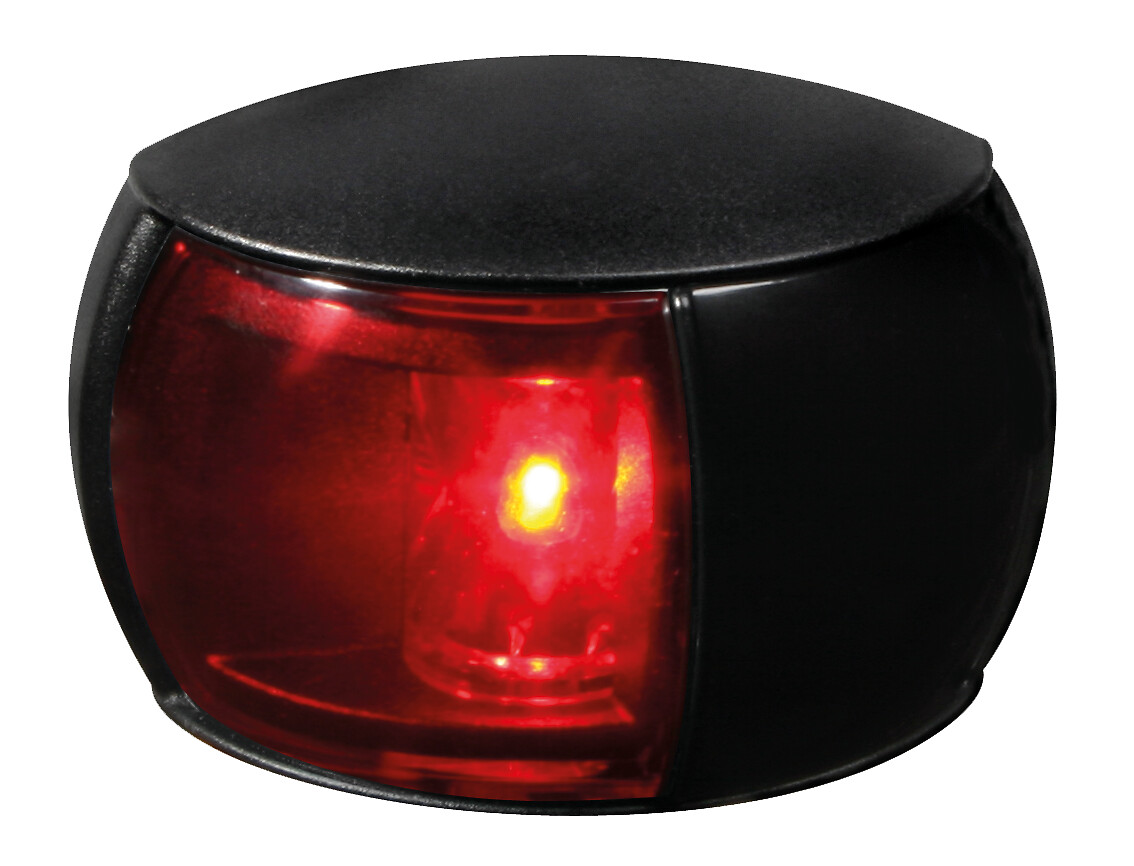

NAVILED RED, BLACK SHELL

LOW POWER CONSUMPTION
The power consumption of NaviLED lights is less than 10% of that of a traditional incandescent navigation light. The port and starboard lights consume less than 2 W in total!

NO BULBS, NO MAINTENANCE, LONG LIFE
Hella Marine LED technology – no filaments. NaviLED lights are extremely durable and reliable, and safe even in the most demanding conditions.

MULTIVOLT 9 – 33 VDC
Advanced control electronics ensure reliable lighting and protection despite wide battery voltage fluctuations or low battery voltage.

SAFE AND HIGHLY VISIBLE
Hella Marine optics deliver 100% correct light output and excellent visibility compared to bulb-based navigation lights.

FULLY ENCLOSED SEALED CONSTRUCTION – IP67
The NaviLED light forms a fully sealed unit. Shockproof housings ensure excellent resistance to waves and impacts.

PRE-CABLED WITH MARINE-GRADE CABLE
Two-conductor (2.5 m) shielded marine-grade cable ensures a completely watertight installation.

TECHNICAL SPECIFICATIONS
Material: UV-protected, impact-resistant acrylic lens and durable housing
Minimum visibility: 2 mph (yachts and motorboats)
Cable: Pre-wired with marine-grade cable
Operating voltage: Multivolt 9 – 33 VDC
Surge protection: Voltage spikes up to +500 V. Reverse polarity max. -700 V
Power consumption: Port, Starboard – Less than 2 W combined.
Protection class: IP67 – fully sealed
Approvals: BSH, IMO Col Reg 72, USCG, ABYC A-16, Maritime NZ
