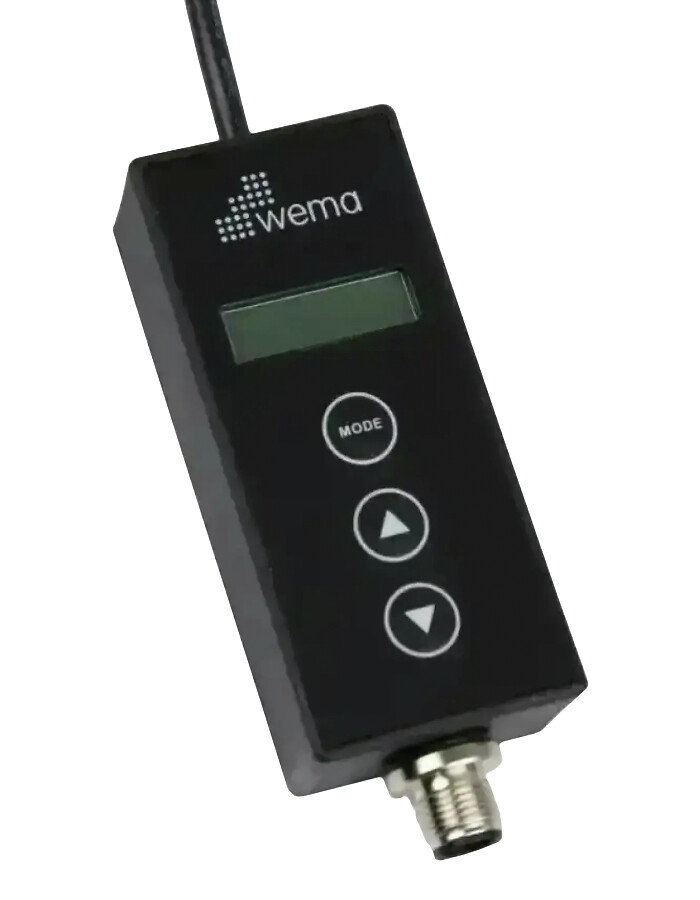

NMEA2000 CONVERTER 6-CHANNEL
191,87 €
The 6-channel analog-to-digital signal converter (ASC-6) designed for NMEA2000 networks is a versatile device that enables seamless integration of Wema resistance sensors with modern marine electronics. This advanced signal converter converts analog signals to NMEA2000 protocol, enabling the integration of traditional analog sensors into modern digital networks.
Features:
The ASC-6 includes six analog input channels, five of which are programmable and one is dedicated to the tachometer. This configuration allows for simultaneous monitoring of multiple sensors, making it an excellent solution for a variety of boating needs.
The transducer supports the following functions and sensors:
• Tachometer (one dedicated channel)
• Fuel tank (compatible with 0–190, 10–180, 240–30 ohm ranges or user-defined settings)
• Water tank (compatible with 0–190, 10–180, 240–30 ohm ranges or user-defined settings)
• Septic tank (compatible with 0–190, 10–180, 240–30 ohm ranges or user-defined settings)
• Engine temperature (0–120 °C range)
• Oil temperature (0–150 °C range)
• Oil pressure (0–5 and 0–10 bar ranges)
• Supercharger pressure (0–2 bar range)
• Rudder angle
• Trim angle
| Svars | 0,12 kg |
|---|---|
| Technical name | ASC-6 220020 |
