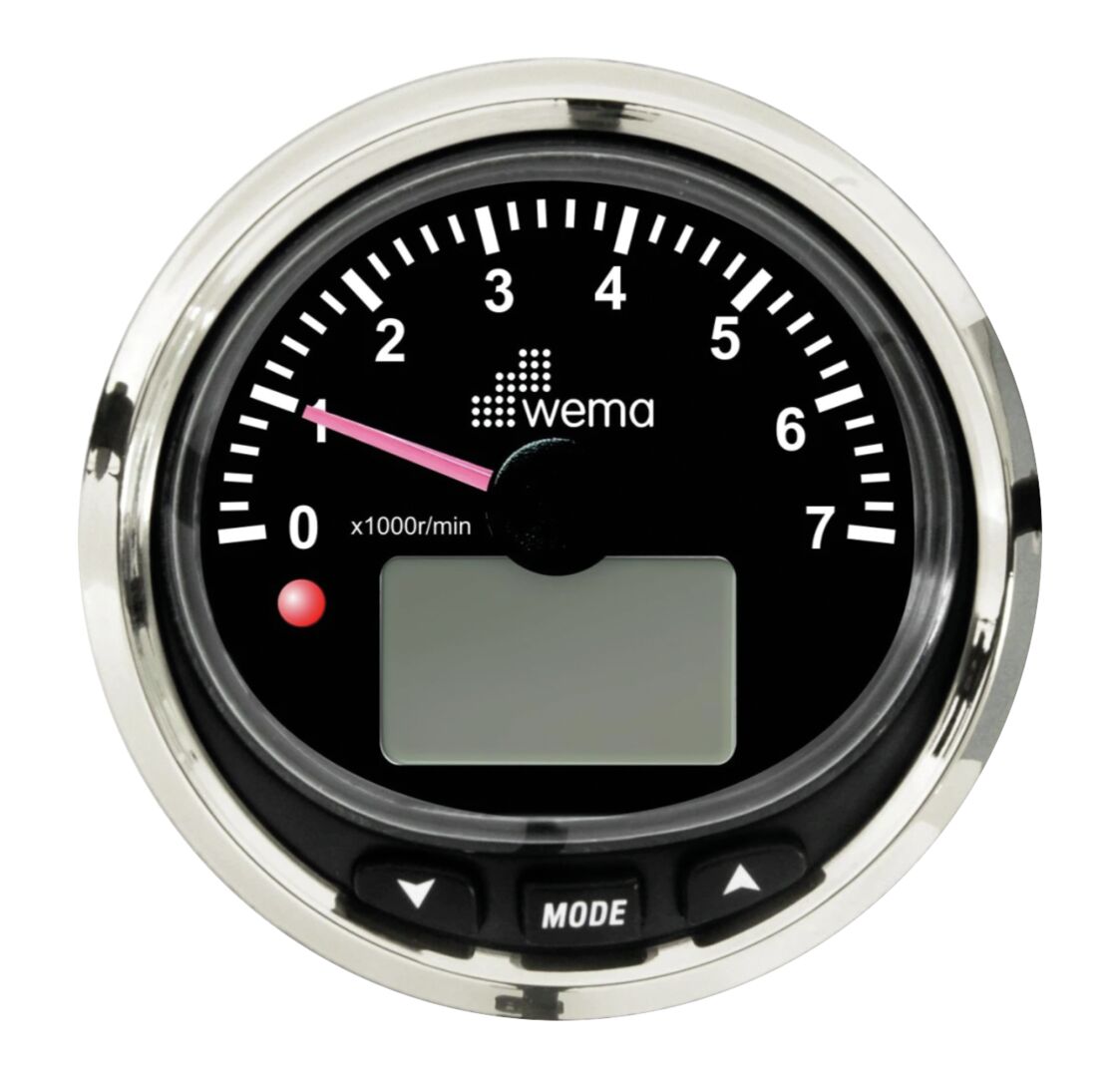

NMEA2000 TACHOMETER, BLACK

TECHNICAL DATA:
• Model: Silver-edged meter, stainless steel, slim frame, acid-resistant

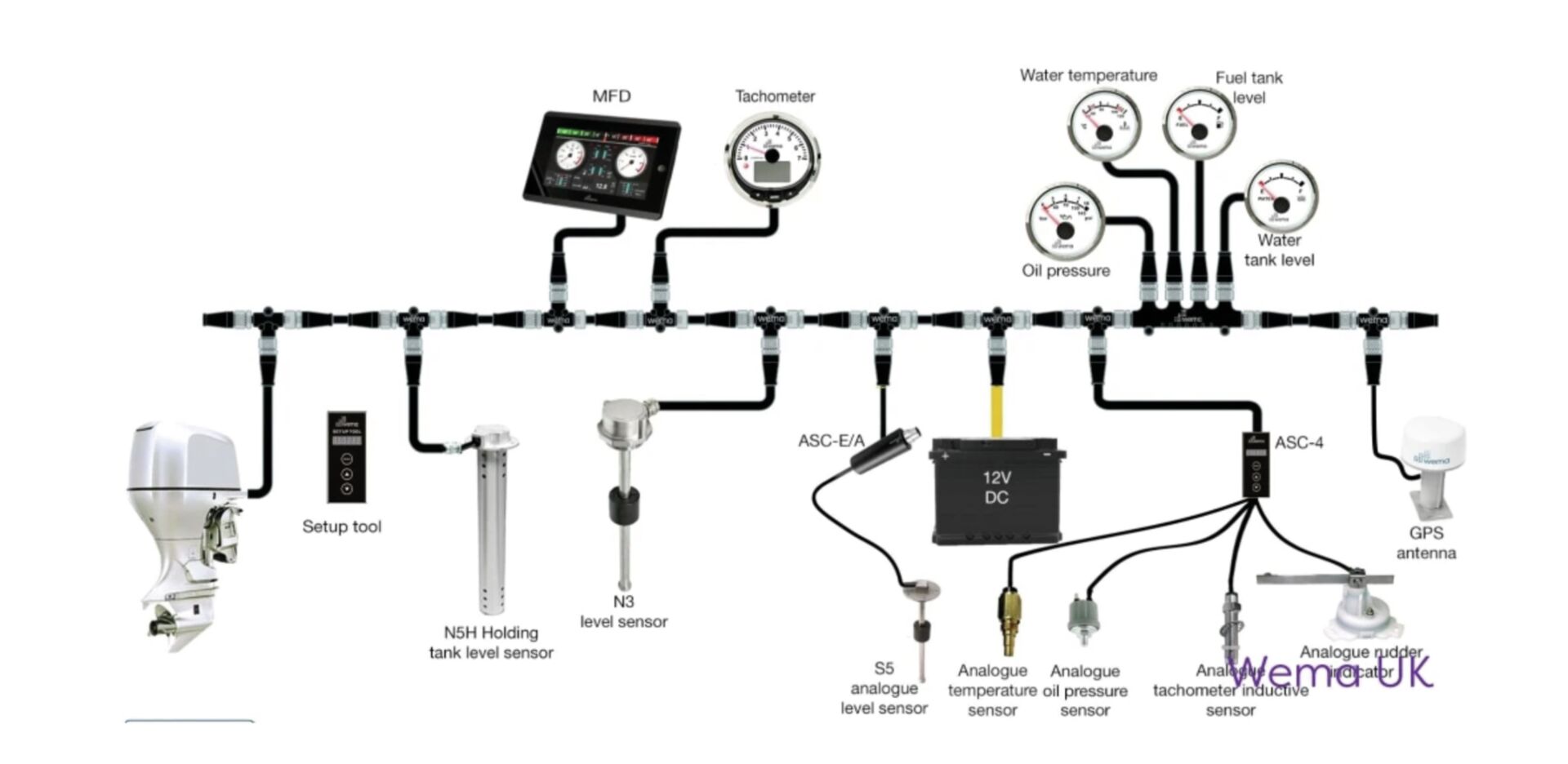

• Output: NMEA2000
• Cable and connector: 1,000 mm +/-30 mm with NMEA2000 Micro male connector
• Operating range: 7,000 rpm
• Blue backlight
• Operating temperature -25 – +70 °C, waterproof, IP67
• Ozone, UV and saltwater resistant, fully corrosion-resistant
• Power supply: 12 V
• Current consumption: 140 mA
• Drill hole: 85 mm
• External dimension: 97 mm
• Depth: 60 mm

TACHOMETER DISPLAY:
• Engine RPM
• Engine Trim/Tilt
• Fuel Flow (LPH or GPH)
• Fuel Level
• Engine Temperature (Celsius or Fahrenheit) Oil Pressure (BAR or PSI)
• Total Engine Hours
• Battery Voltage
• Alarms
• Engine Check
• High Temperature
• Low Oil Pressure
• Charge Indicator
• Maintenance required
• Low oil level (in the oil tank)
