OCEAN HATCH, SIZE 77

• Friction hinges hold the lid open in any position up to 95°
• Corrosion-resistant anodized aluminum frame
• Suitable for CE Zone 2 (roof, lid and transom)

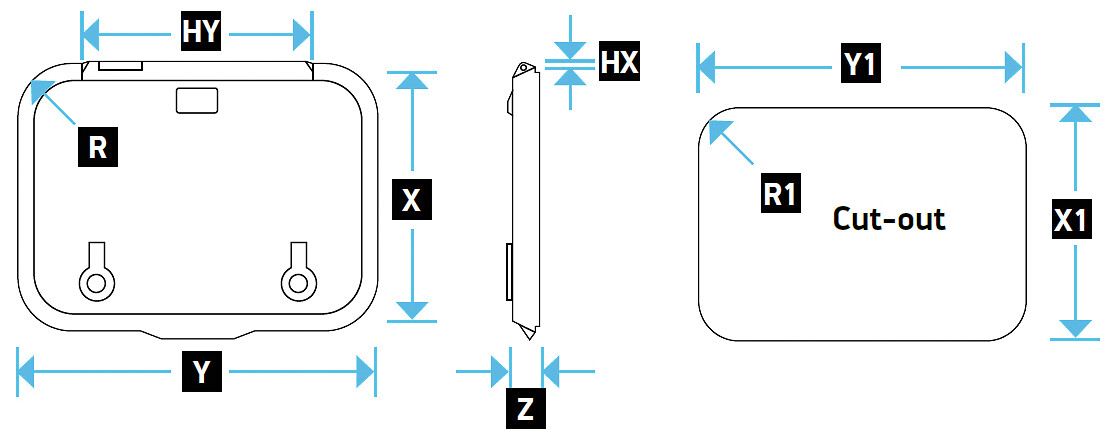

External dimensions: width 767 mm (Y), height 767 mm (X), depth 43 mm (Z), corner radius 76 mm (R). Hinge width 4 mm (HX), hinge length 548 mm (HY). Dimensions of the cut-out opening: width 694 mm (Y1), height 694 mm (X1), corner radius 40 mm (R1). Acrylic window thickness 12 mm, color smoke gray.
