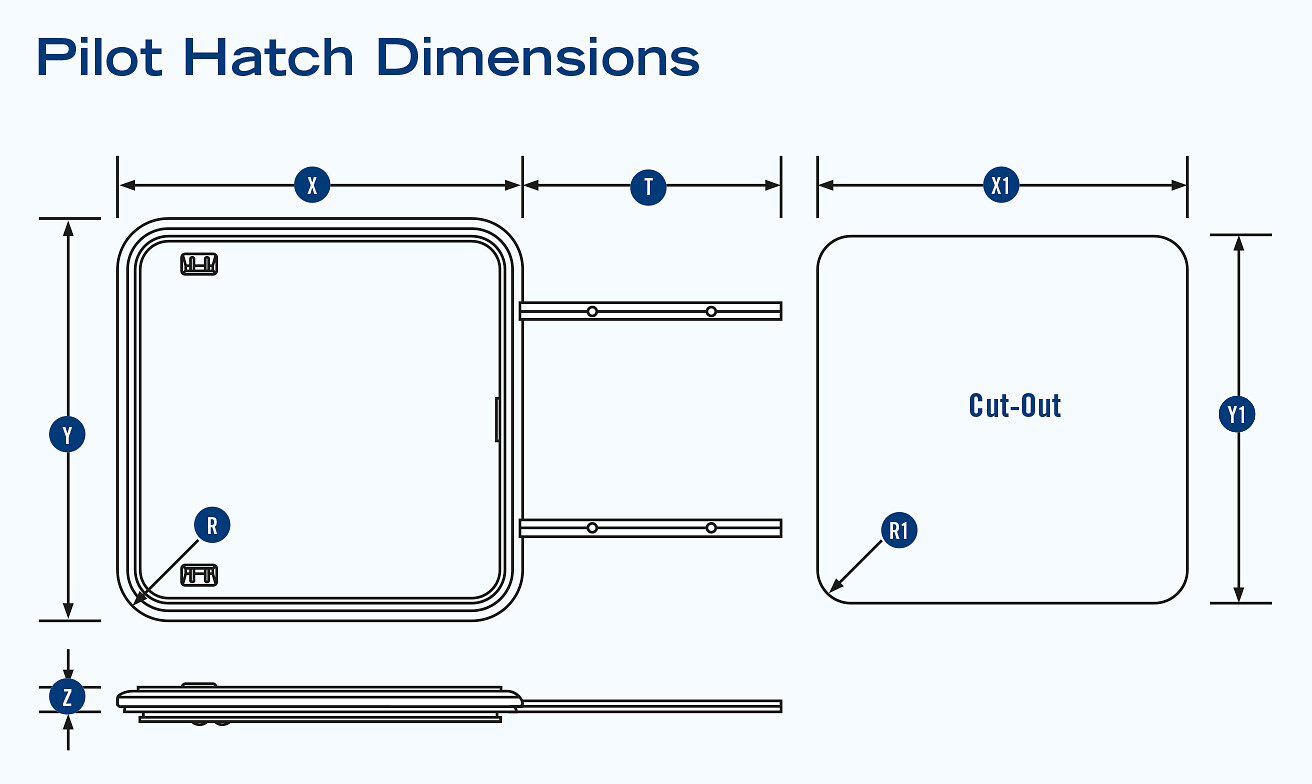

External dimensions: width 780 mm (Y), height 730 mm (X), depth 29 mm (Z), corner radius 73 mm (R). Dimensions of the cut opening (depending on the seal material): width 708 mm (Y1), height 654 mm (X1), corner radius 42.5 mm (R1). Length of the rails 515 mm.
PILOT SLIDING DOOR, SIZE N1

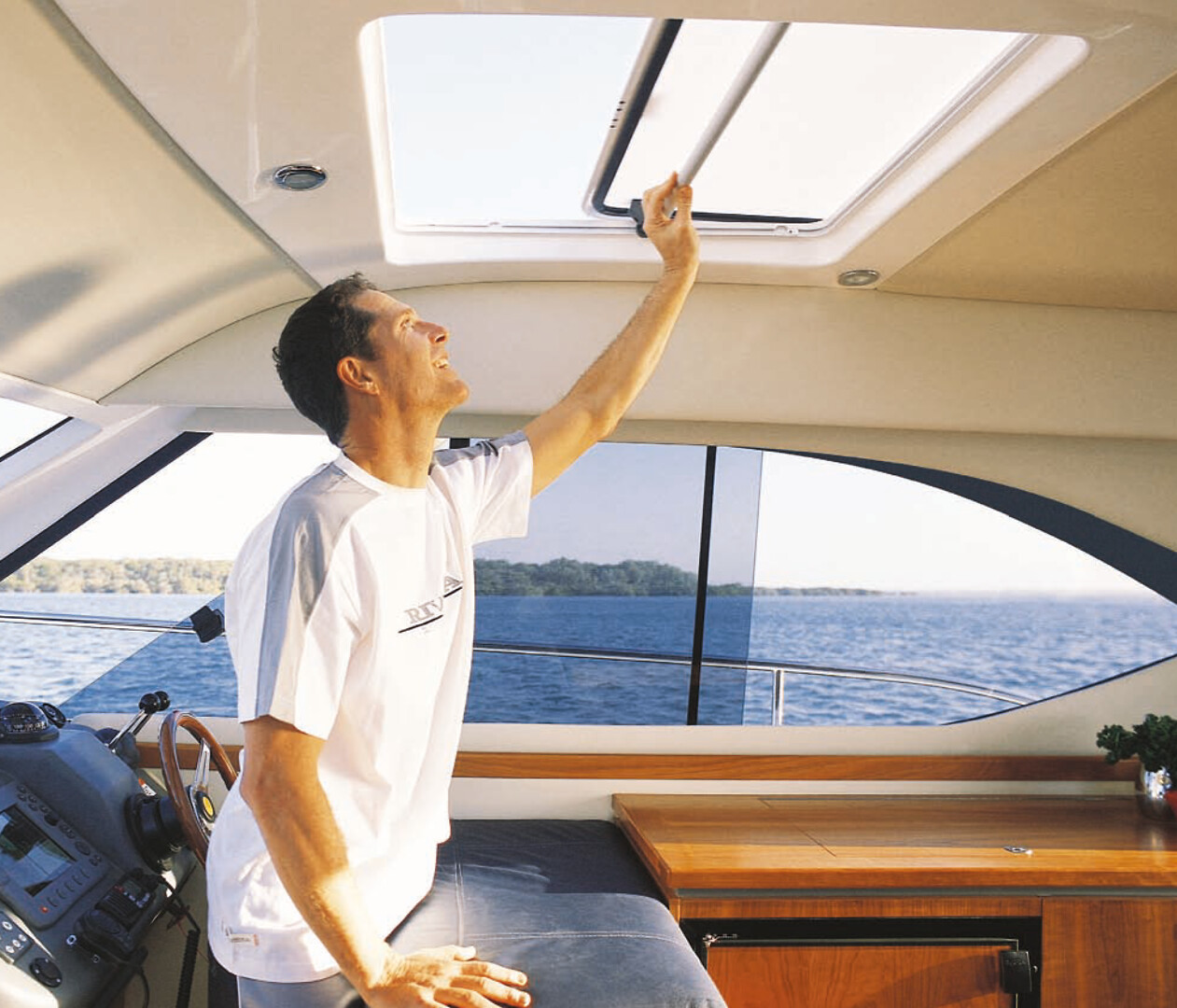

Pilot sliding hatch. An excellent roof hatch solution for a motorboat. The hatch slides on rails, can be locked in the open/closed position. Locked with a long latch from the inside. The hatch should be installed on a flat surface, maximum tolerance +/- 1 mm. The hatch cannot be opened from the outside. Intended for use only on the cockpit or cabin roof, not suitable for use on deck. Smoke grey glass.
