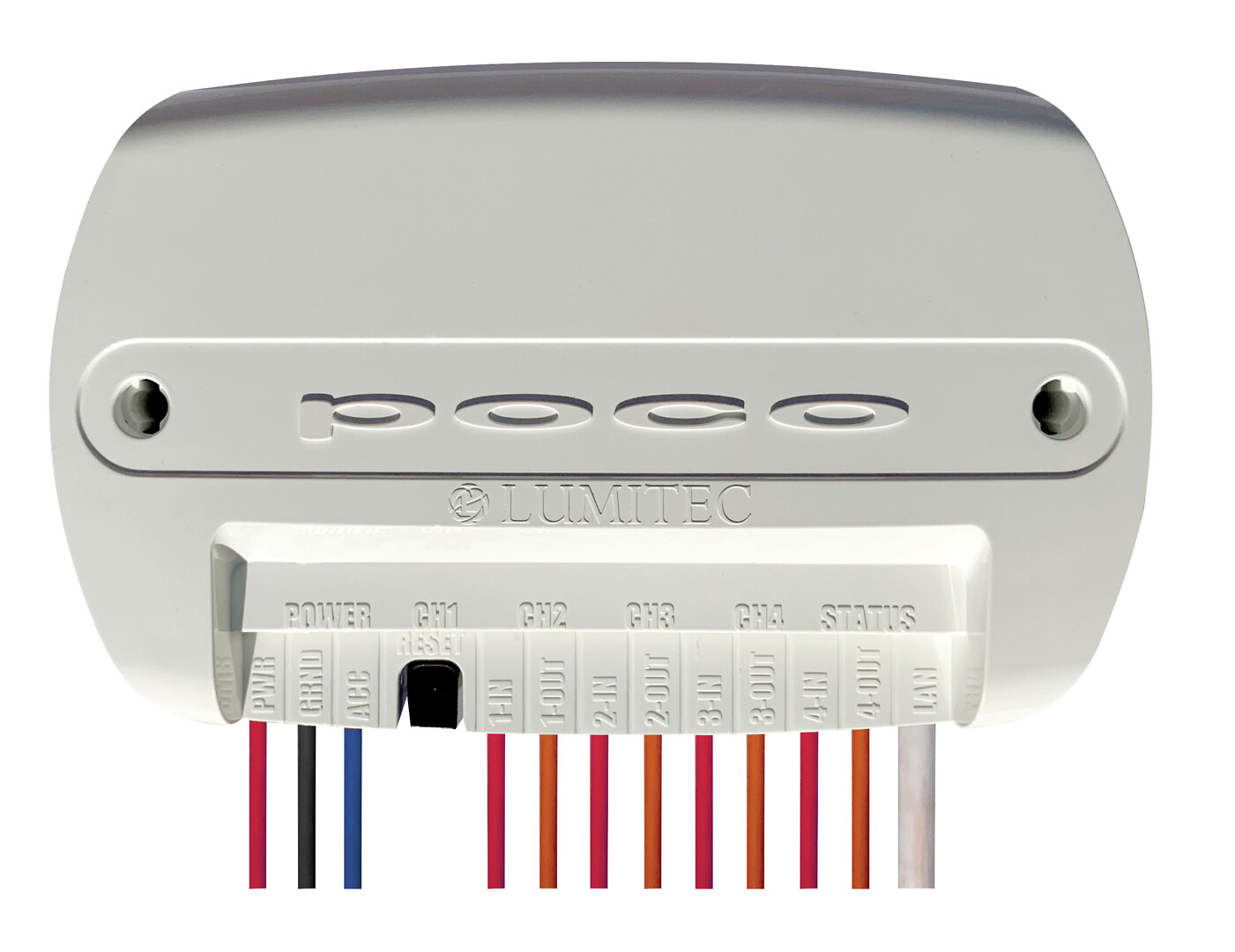

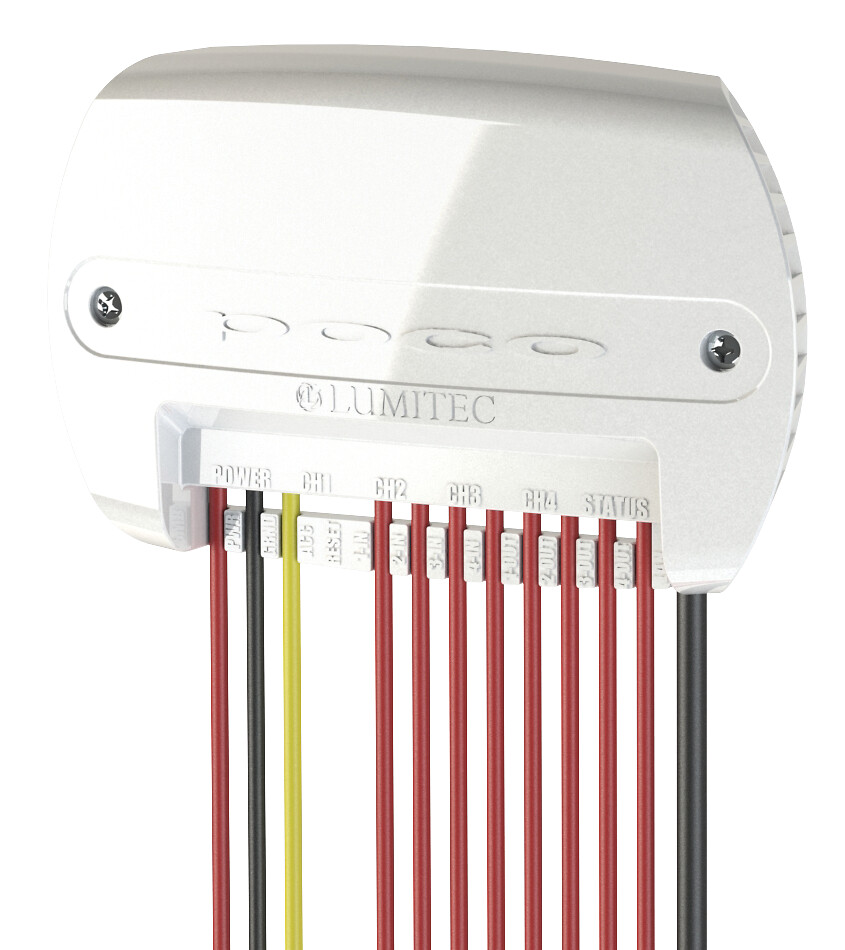

POCO 3 DIGITAL CONTROL MODULE

• The Poco 3 control module is suitable for new installations or retrofits and is both compact and fully sealed.
• By replacing physical circuits, wires and switches, installers can offer their customers advanced controls previously only available on high-end boats.
• When combined with Lumitec lighting with PLI technology, the Poco 3 offers more functionality, such as precise color and brightness selection, custom lighting settings and multiple “virtual circuits” on a single channel. This allows for additional lights and stylish lighting solutions without the need for additional cables.
• The Poco 3 is compatible with the Pico S8 module, which allows the Poco virtual switch commands to be assigned to physical mechanical switches (up to 8). This way you can leave the multifunction device on a separate screen or even turn it off when the physical switch activates a virtual switch command via the Poco system (requires Pico S8 module).

Technical specifications:
• 10 – 30 V DC
• Max. 10A/channel
• 4 channels
• IP67
• CE certified
• Optimum temperature -35 – + 55 °C
• Surface finish/body: white
• PLI enabled (Power Line Instruction)
• TTP (Time Toggled Protocol)
