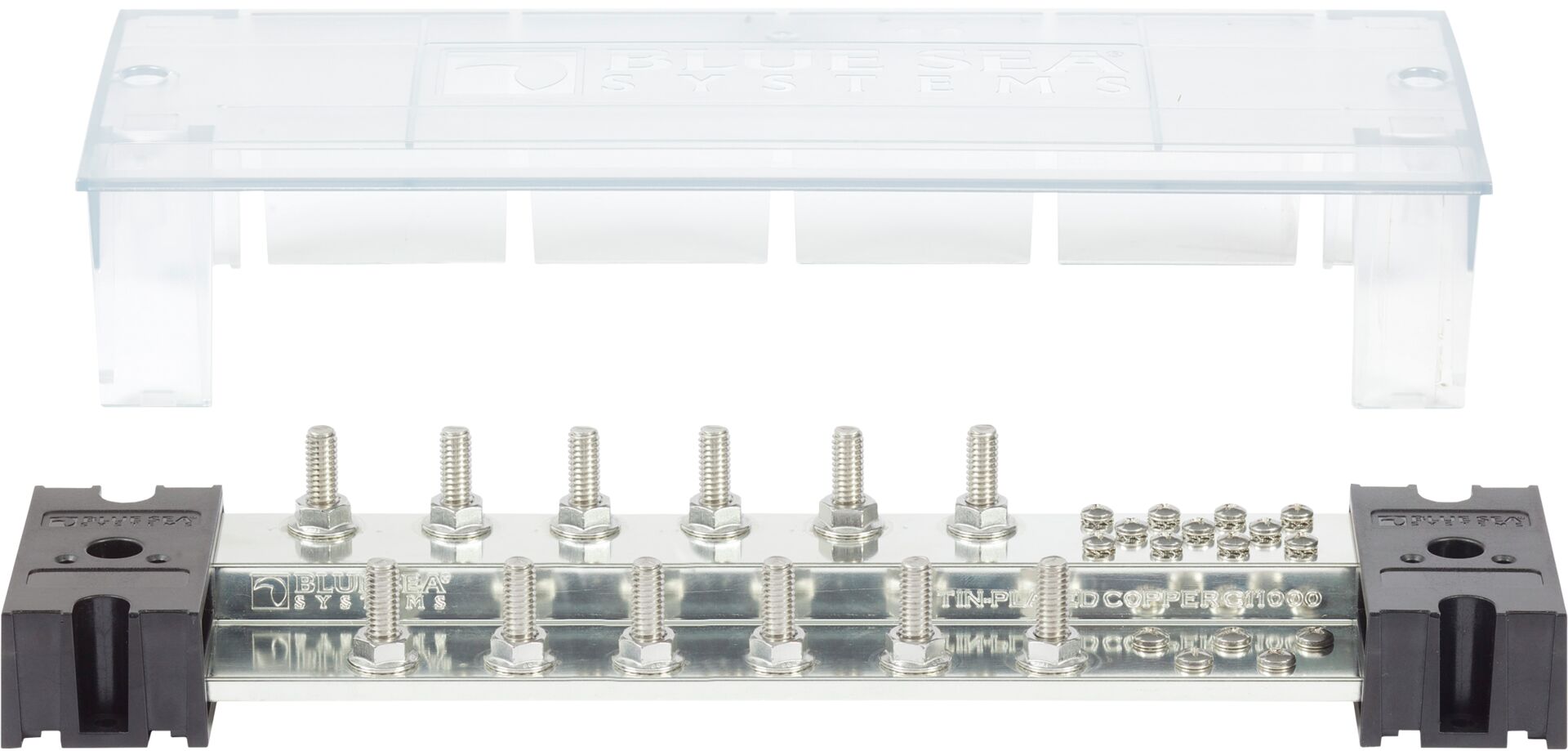

POWERBAR 1000 12X5/16 STUD NO CVR

• 1000 A busbar for large wiring systems
• Tinned copper parts suitable for electrical applications for maximum current conductivity
• Stepped busbar profile allows two different levels for conductors, which doubles the wire bundle capacity compared to traditional busbar profiles
• Busbar and fuse block steps correspond to the dimensions of conventional fuse blocks, which allows the installation of multiple fuse blocks, eliminating the need for unnecessary connection cables
• 1-piece serrated flange nuts ensure correct and secure connection
• RST screws (size 8-32) with lock washers for fastening smaller conductors
• The busbar can be cut to a shorter length if installation space is limited
• Bidirectional busbar end caps allow for extension of rails
• Snap-on insulation covers meet ABYC and USCG standards and include a recess for a marking label

SPECIFICATIONS:
Maximum voltage: 150 V
Number of terminal pins: 12
Continuous current rating: 1000 A
Rail material: Tinned C11000 copper
Mounting holes: M5 (#10) screws
Terminal pin size: 5/16′ – 18
