PUMP CONTROL UNIT

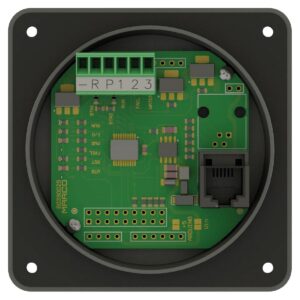

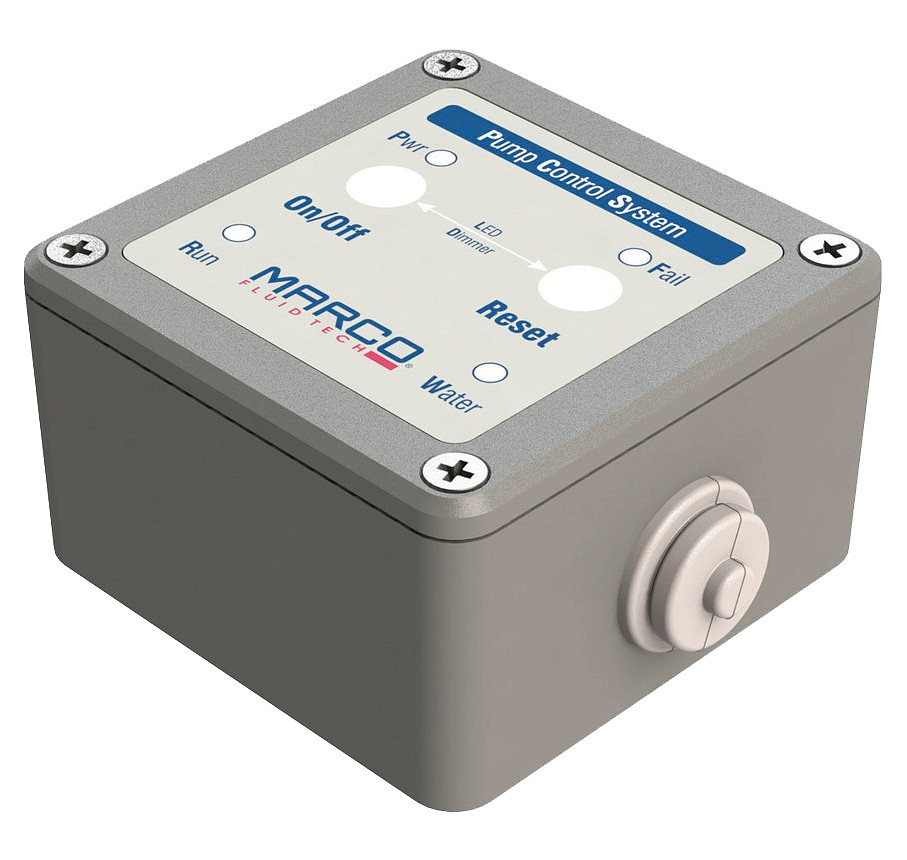

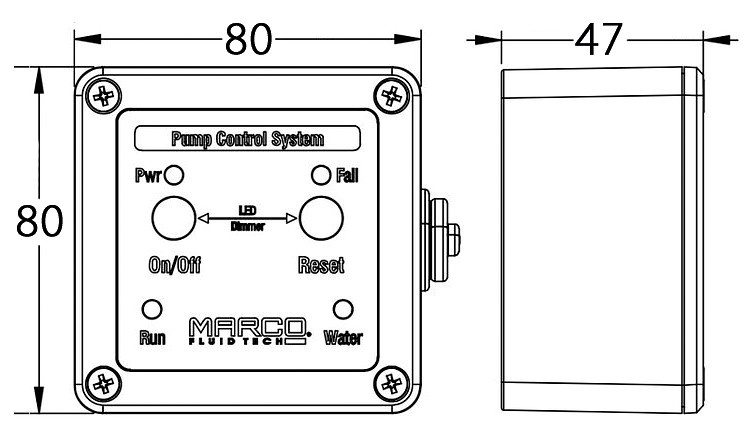

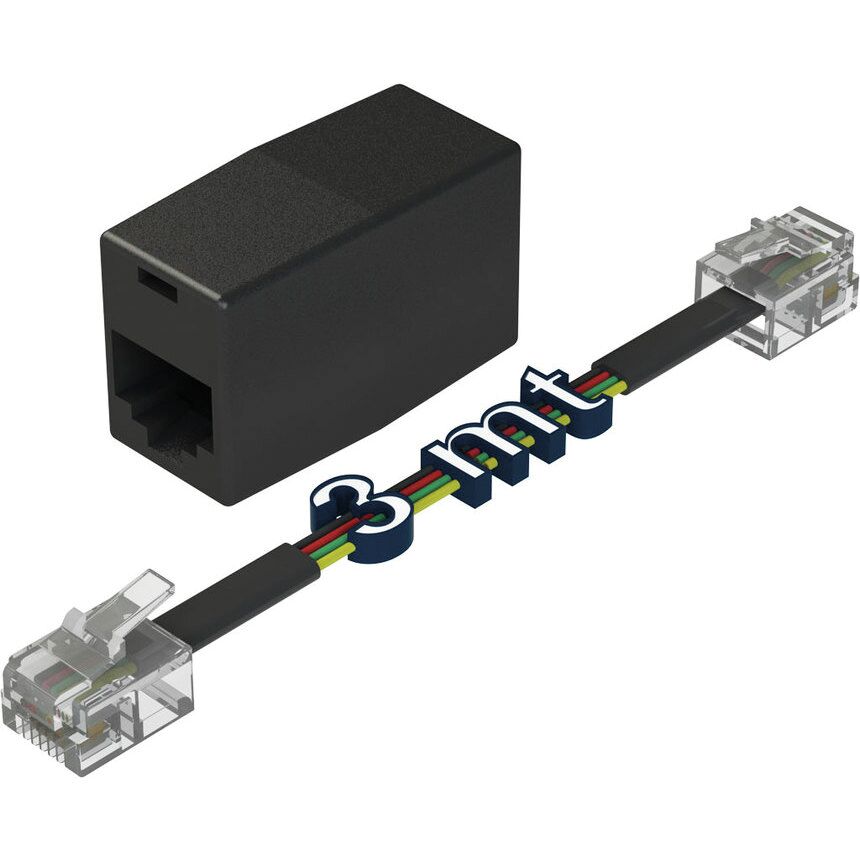

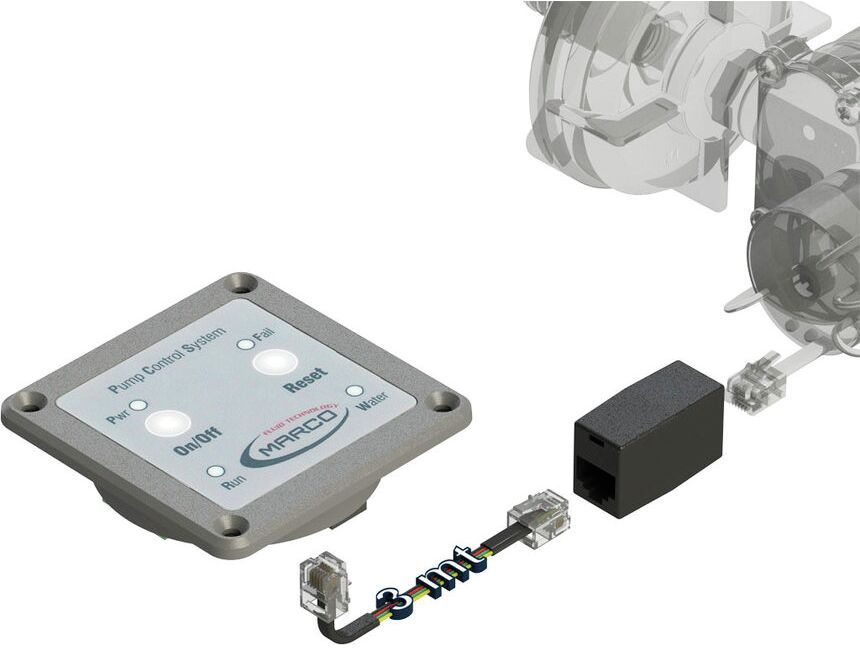

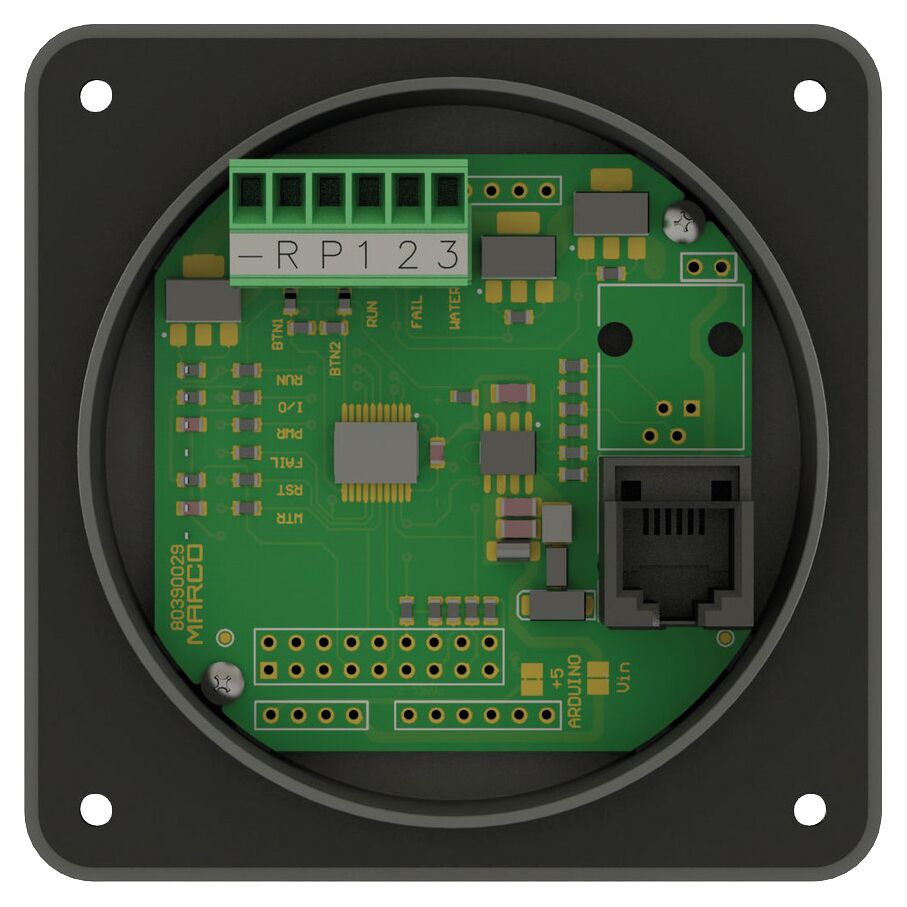

The control panel for electric pumps allows you to monitor and adjust the pump’s operation remotely. In fact, you can see if the pump is on and if there is any liquid left to be transferred. In addition, you can reset the alarm and restart the system without turning off the power when the pump stops due to running out of liquid or due to overload. Finally, you can turn the pump on or off by pressing a button. The panel can be recessed into a 70 mm round hole, or installed by fixing it to the housing provided with two screws. Operate the pump by connecting the 3 m cable provided or another 4-wire telephone cable with a 2-pin RJ11 / 6 connector. On the back there is a terminal block where you can copy the panel’s buttons and LEDs to an external circuit: this way you can control the functions from the dashboard or from a third-party device.
